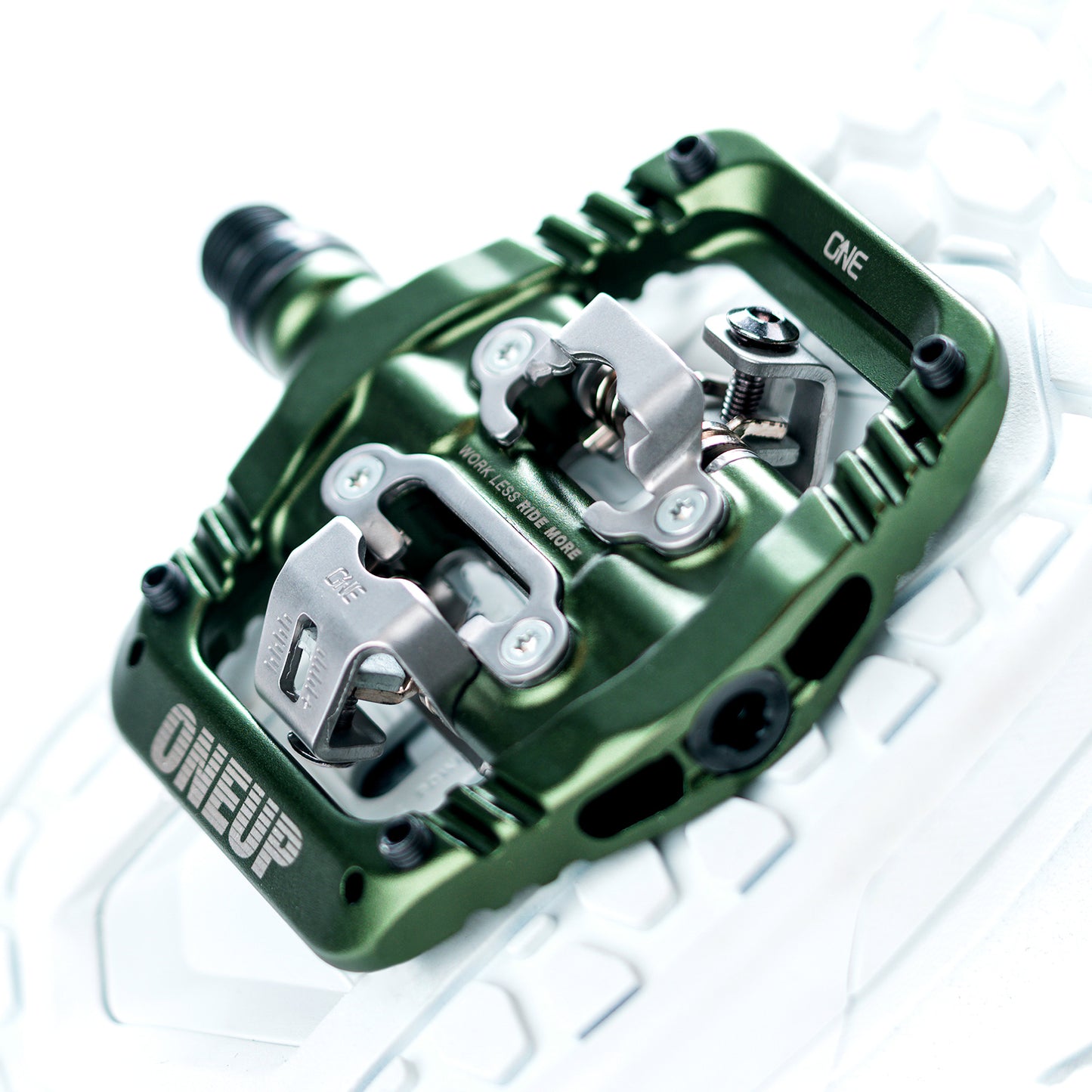

OneUp Components Clip Pedals - Dark Green

At only 26.8mm, OneUp Components Clip Pedals are the thinnest mountain bike clip pedals in the world. The thin, large platform has pins that actually touch your shoe and a precise cleat engagement that doesn't sacrifice power or ease of release. Get a more connected feel, with more support and less pedal strikes.

• Weight: 410g with pins (4 pins per side)
• Thickness: 14.4mm (body), 26.8mm (cage)
• Size: 80mm x 90mm (W x L)
• Stance width: 57.5mm (centre of clip to outside of crank face)
• Float: 5° (12° release angle)
• Cleats: SPD Compatible (includes 1mm cleat spacers for shoe tuning)
• Bearing configuration: Inboard Igus Bushing and 3x outboard sealed cartridge bearings
• Axle: Chromoly Steel with Black ED coating
• Pins: Hollow threaded pins (self cleaning hex through hole)
• Colours: Black, Red, Green, Blue, Orange, Purple, Gold, Bronze
• Suitable for: XC, DH, Trail
• Compatible with Shimano Cleats

What's in the box?

• 2x Clip Pedals (1x Left, 1x Right)
• 4x Installed hollow threaded pins per side (16x pins total)
• 2x OneUp Cleats with included hardware
• 2x Cleat Spacers
• 1x Pedal Bearing Nut Tool

Things you should know

• Comes with SPD™ compatible cleats and 1mm cleat spacers for shoe fit tuning.
• Hollow, removable traction pins offer fine-tuning of grip and support, with a mud-clearing design that can be installed or removed from either side of the pedal.
• Included Pedal Bearing Nut Tool allows you to easily disassemble, clean, and grease your axle system.
• Custom, Stainless Steel, SPD™ Compatible Binding offers a locked-in feel with no unwanted play, and works with OneUp's own cleats and Shimano SPD™ cleats.
• 5 degrees of float and 12 degree release angle.
• 1 year manufacturer warranty.
• Wide-range release tension adjustability is secure enough for racers, yet forgiving enough for beginners, with an indicator to easily match the tension on all four bindings.
