Description

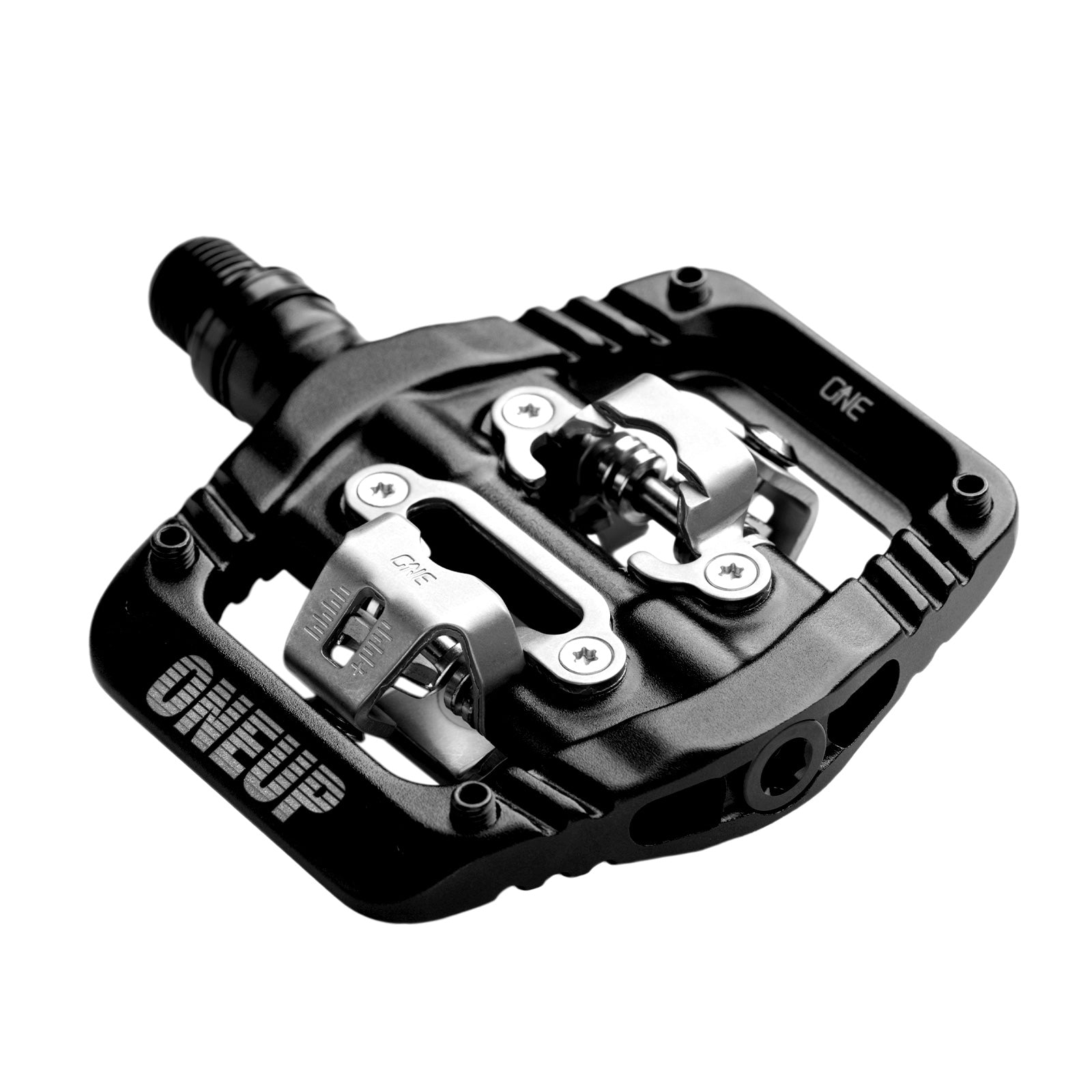

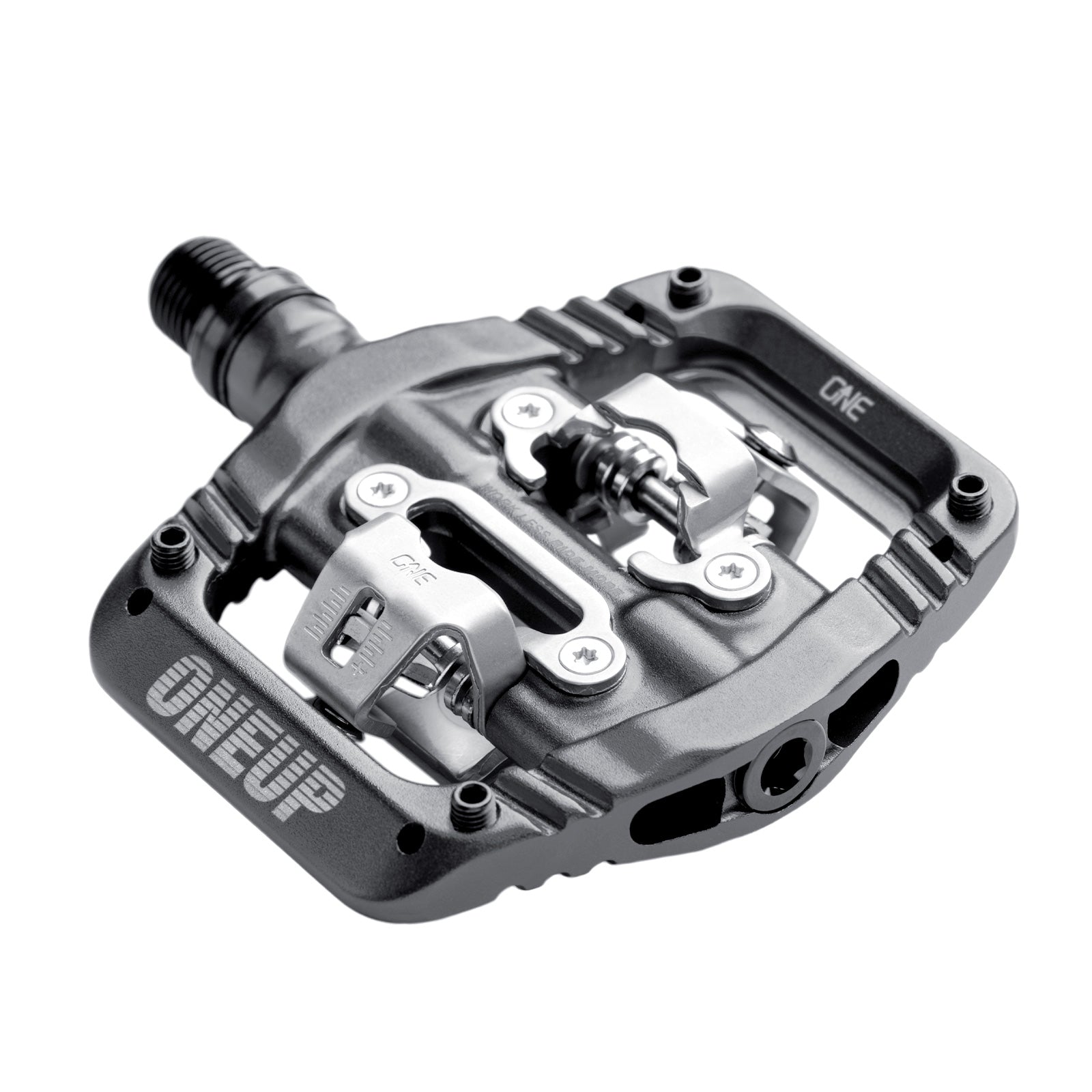

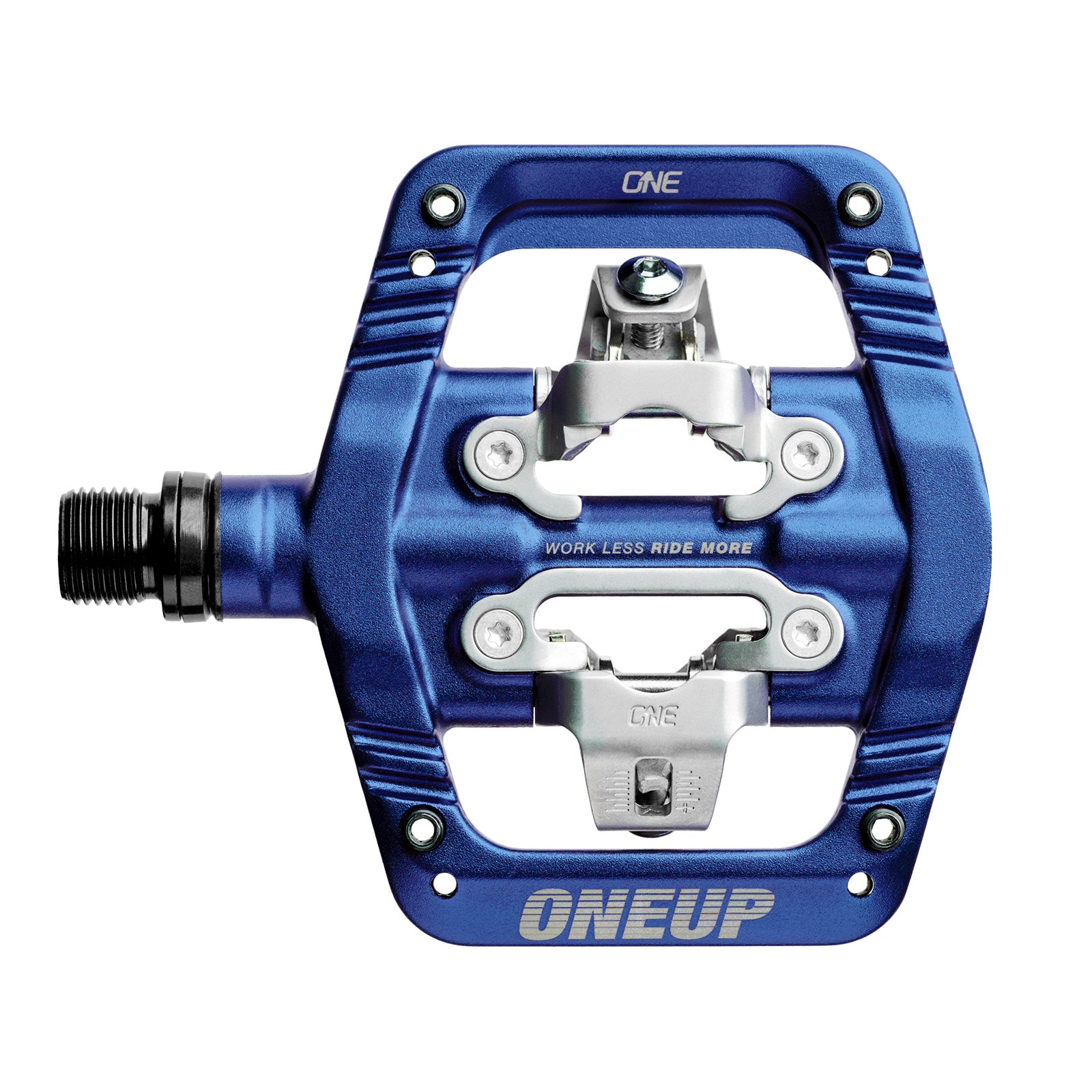

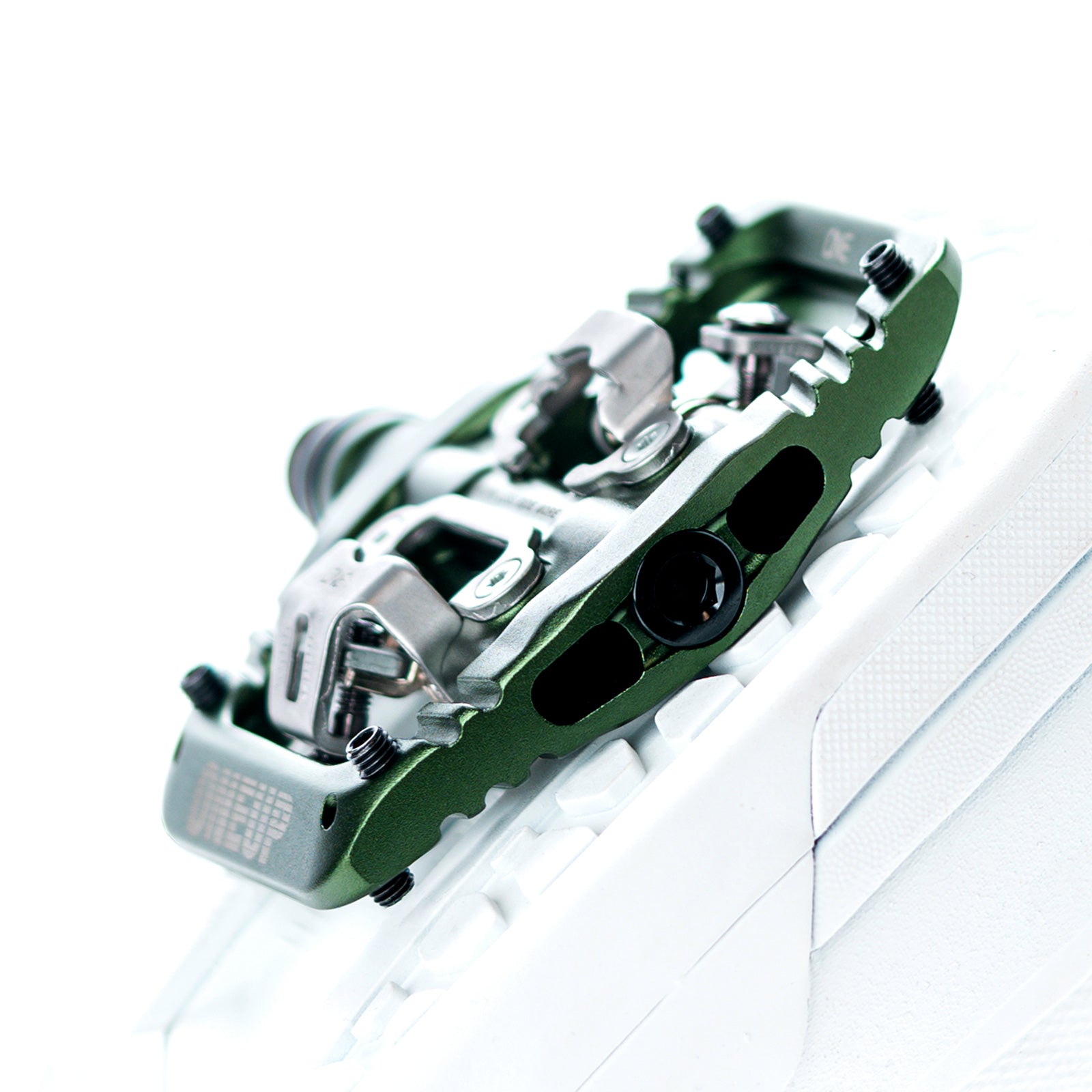

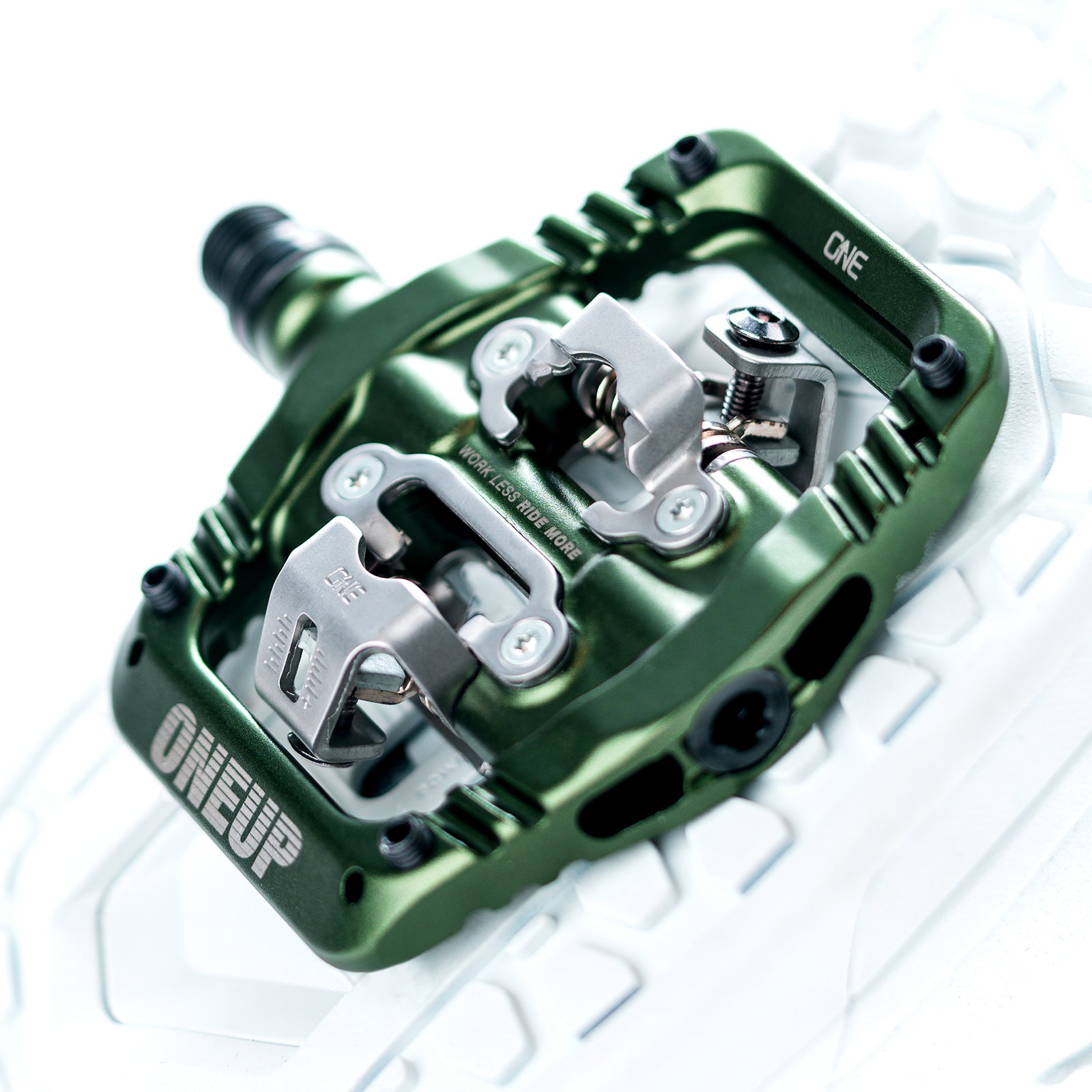

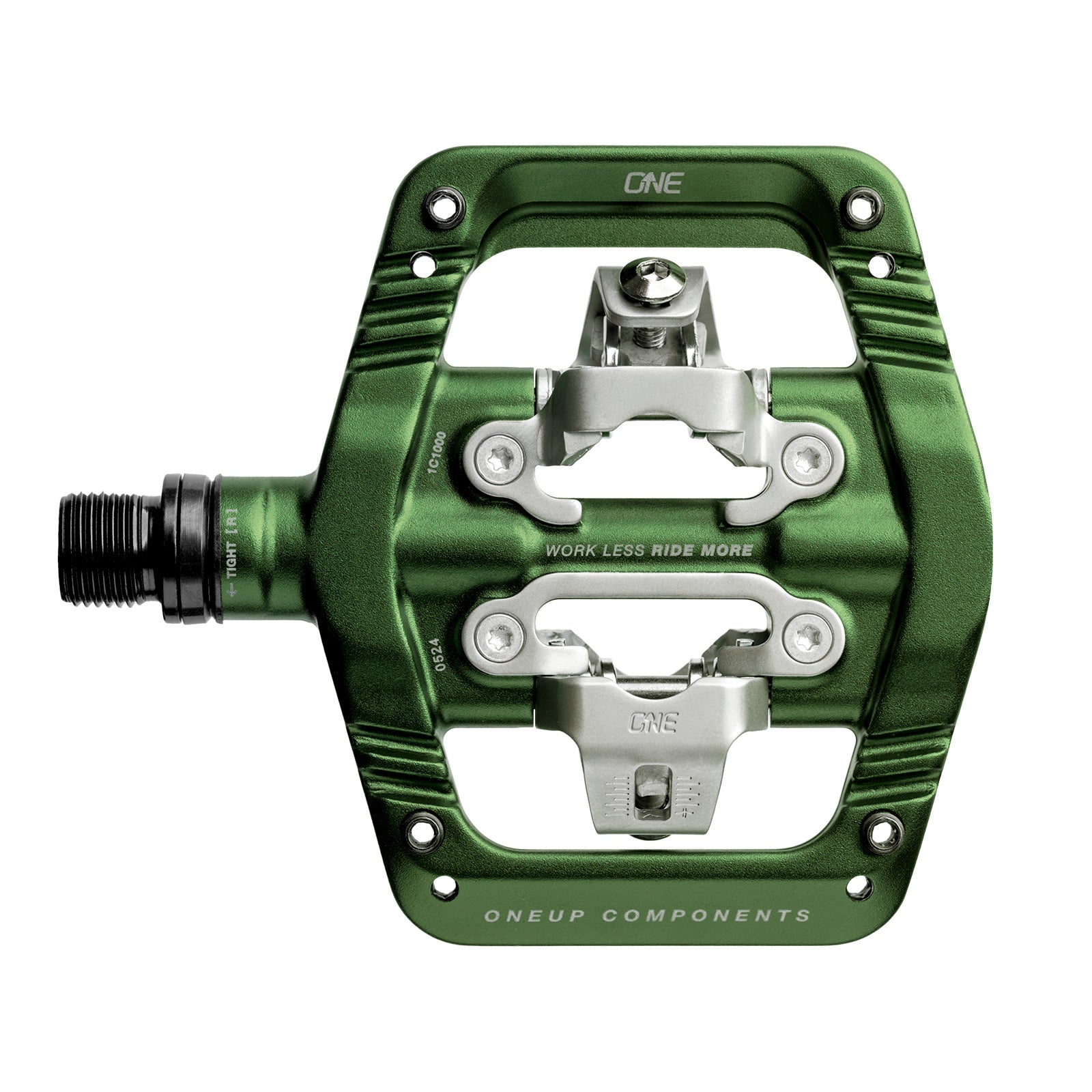

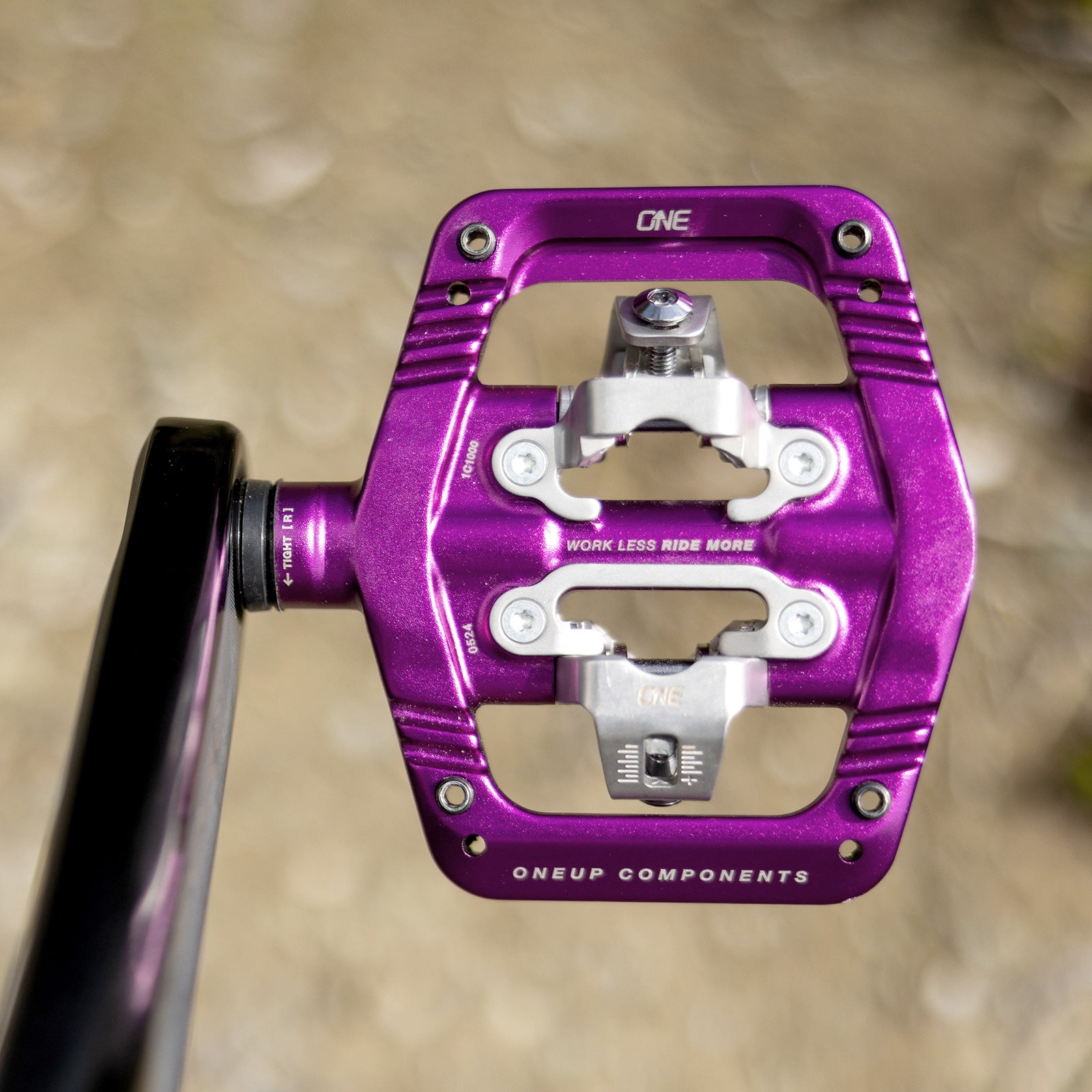

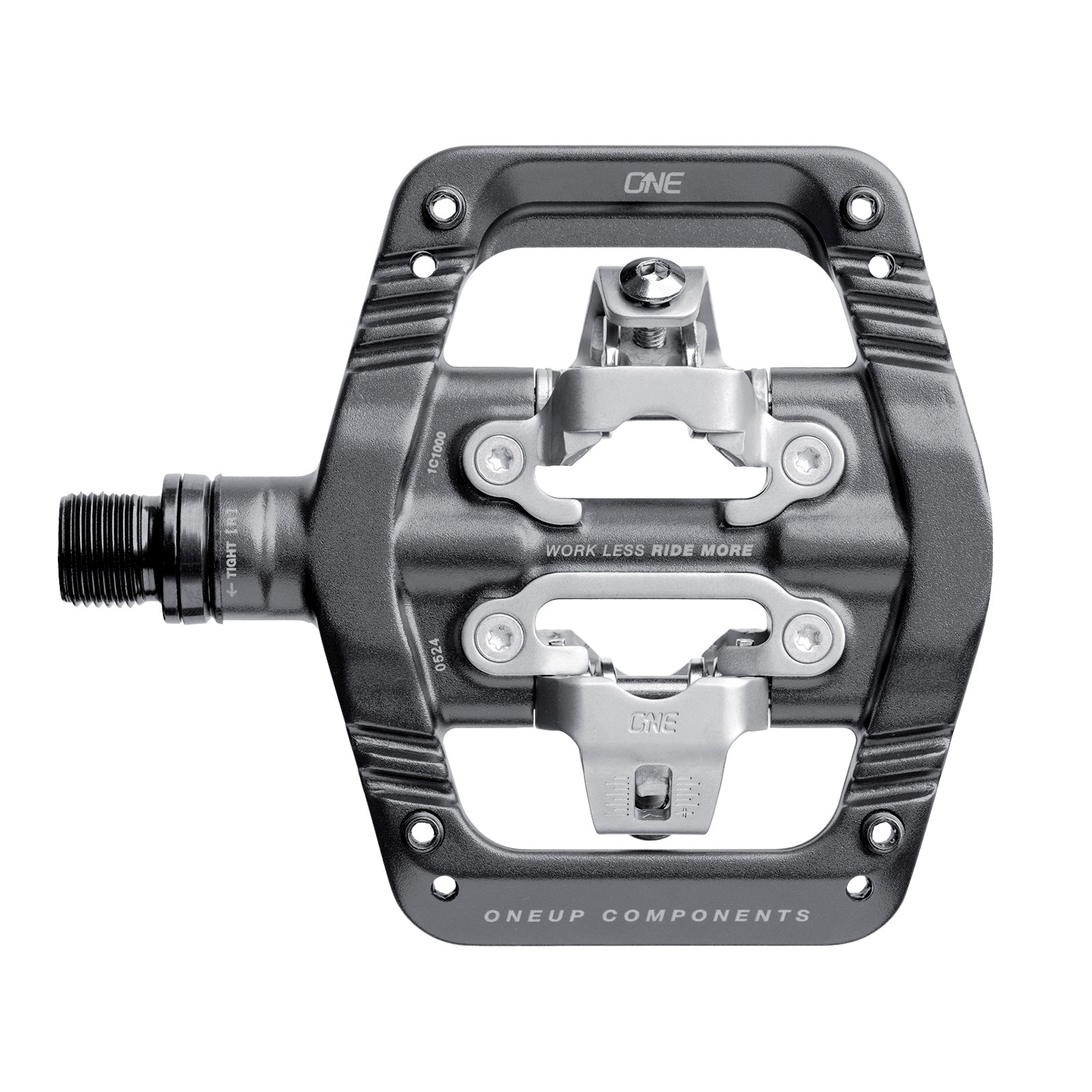

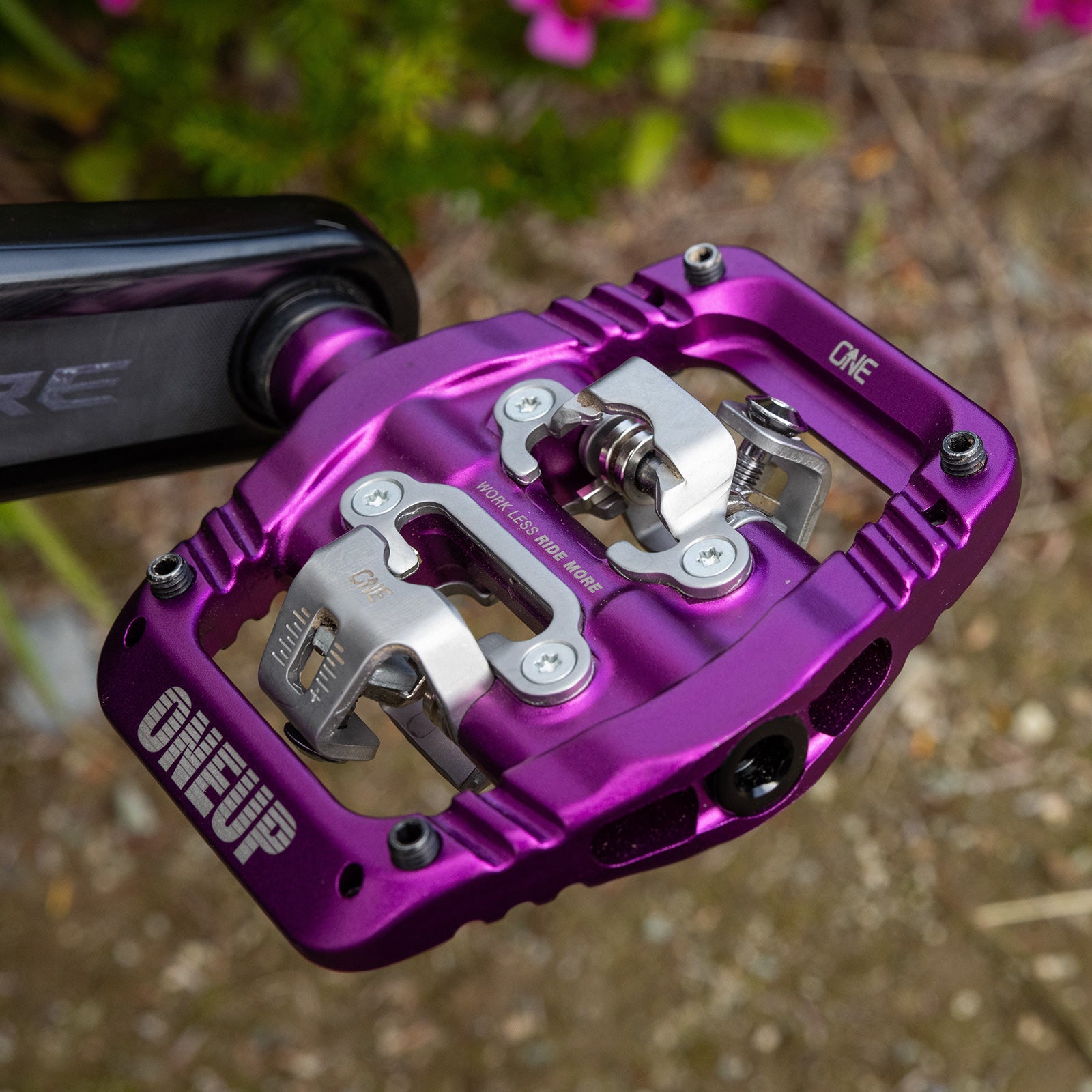

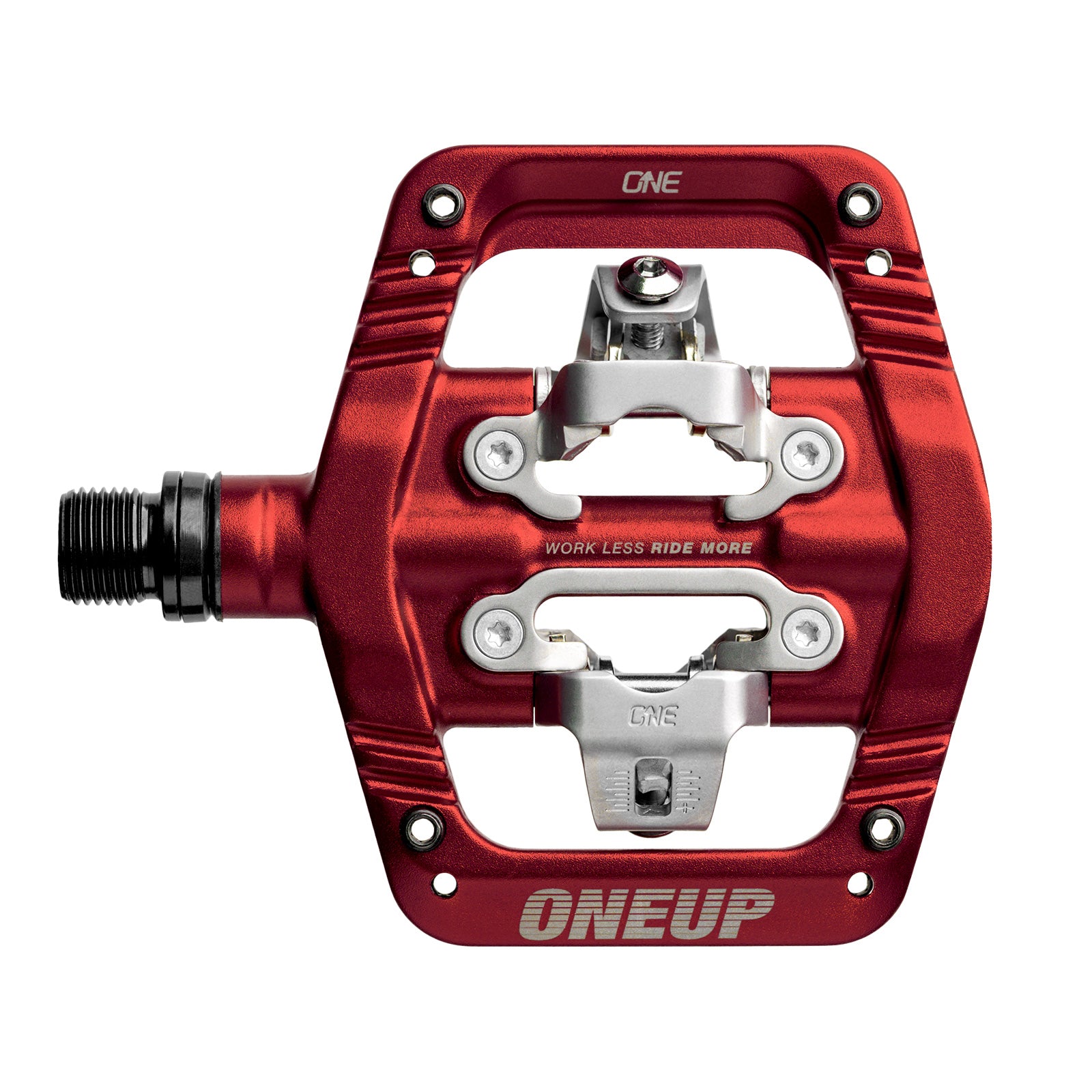

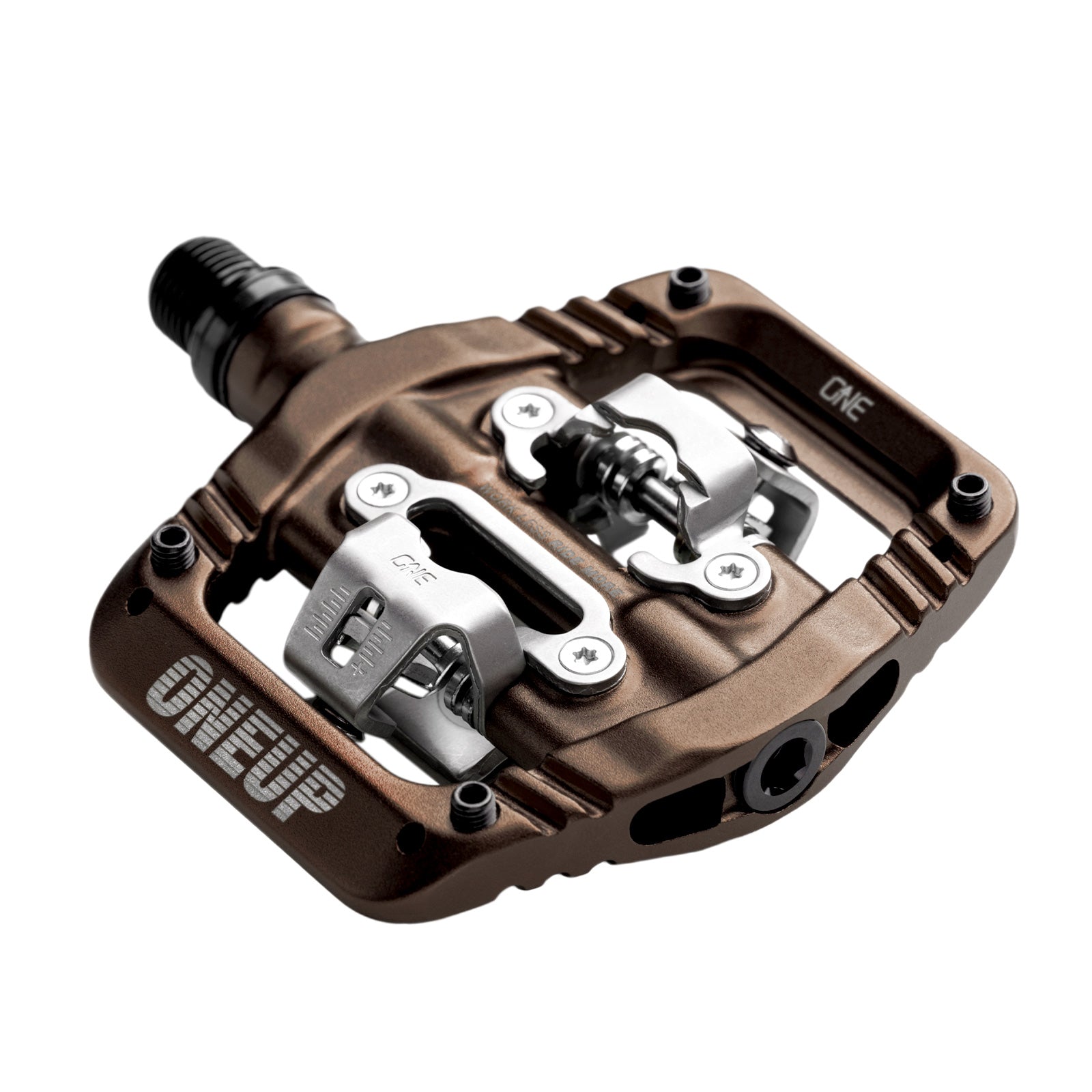

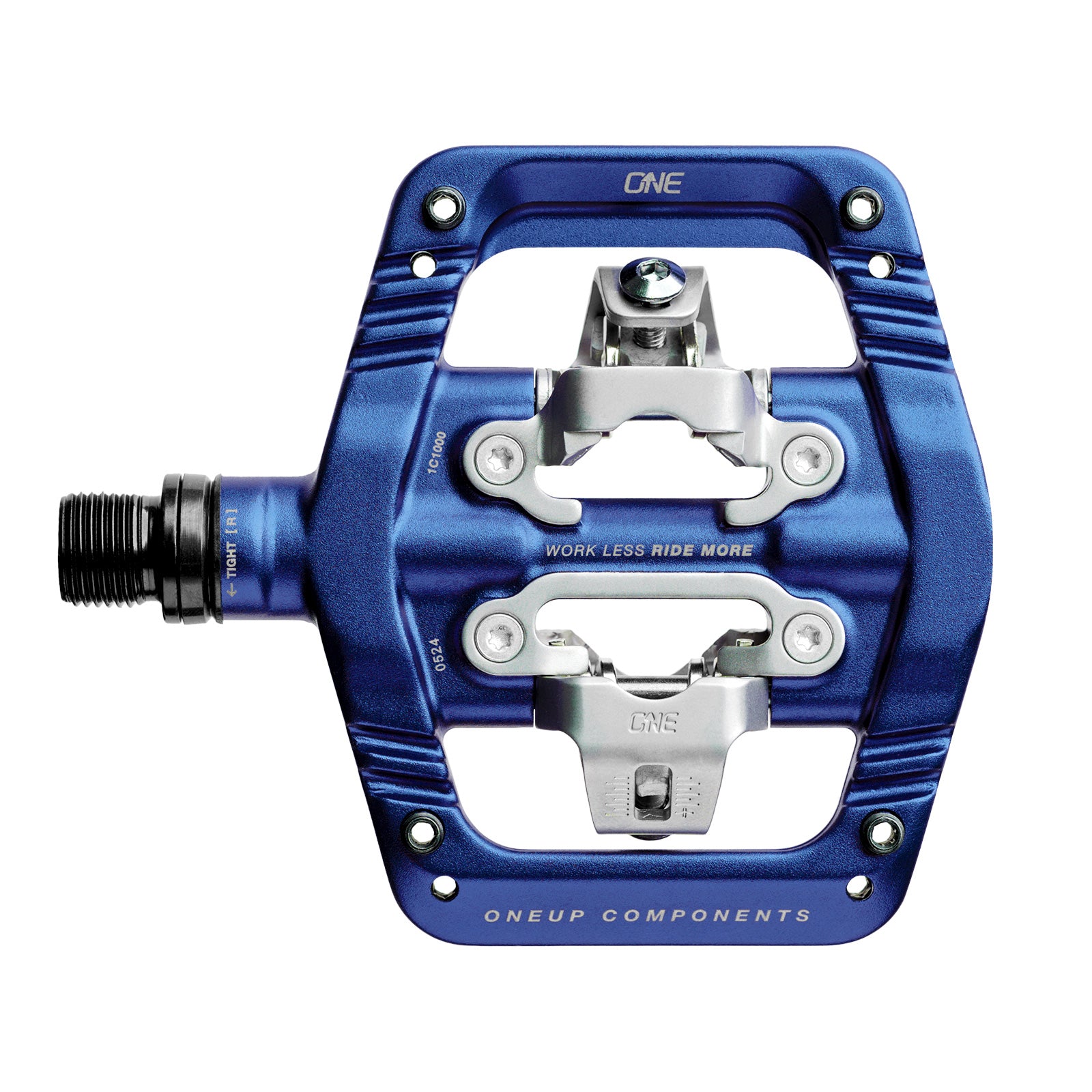

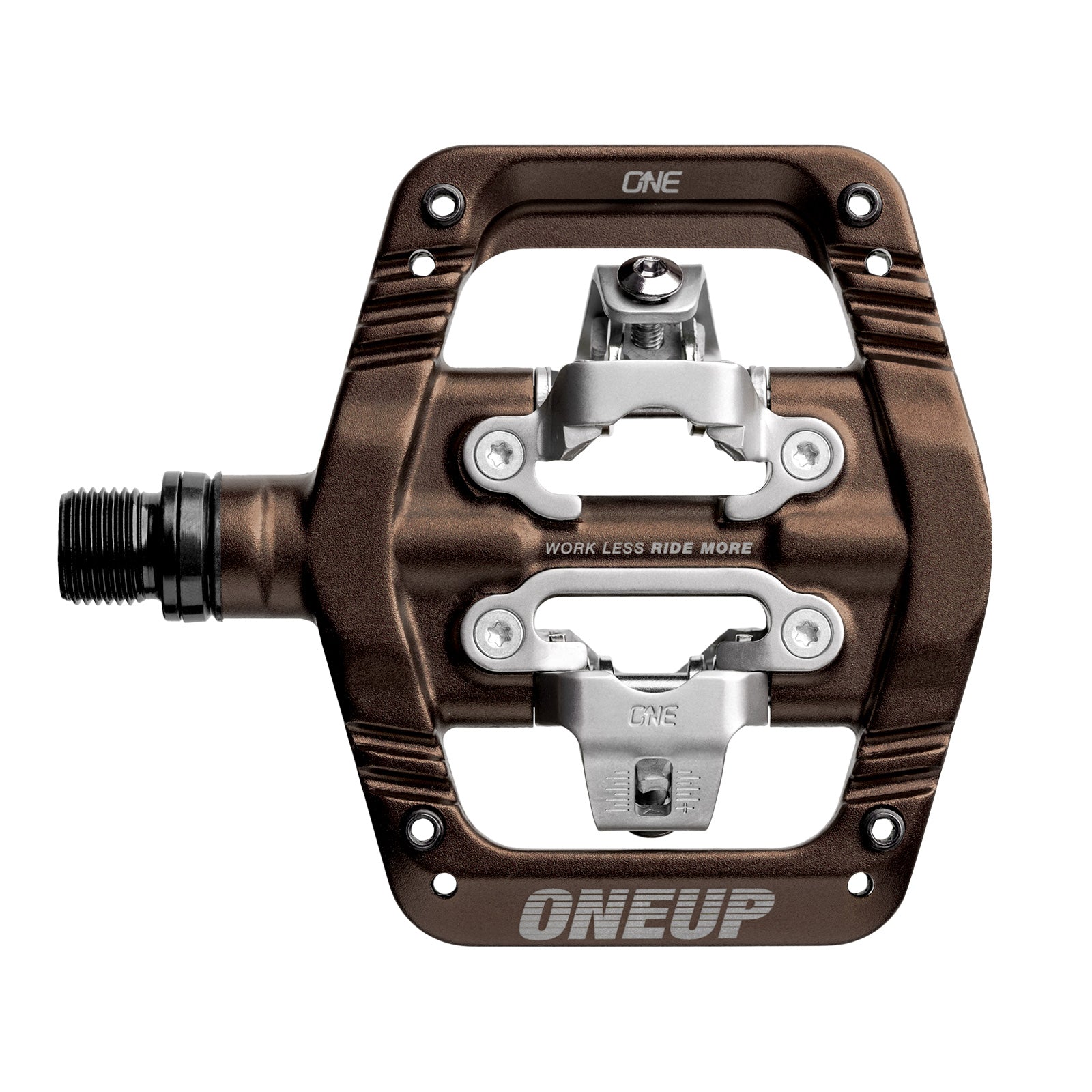

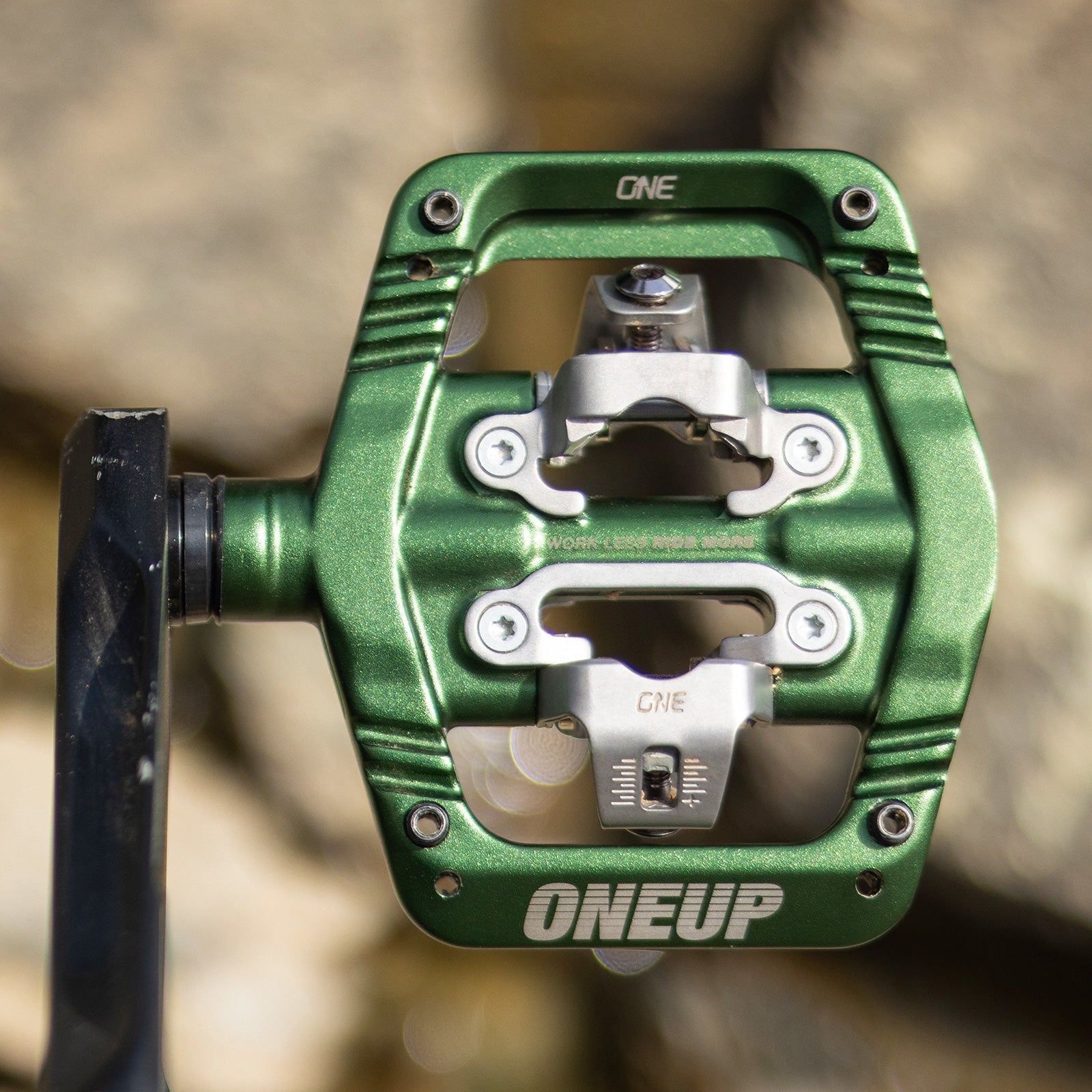

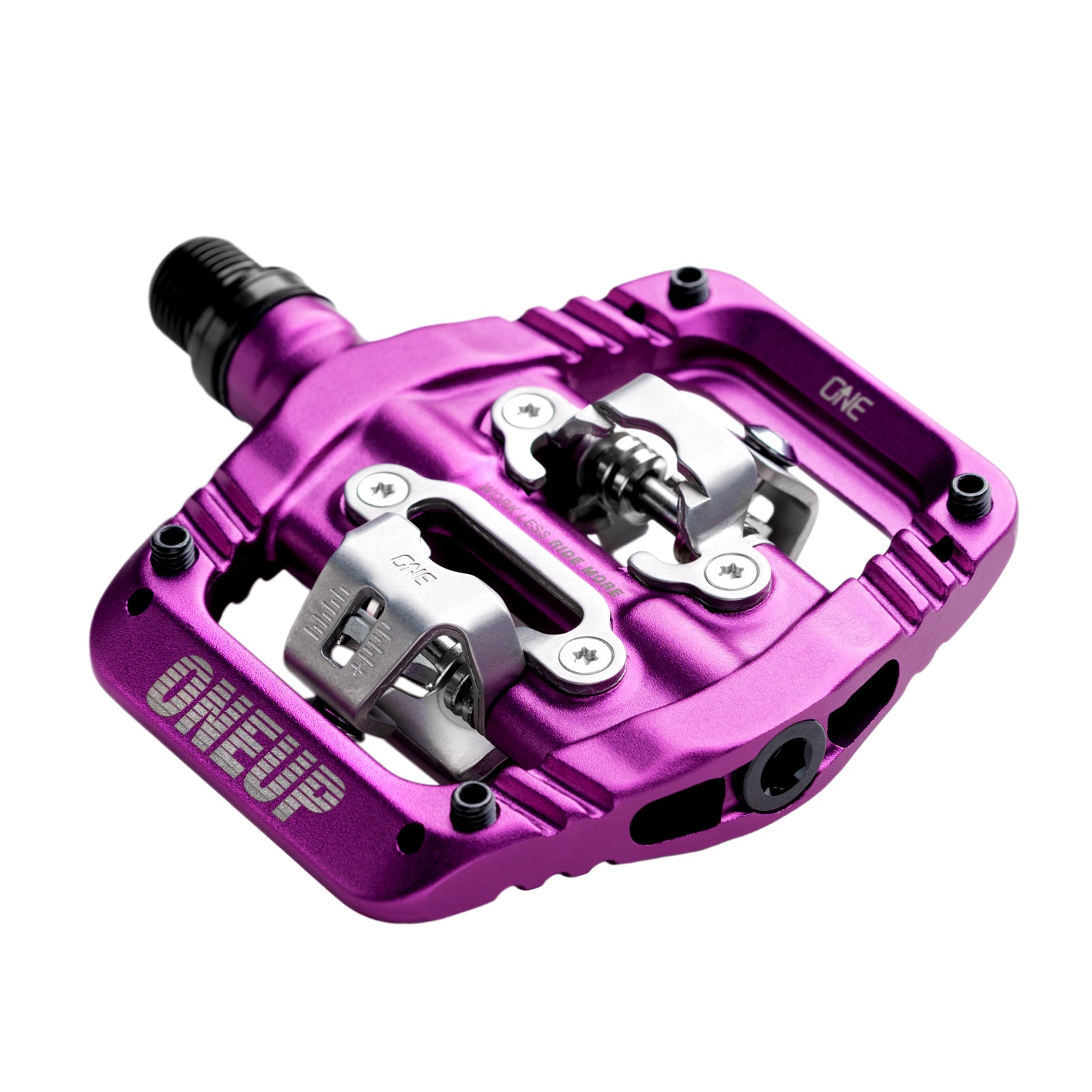

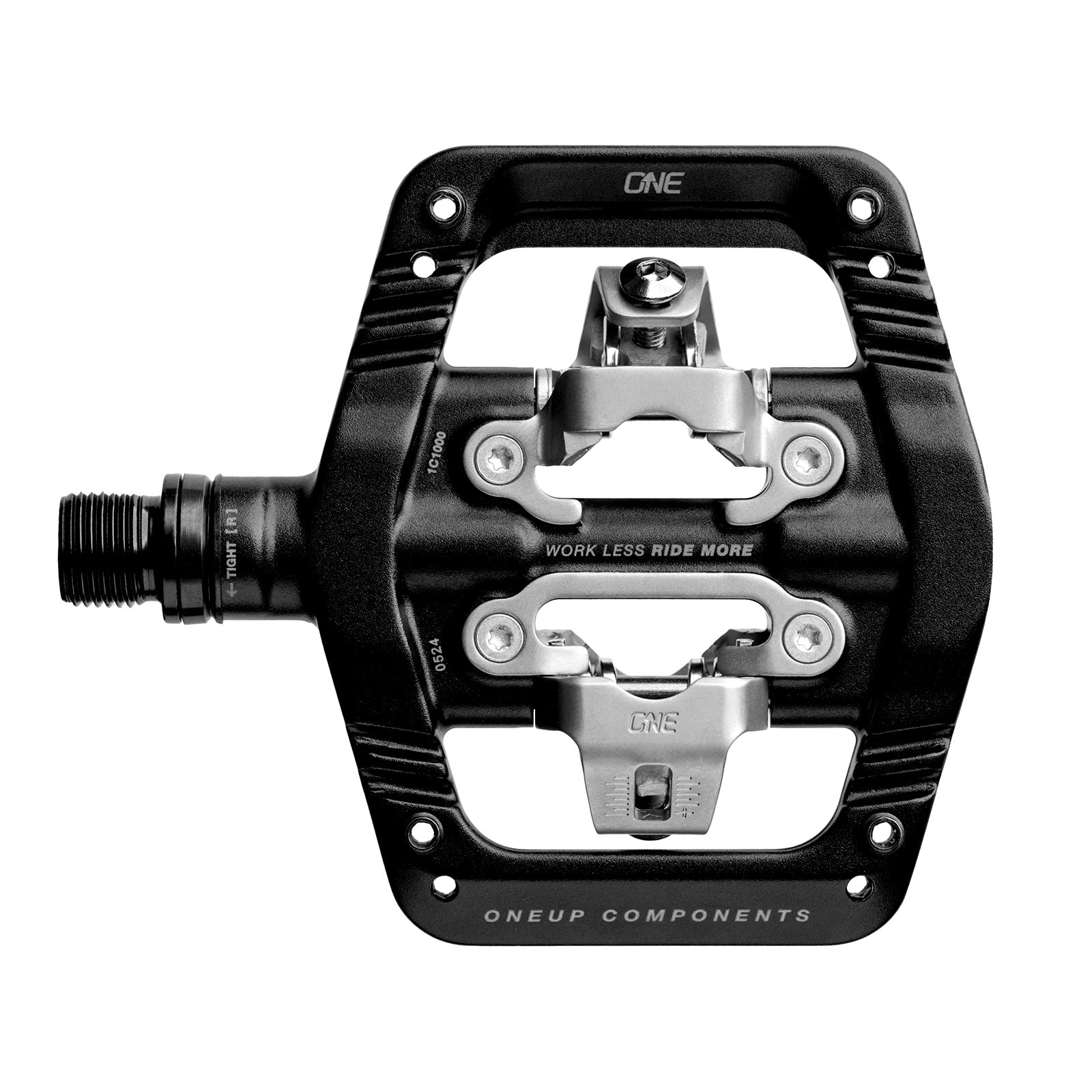

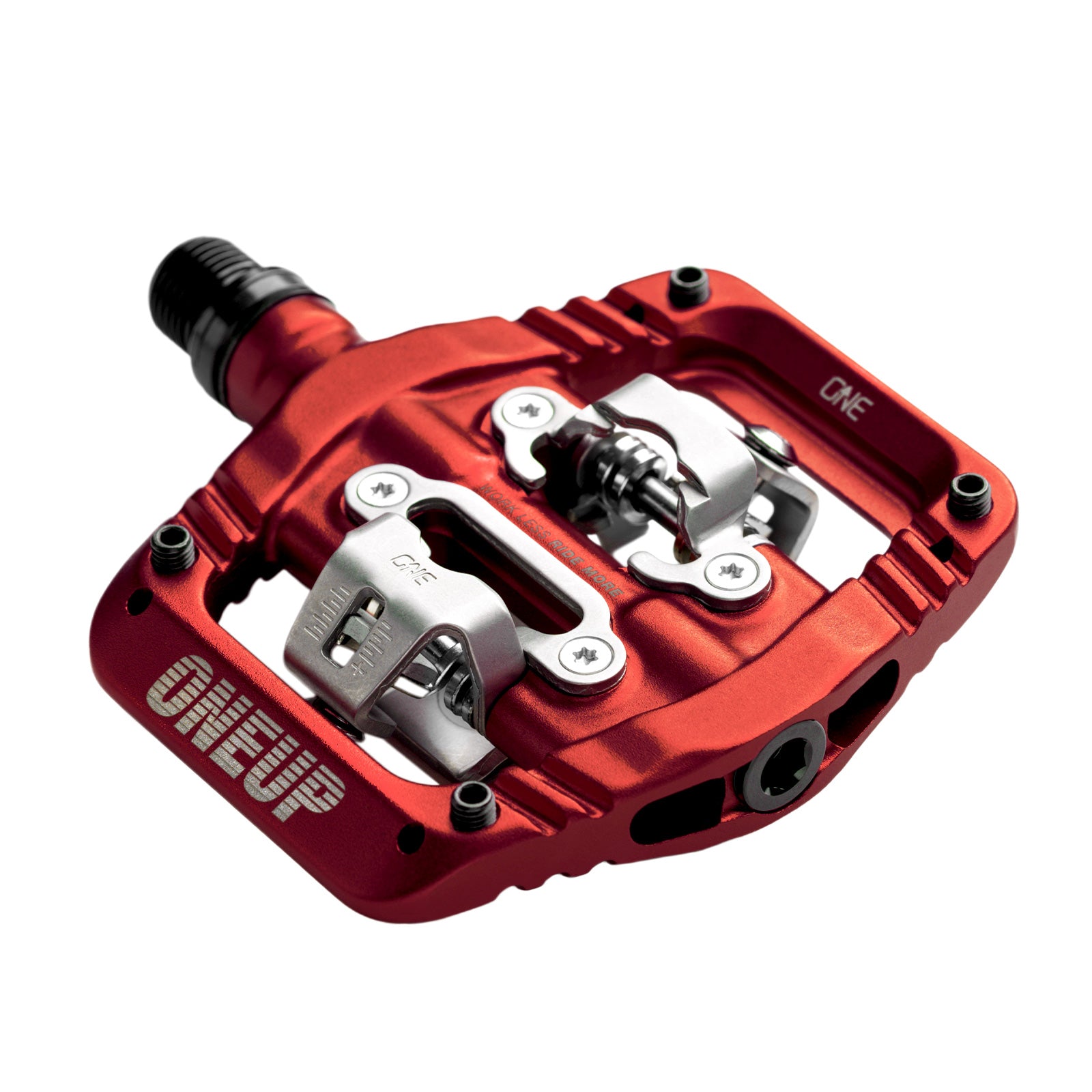

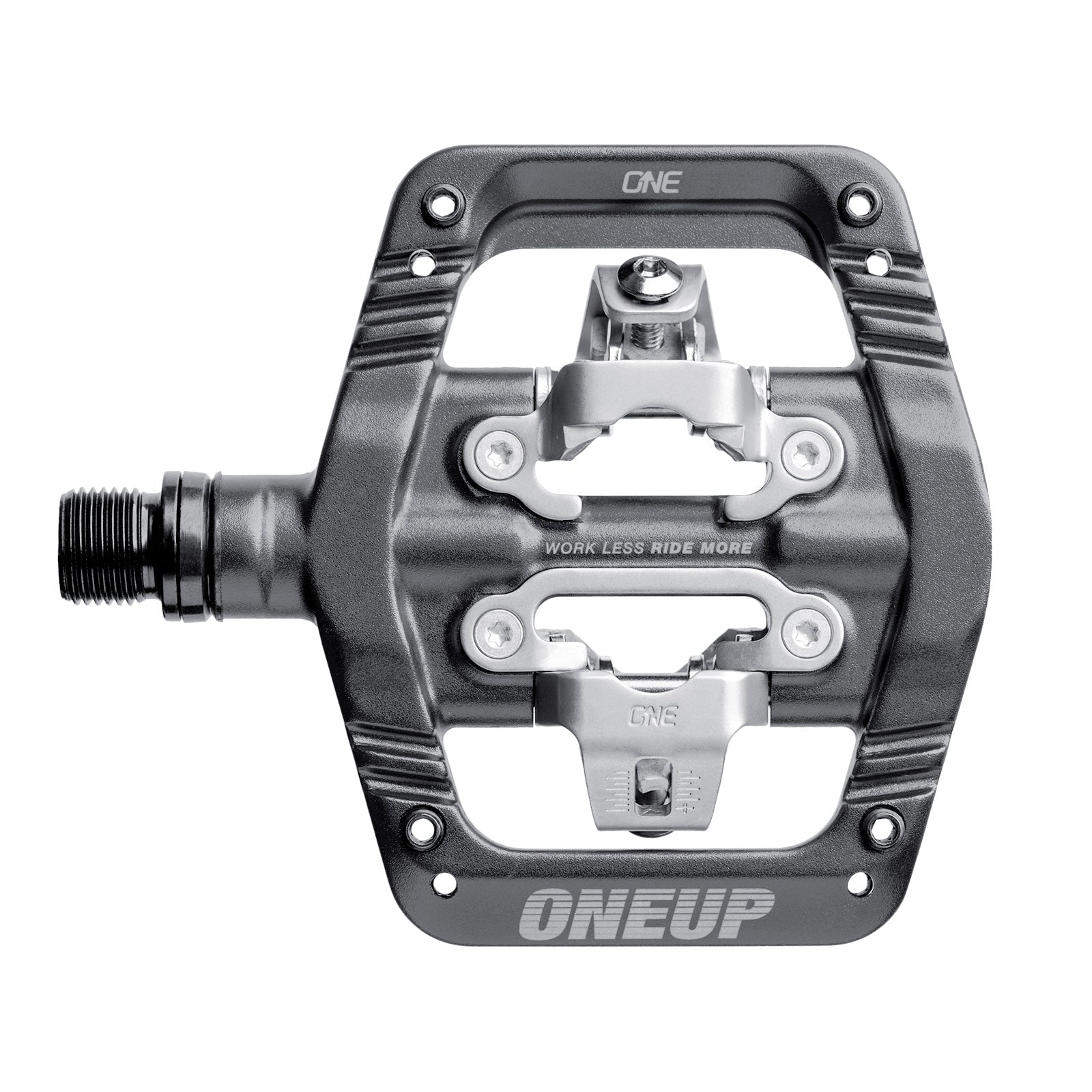

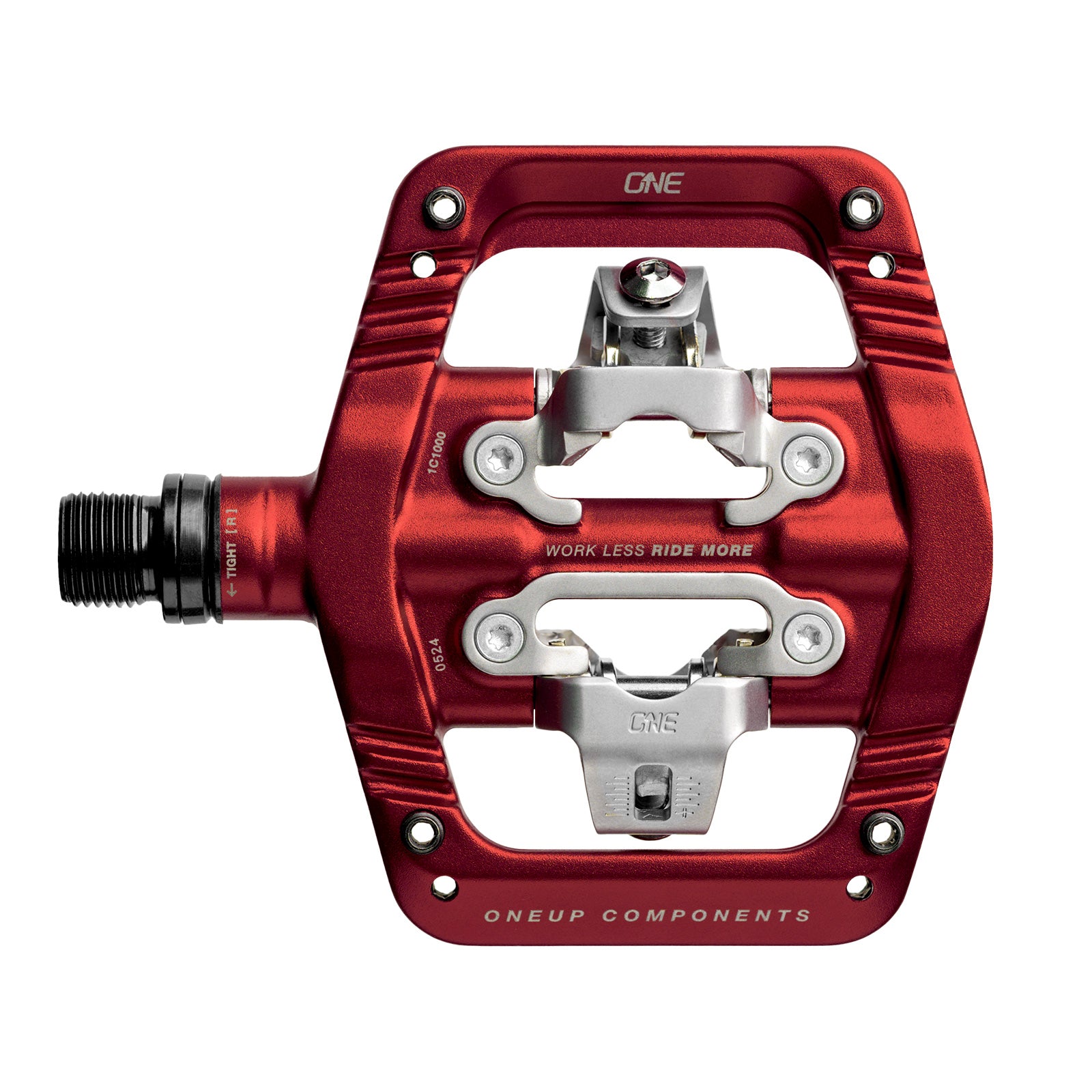

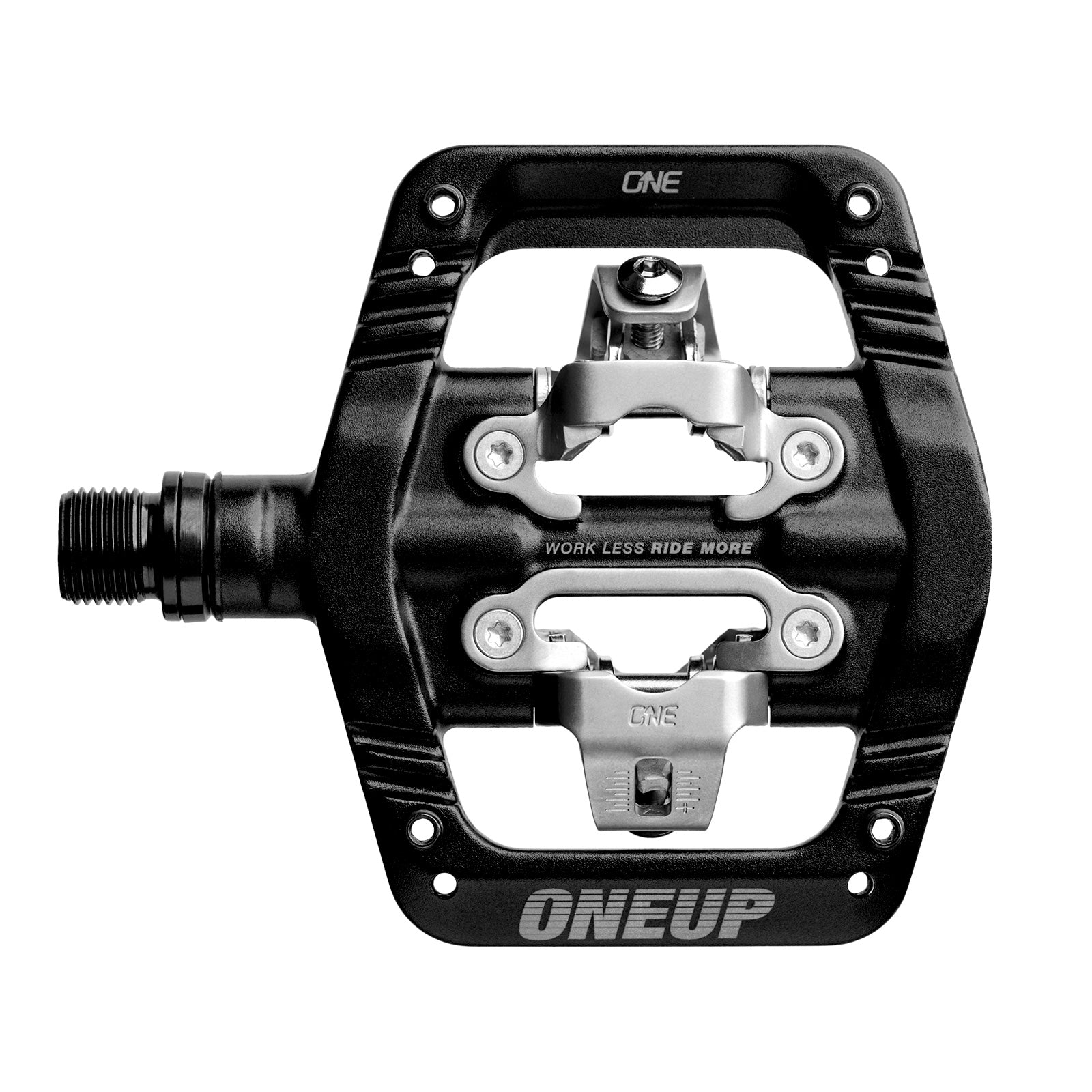

At only 26.8mm, OneUp Components Clip Pedals are the thinnest mountain bike clip pedals in the world. The thin, large platform has pins that actually touch your shoe and a precise cleat engagement that doesn't sacrifice power or ease of release. Get a more connected feel, with more support and less pedal strikes.

  • Weight: 410g with pins (4 pins per side)

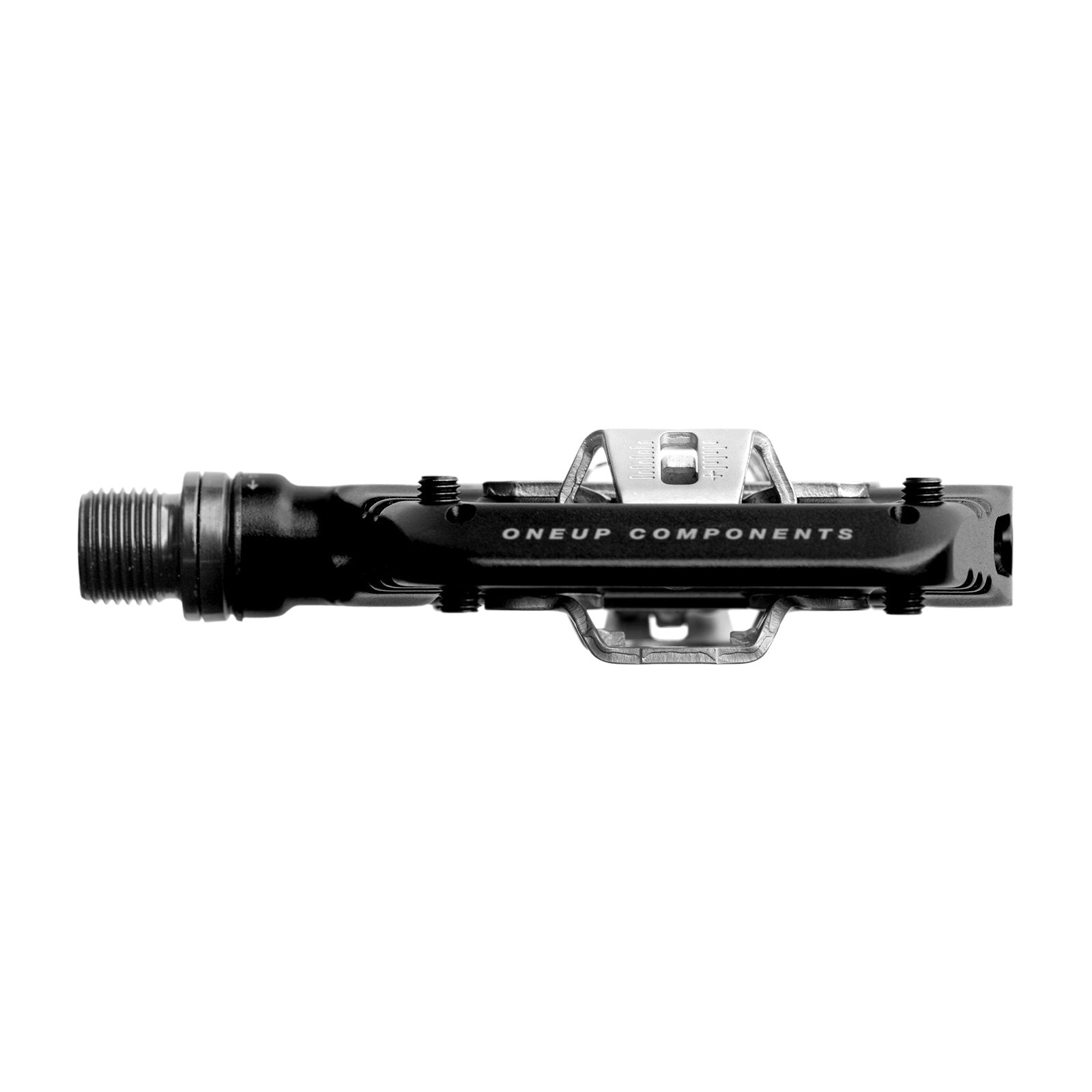

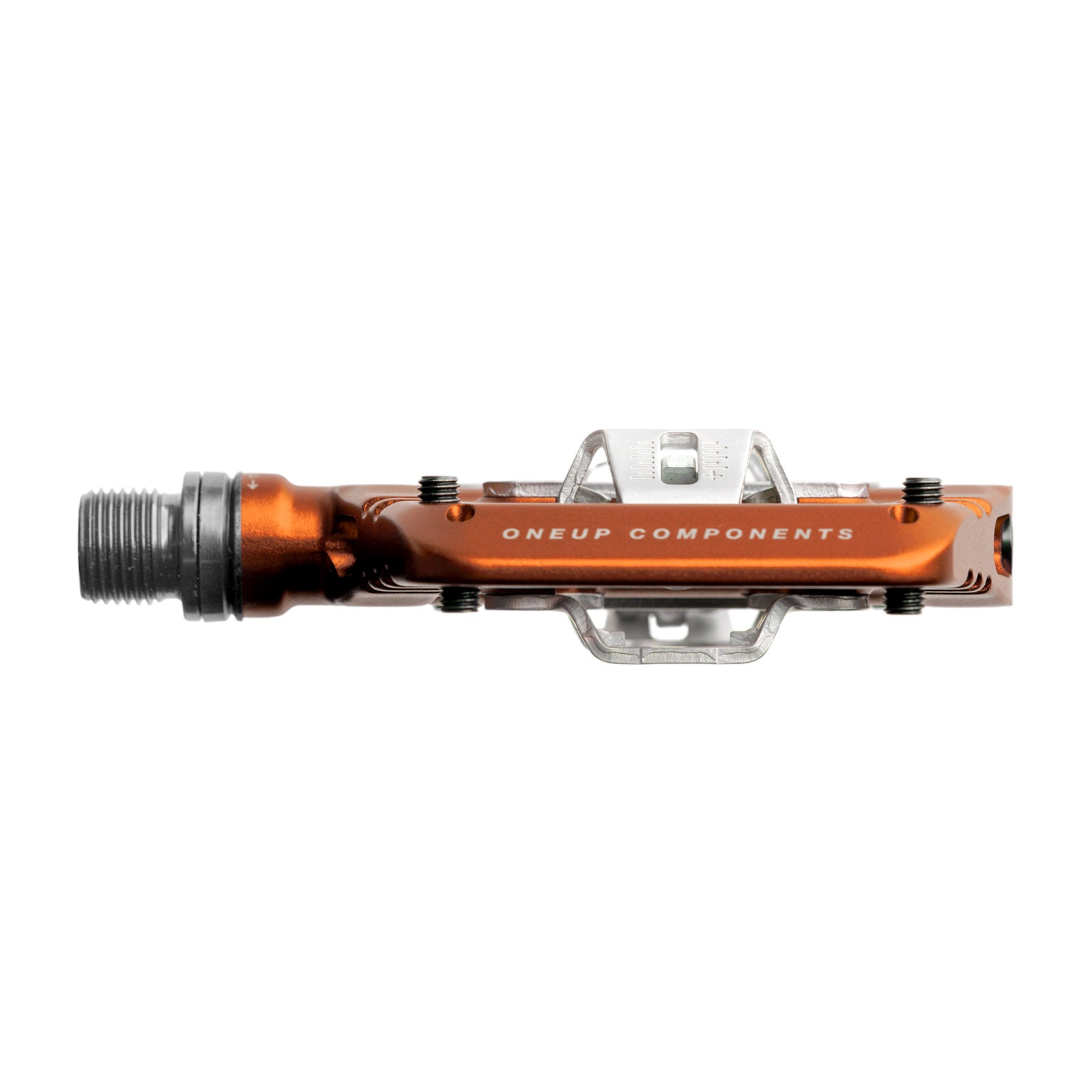

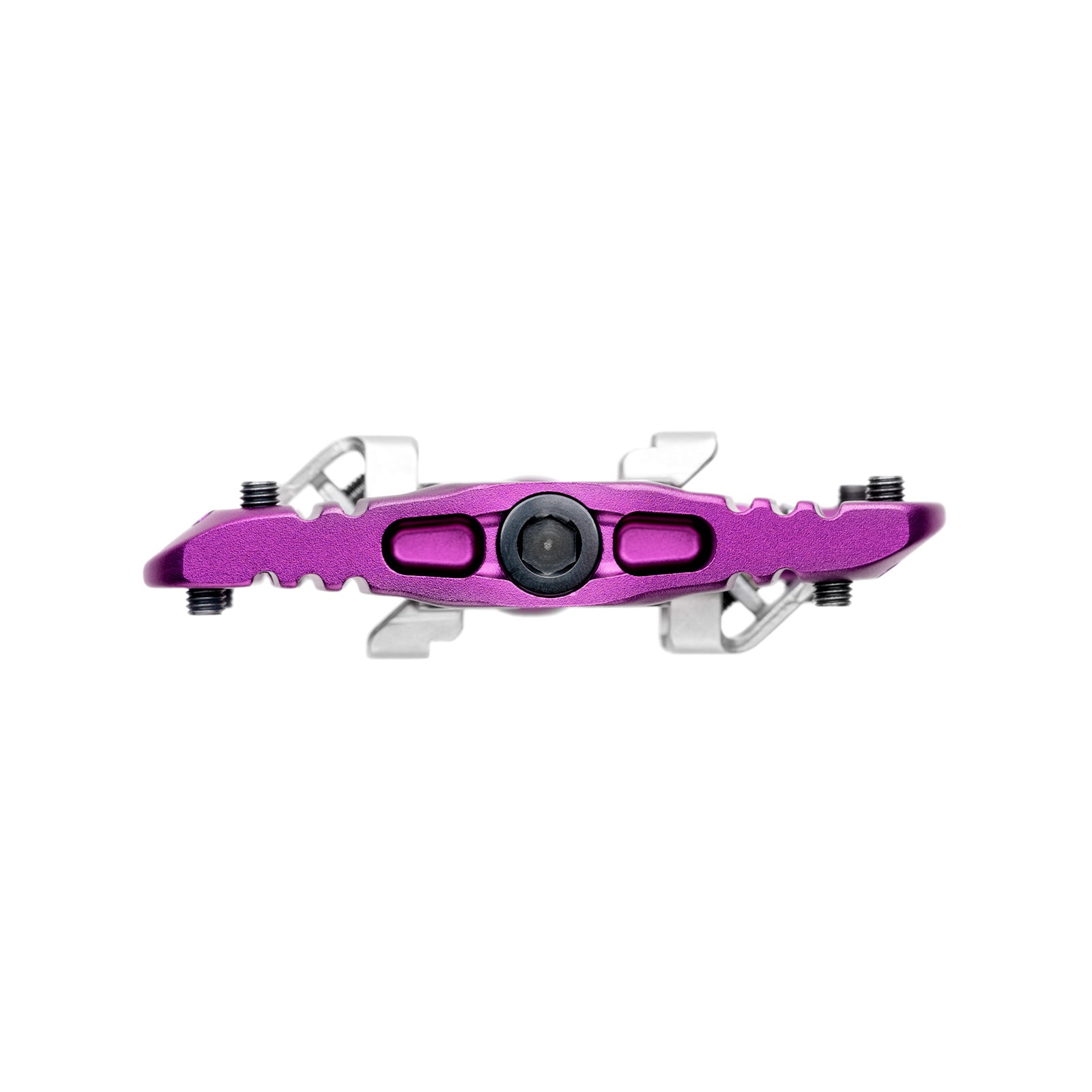

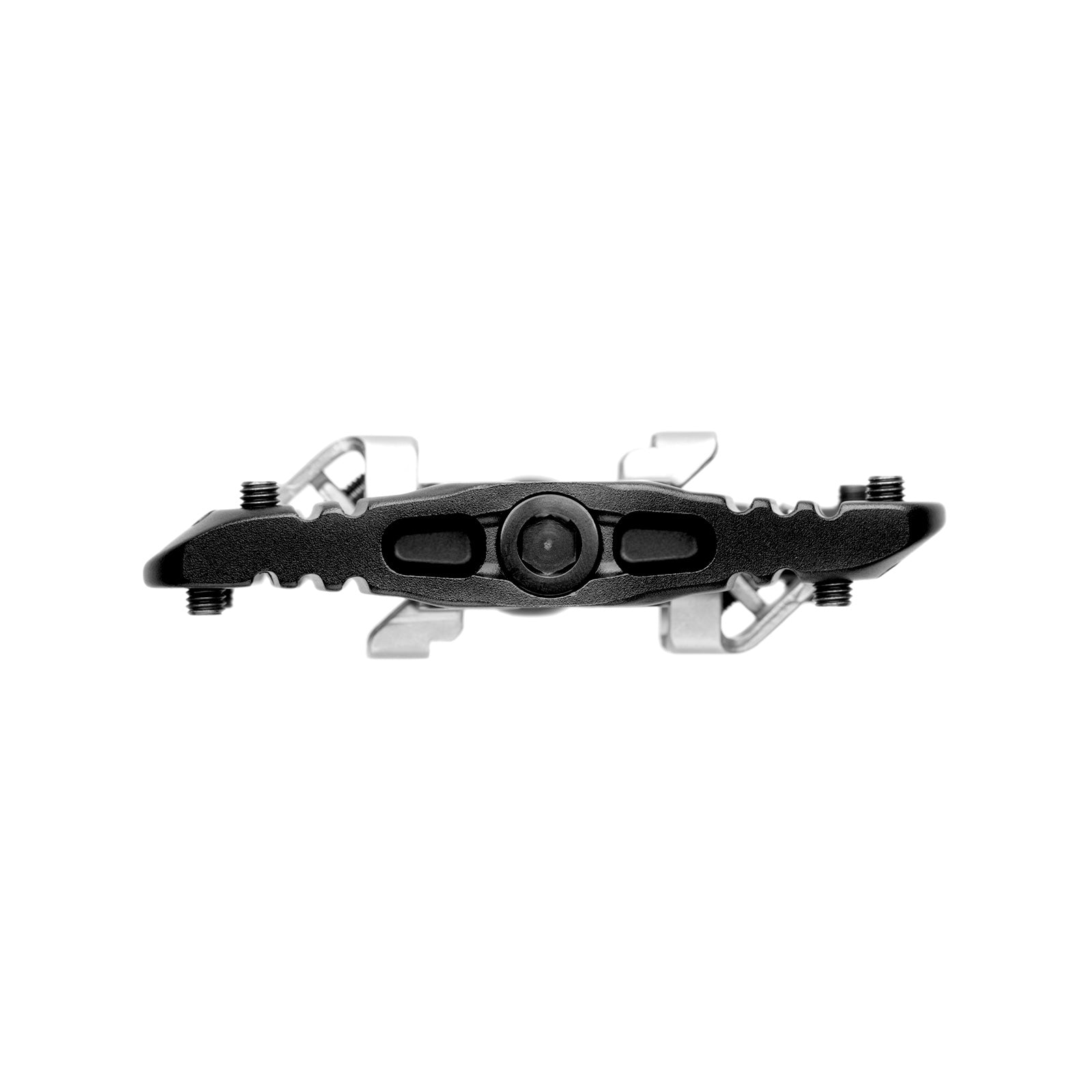

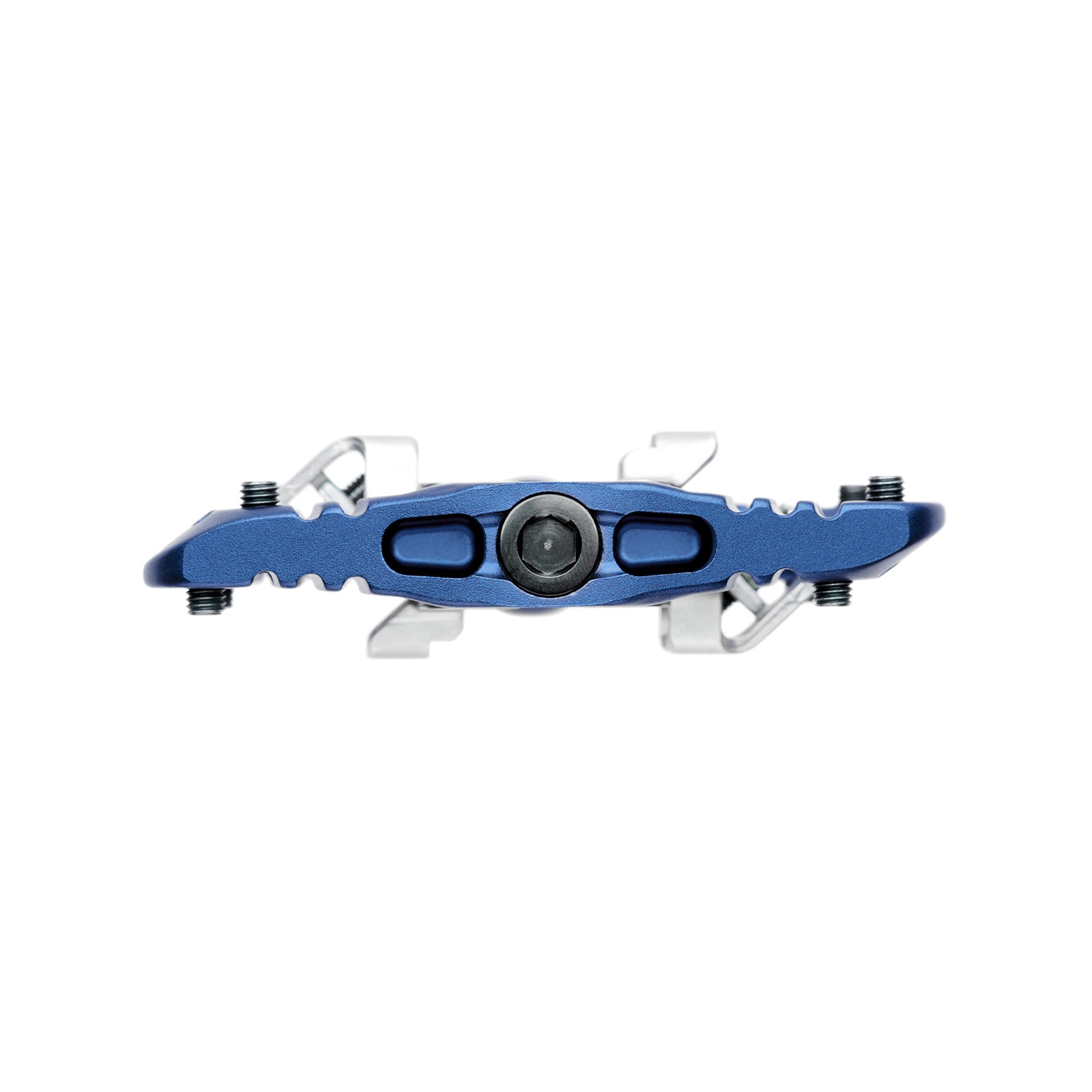

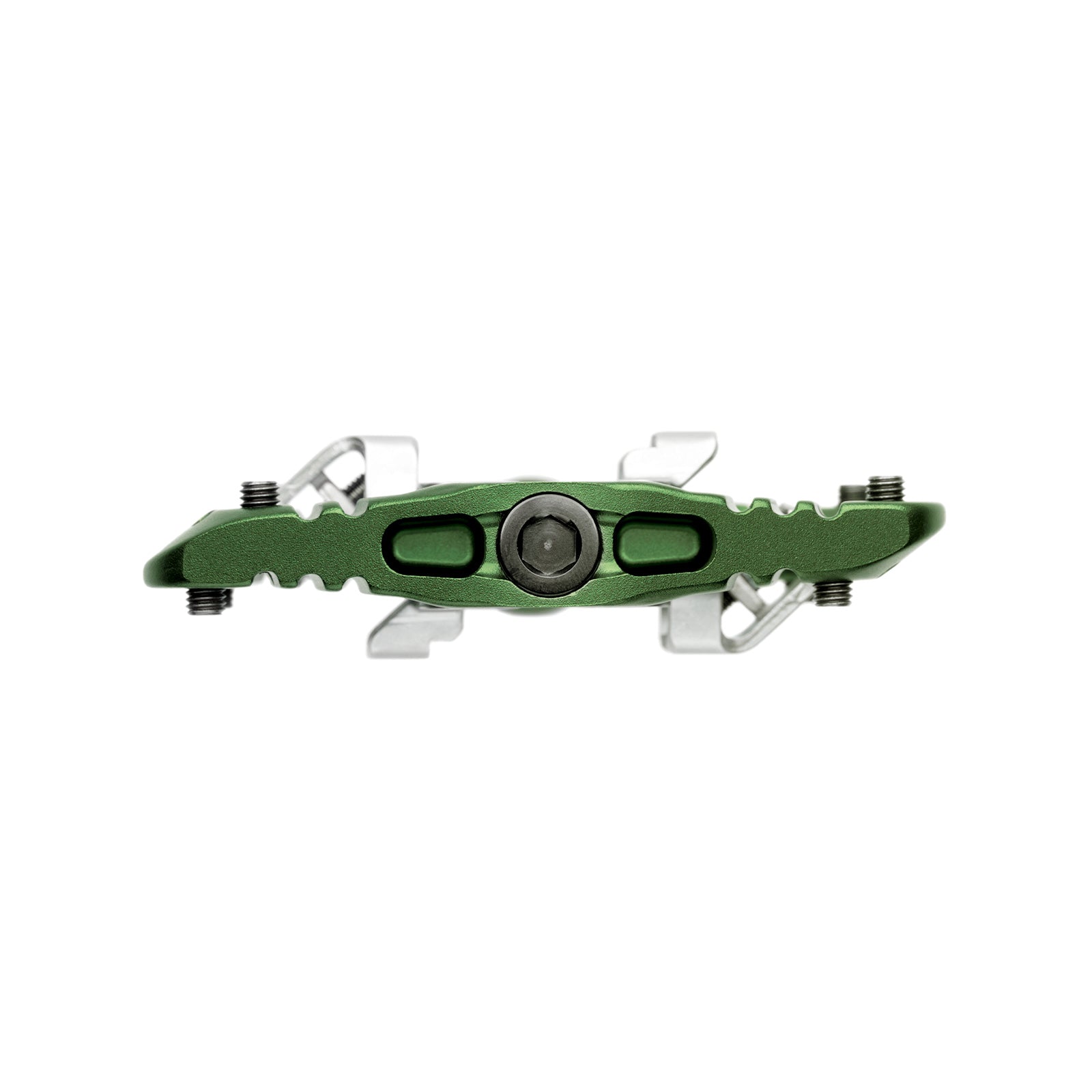

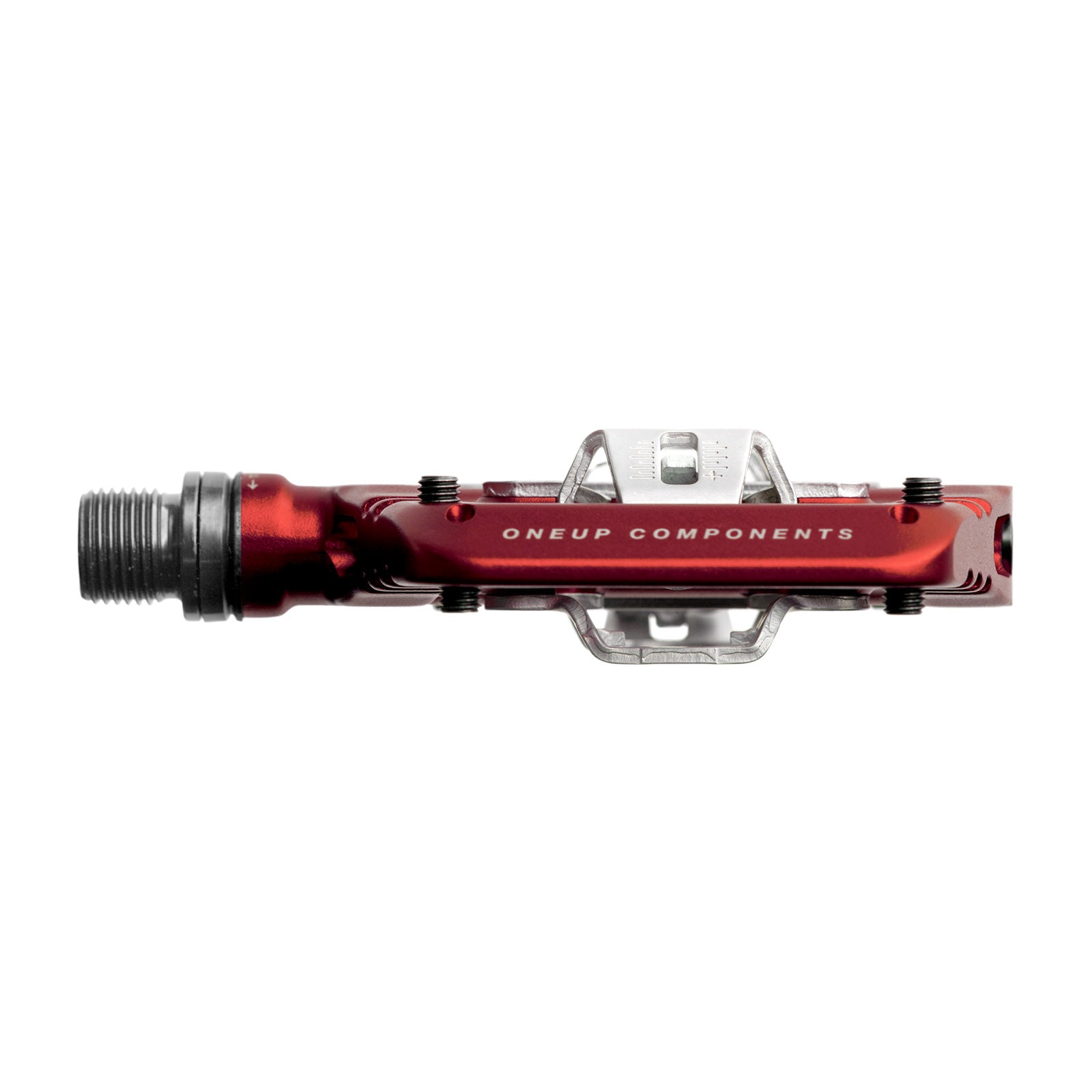

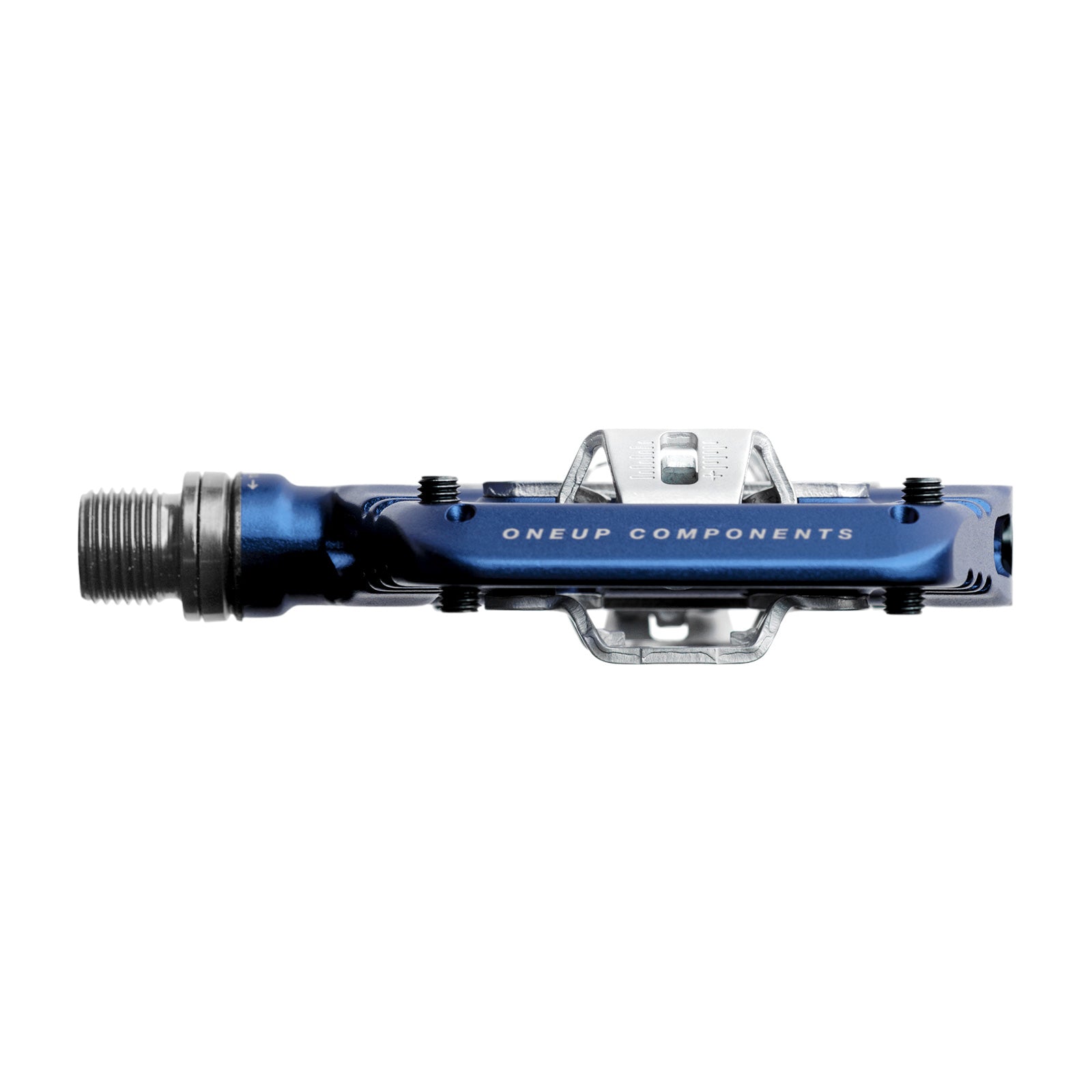

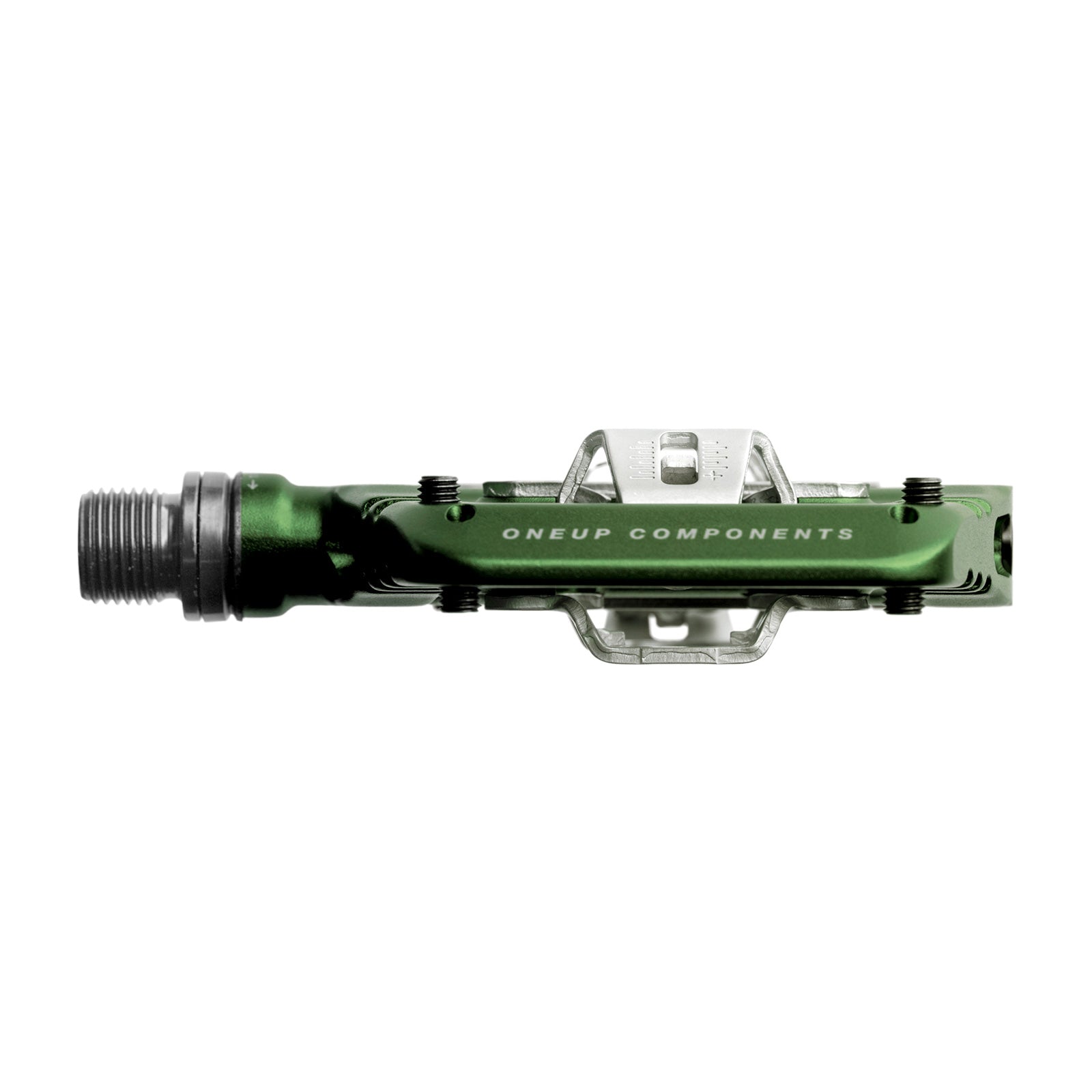

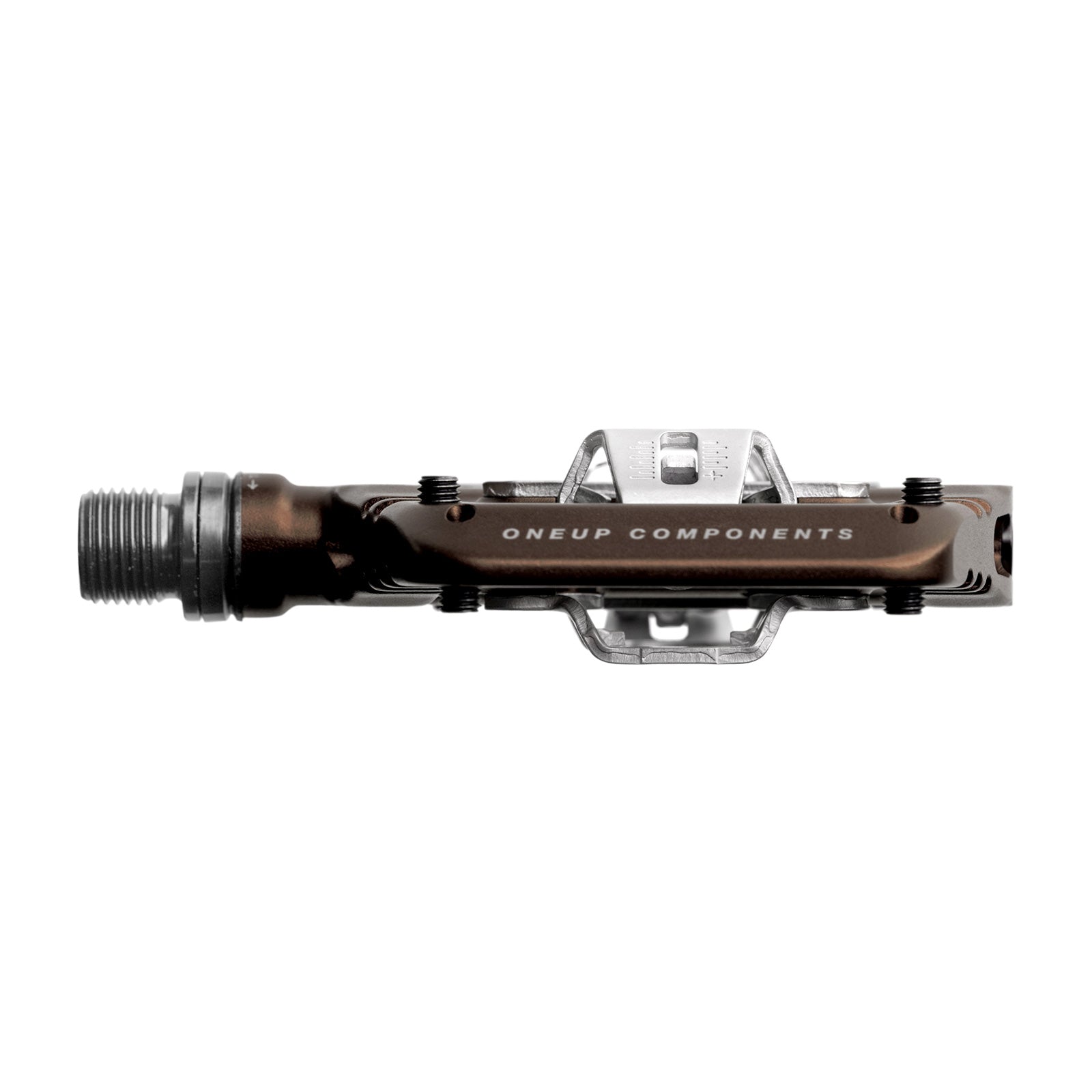

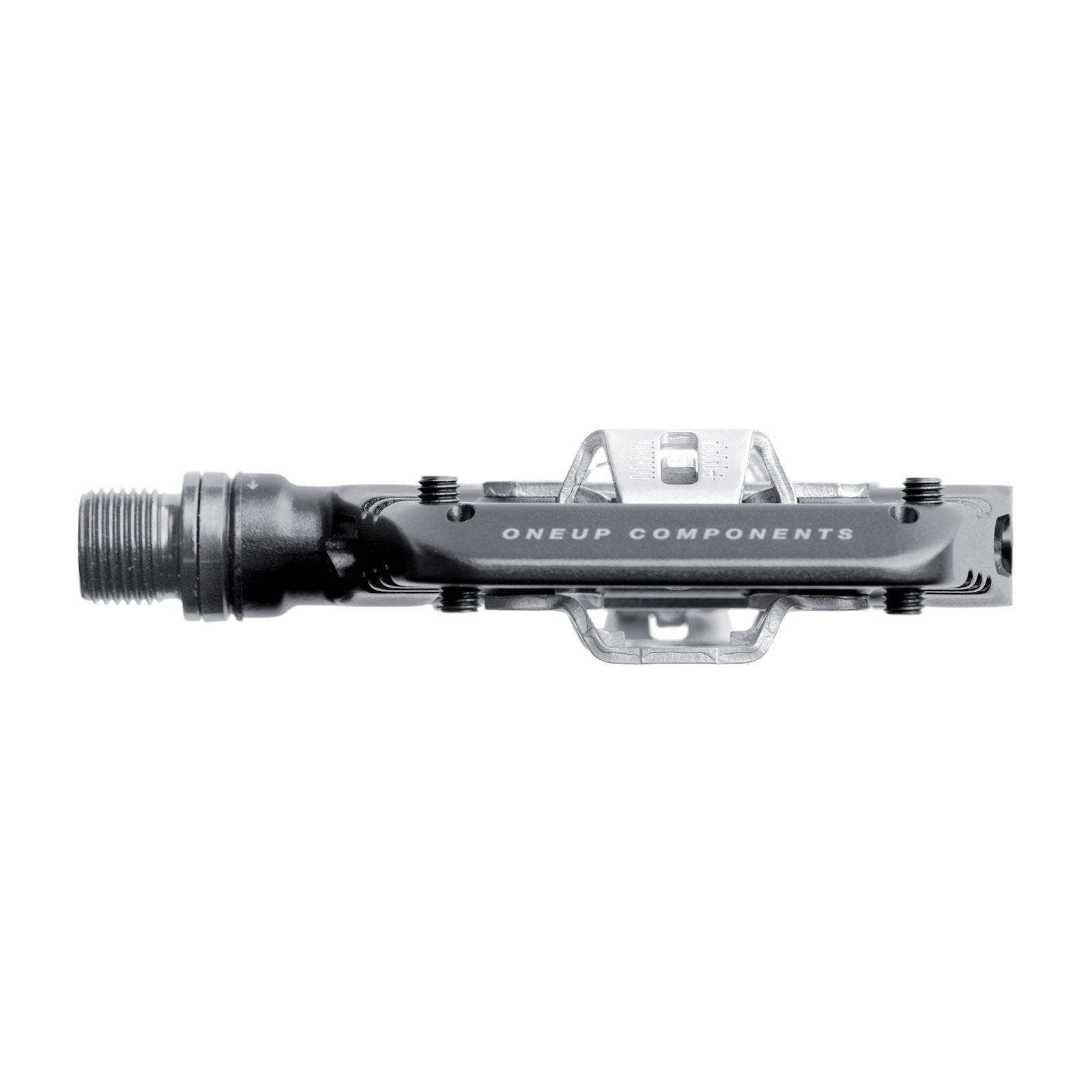

  • Thickness: 14.4mm (body), 26.8mm (cage)

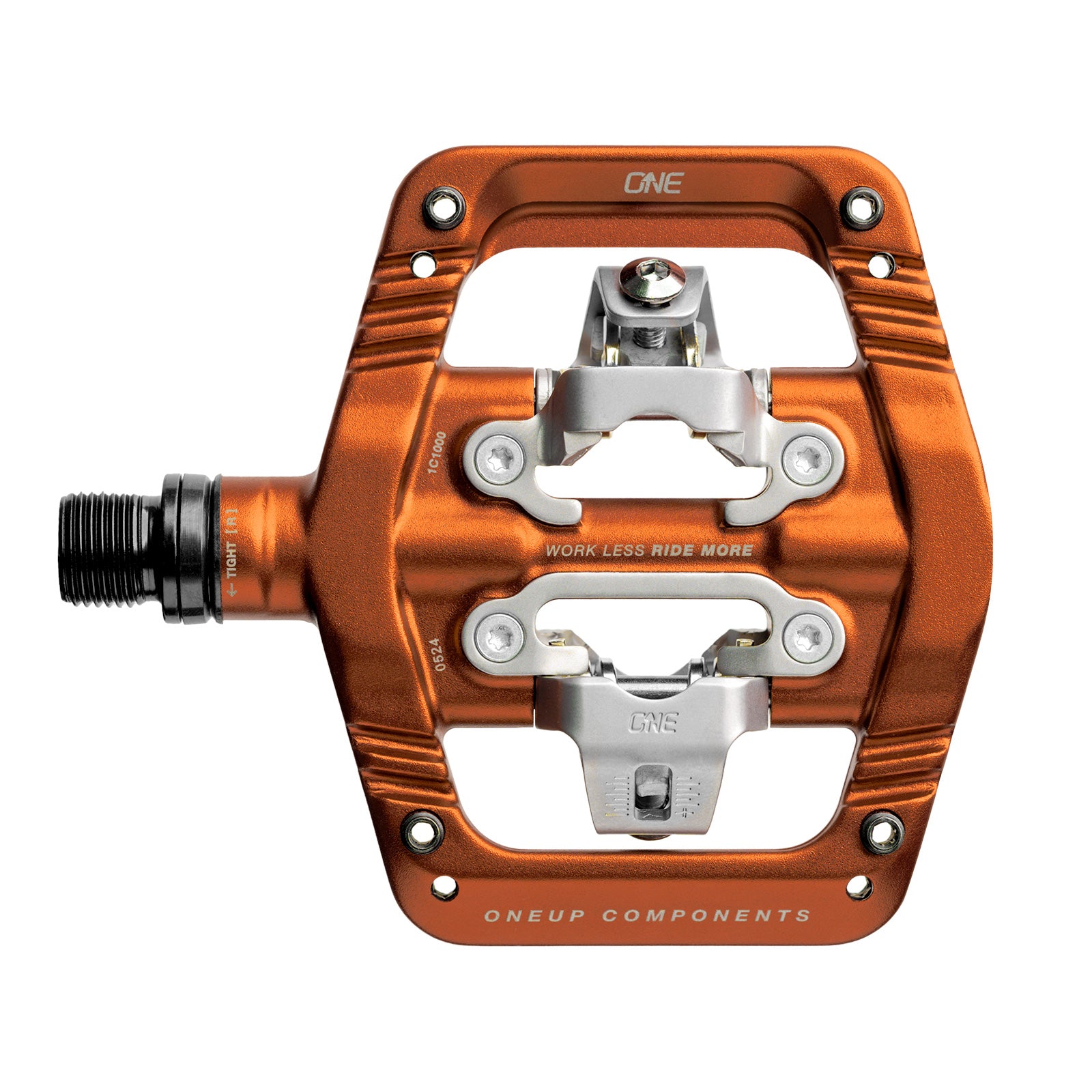

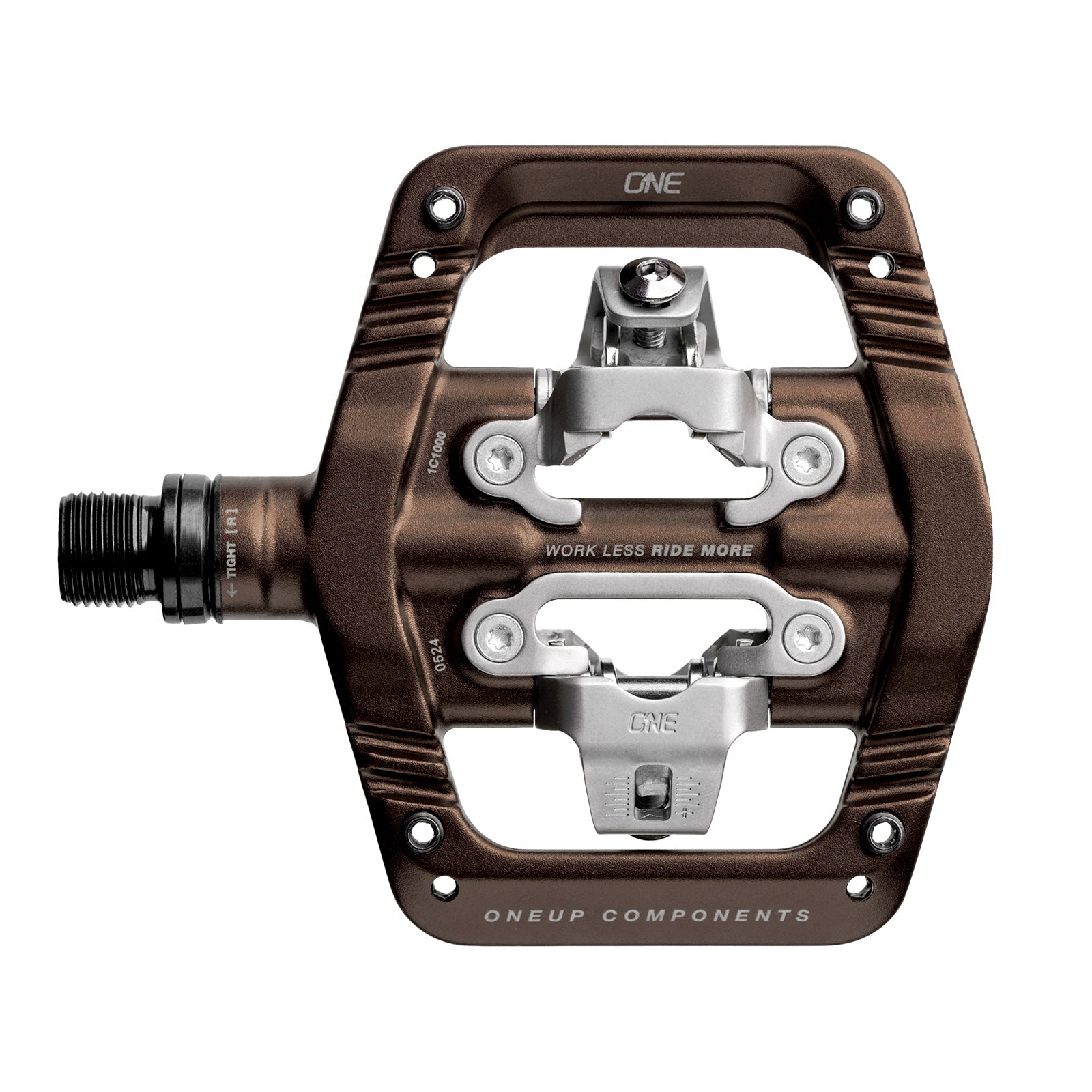

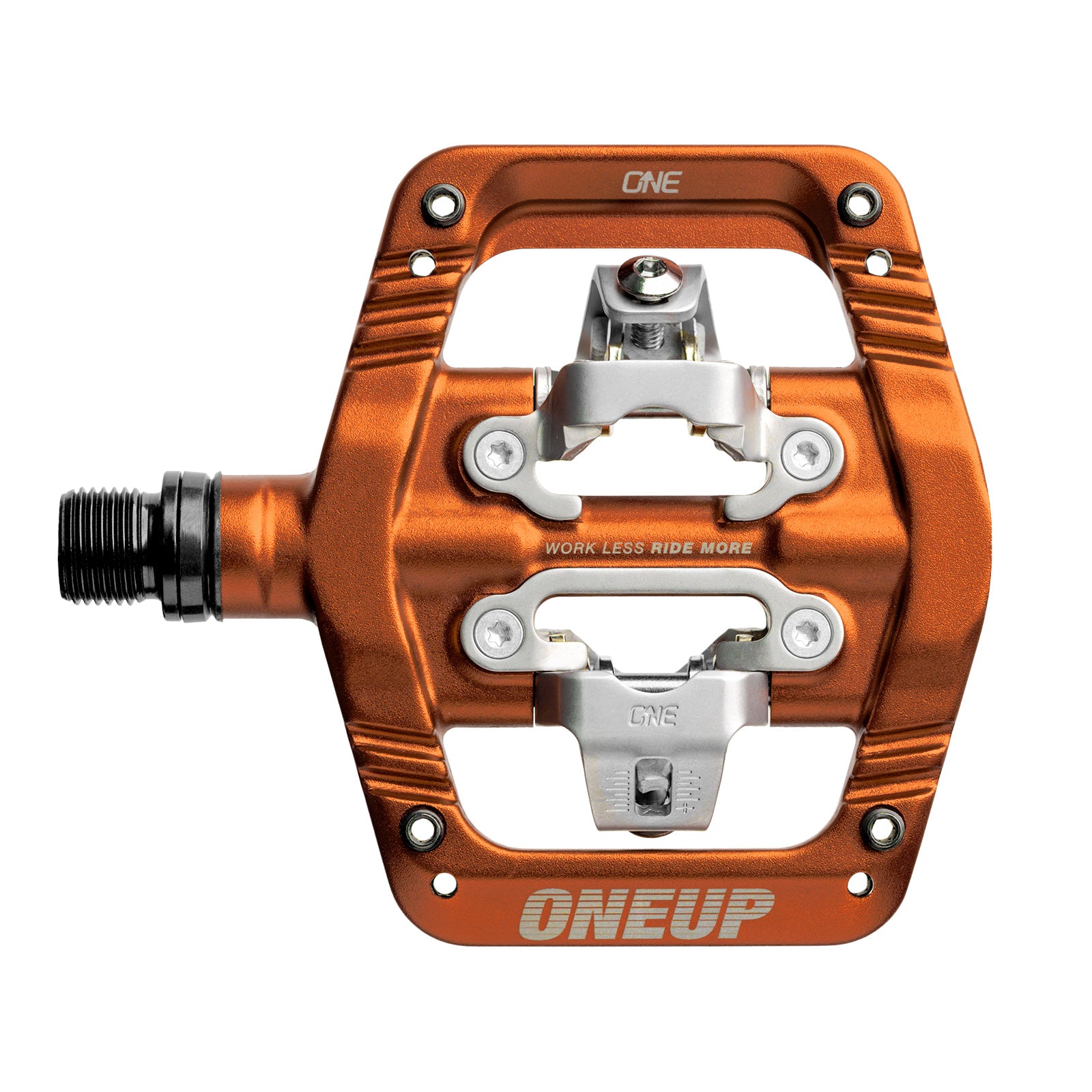

  • Size: 80mm x 90mm (W x L)
  • Stance width: 57.5mm (centre of clip to outside of crank face)
  • Float: 5° (12° release angle)
  • Cleats: SPD Compatible (includes 1mm cleat spacers for shoe tuning)
  • Bearing configuration: Inboard Igus Bushing and 3x outboard sealed cartridge bearings
  • Axle: Chromoly Steel with Black ED coating
  • Pins: Hollow threaded pins (self cleaning hex through hole)
  • Colours: Black, Red, Green, Blue, Orange, Purple, Gold, Bronze
  • Suitable for: XC, DH, Trail
  • Compatible with Shimano Cleats

What's in the box?

  • 2x Clip Pedals (1x Left, 1x Right)
  • 4x Installed hollow threaded pins per side (16x pins total)
  • 2x OneUp Cleats with included hardware
  • 2x Cleat Spacers
  • 1x Pedal Bearing Nut Tool

Things you should know

  • Comes with SPD™ compatible cleats and 1mm cleat spacers for shoe fit tuning.
  • Hollow, removable traction pins offer fine-tuning of grip and support, with a mud-clearing design that can be installed or removed from either side of the pedal.
  • Included Pedal Bearing Nut Tool allows you to easily disassemble, clean, and grease your axle system.

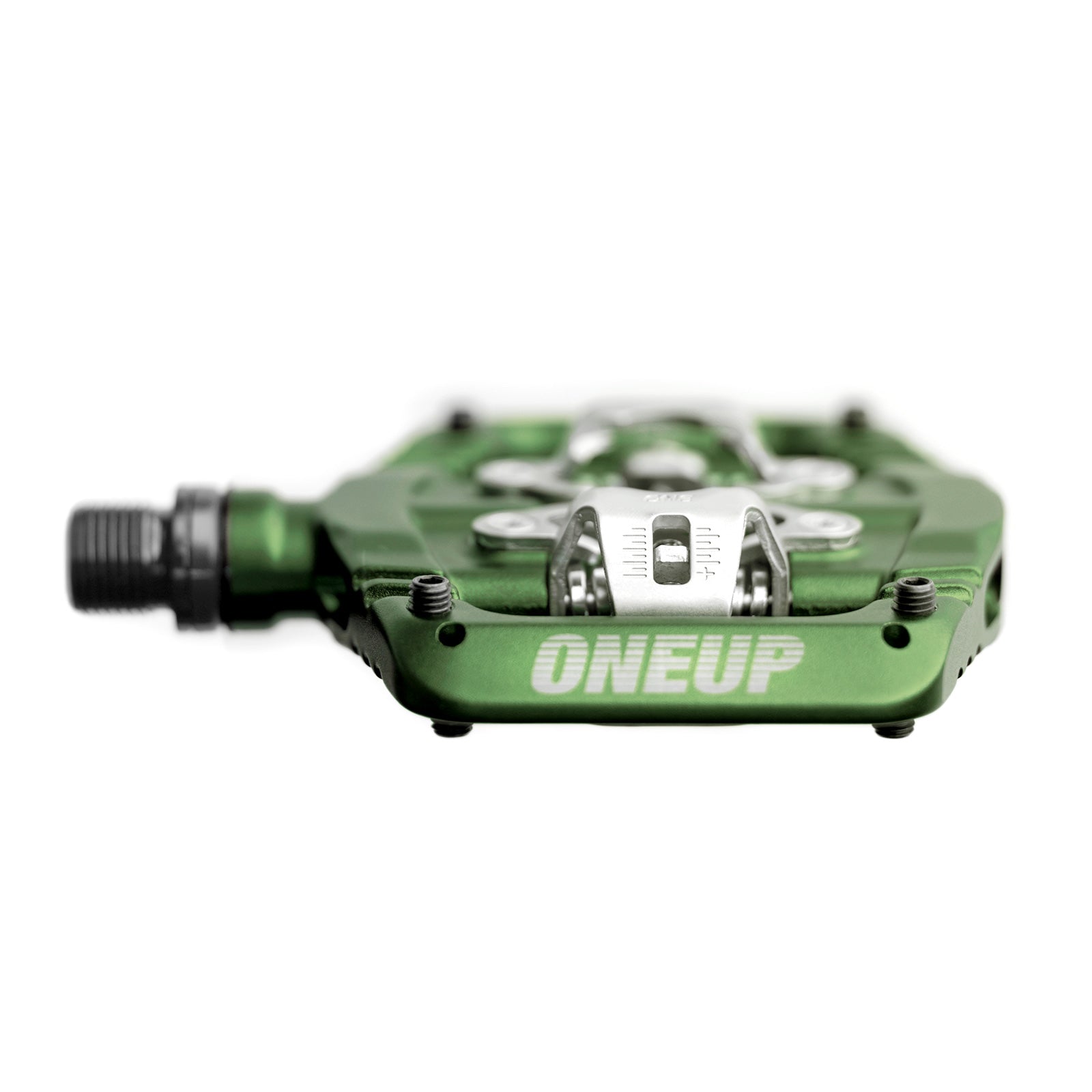

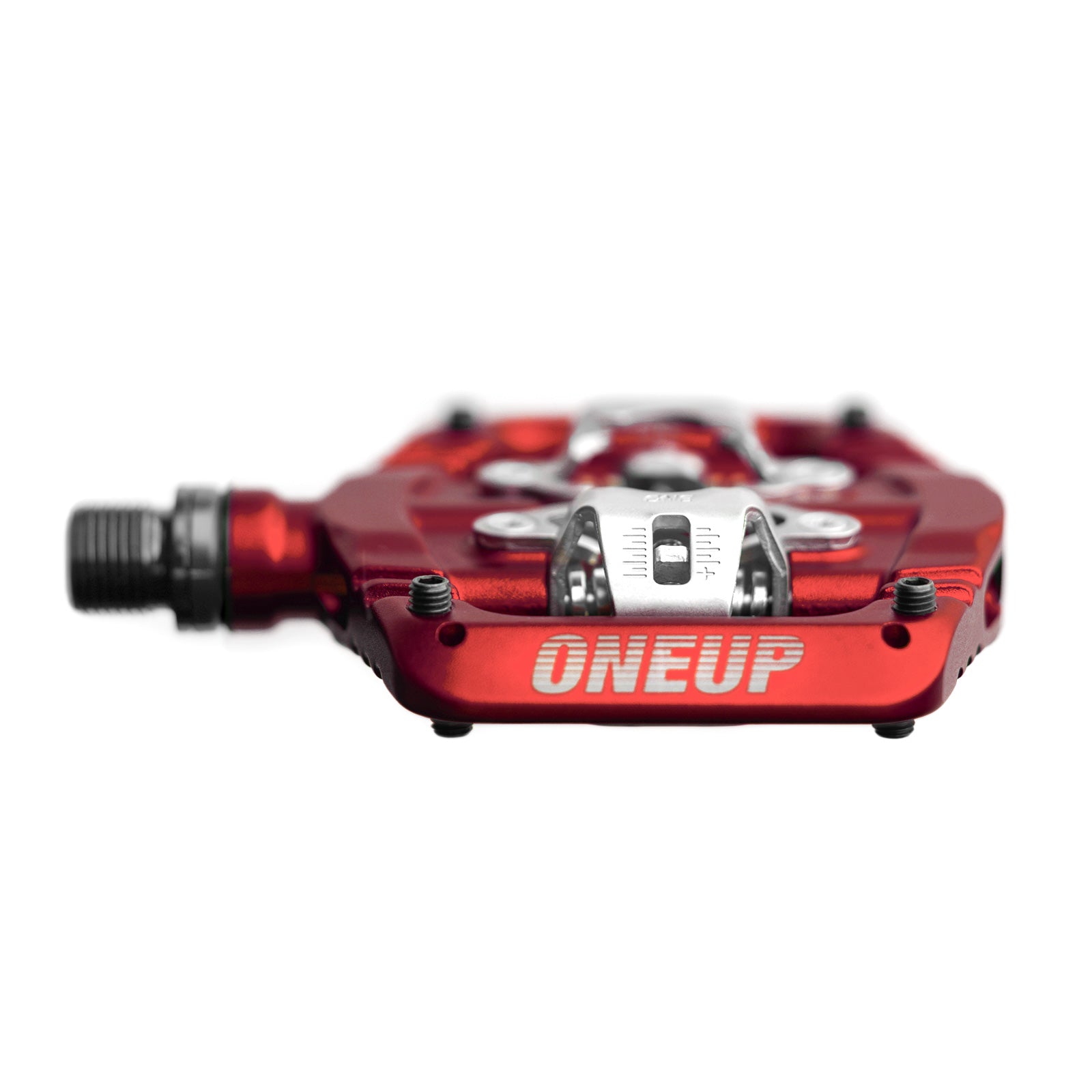

  • Custom, Stainless Steel, SPD™ Compatible Binding offers a locked-in feel with no unwanted play, and works with OneUp's own cleats and Shimano SPD™ cleats.
  • 5 degrees of float and 12 degree release angle.
  • 1 year manufacturer warranty.

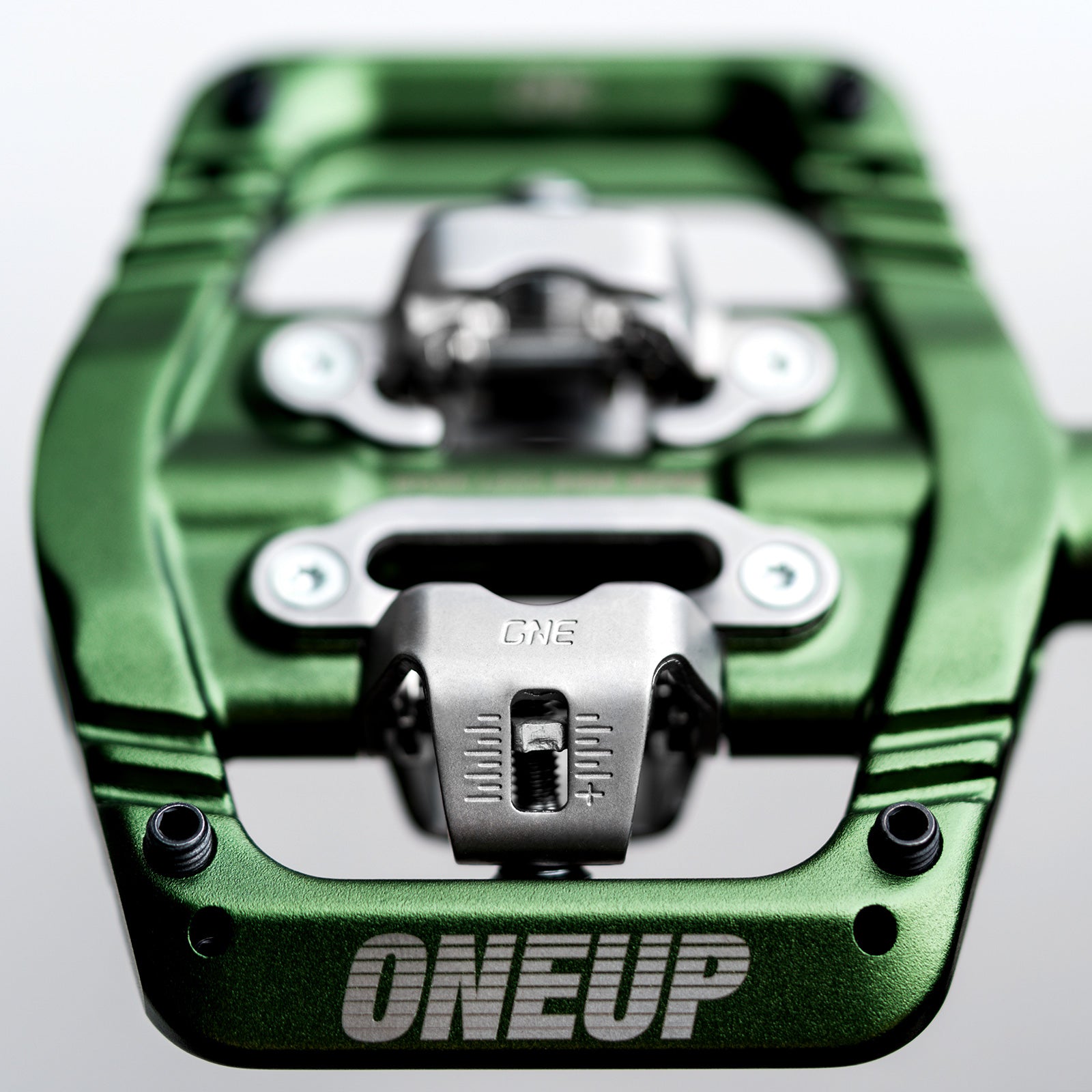

  • Wide-range release tension adjustability is secure enough for racers, yet forgiving enough for beginners, with an indicator to easily match the tension on all four bindings.
