Title CR1 Spindle - Black

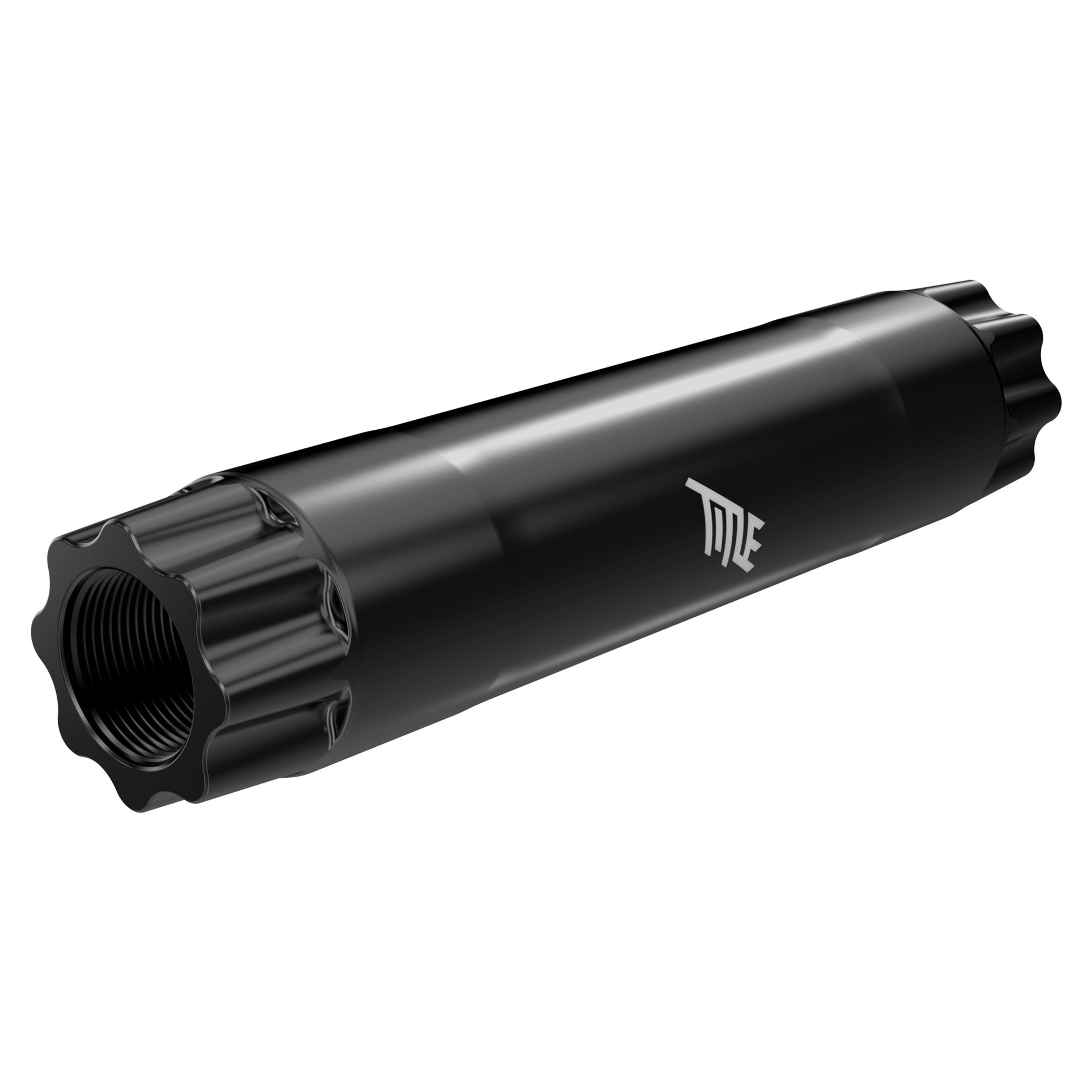

The CR1 spindle is available in three sizes to suit every application, from dirt jump to downhill. Machined from 7075 T6 aluminium and finished in anodised matte black or chrome, it pairs directly with the CR1 crank platform and is compatible with SRAM Dub 29mm bottom brackets only. Choosing the correct spindle depends on the bike's frame and drivetrain setup — the 130mm suits dirt jump and non-boost bikes, the 136mm covers most modern trail and enduro builds with boost spacing, and the 145mm is designed for downhill bikes. If unsure which spindle is right, check the bike manufacturer's website for specific sizing and spacing.

Specifications

• Machined from 7075 T6 aluminium
• Anodised matte black or chrome finish
• 29mm spindle diameter
• Aluminium pre-loader
• Compatible with SRAM Dub 29mm bottom bracket only
• 130mm – DJ (135 / 142mm hub spacing) – chainline: 52mm, Q-factor: 168.5mm, arm clearance: 70.25mm

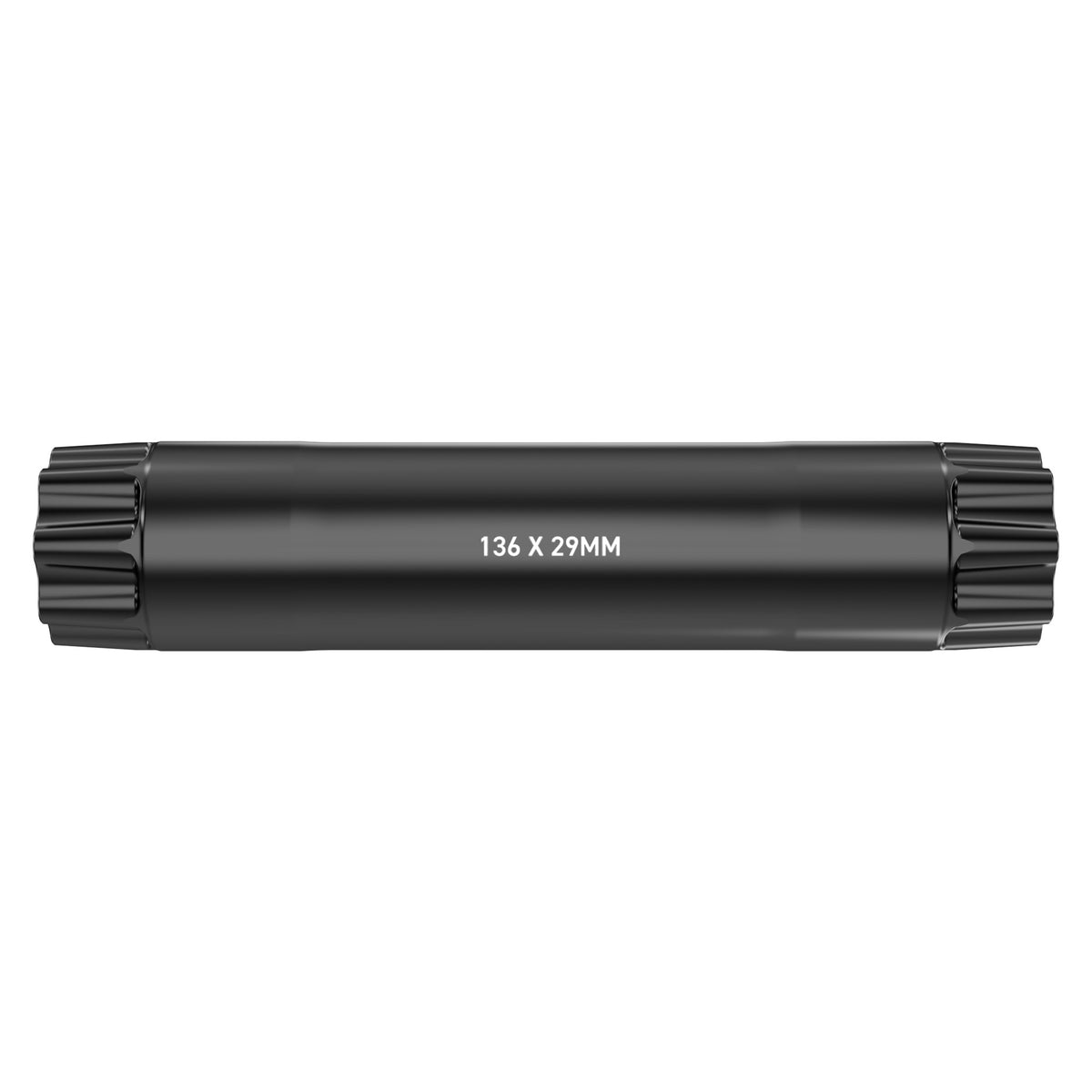

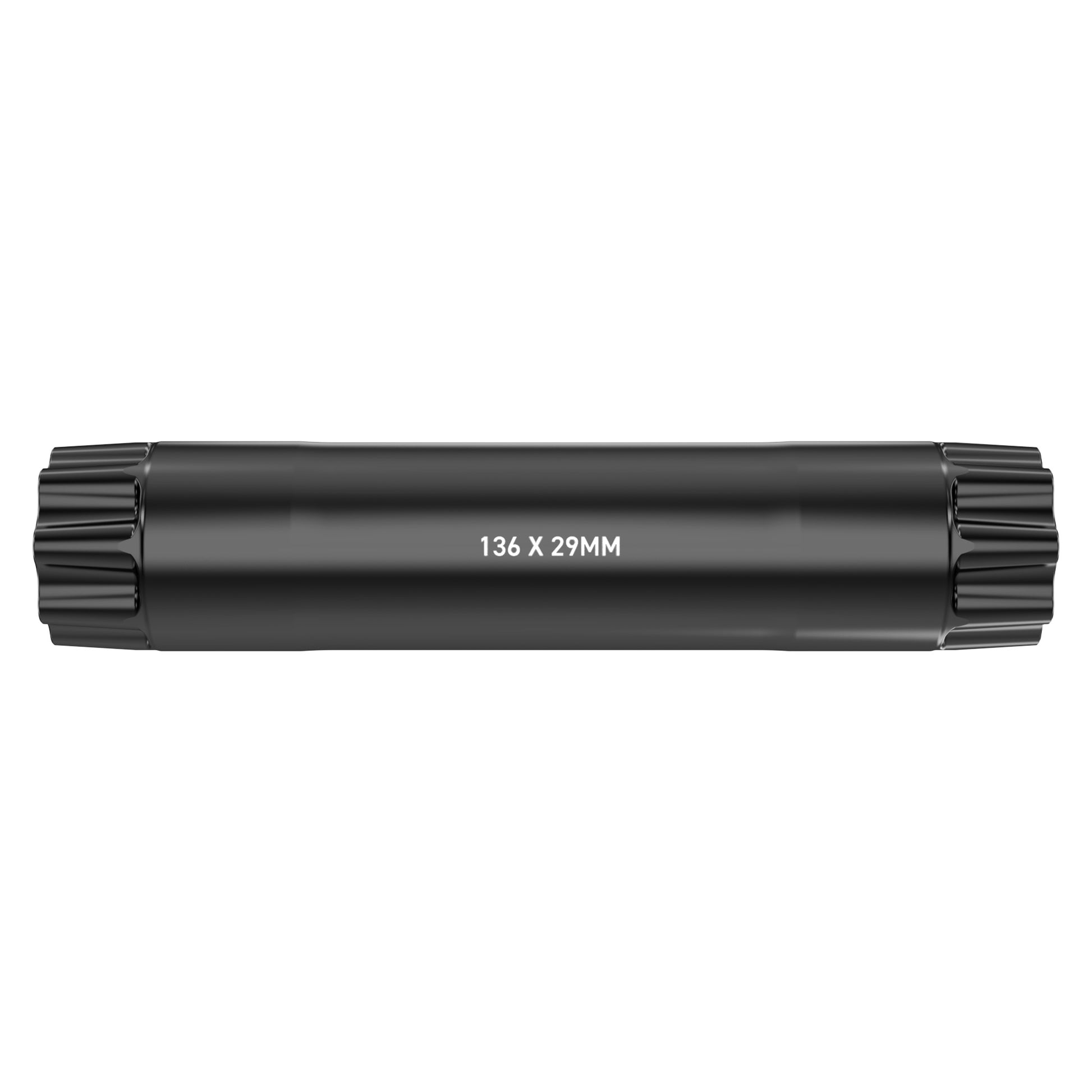

• 136mm – enduro (148mm boost hub spacing) – chainline: 55mm, Q-factor: 174.5mm, arm clearance: 73.25mm
• 145mm – DH (152 / 157mm hub spacing) – chainline: 56.5mm, Q-factor: 183.5mm, arm clearance: 77.75mm
