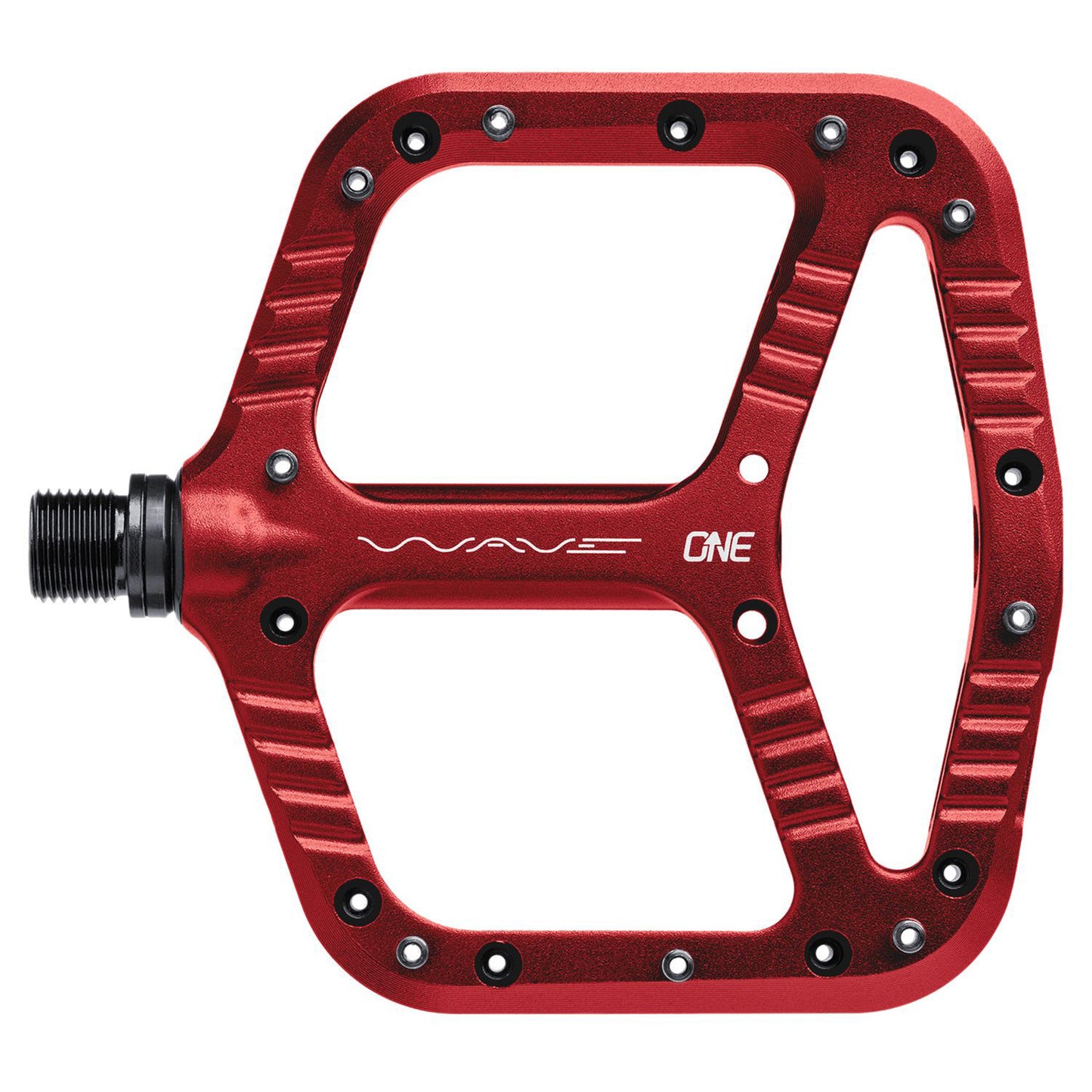

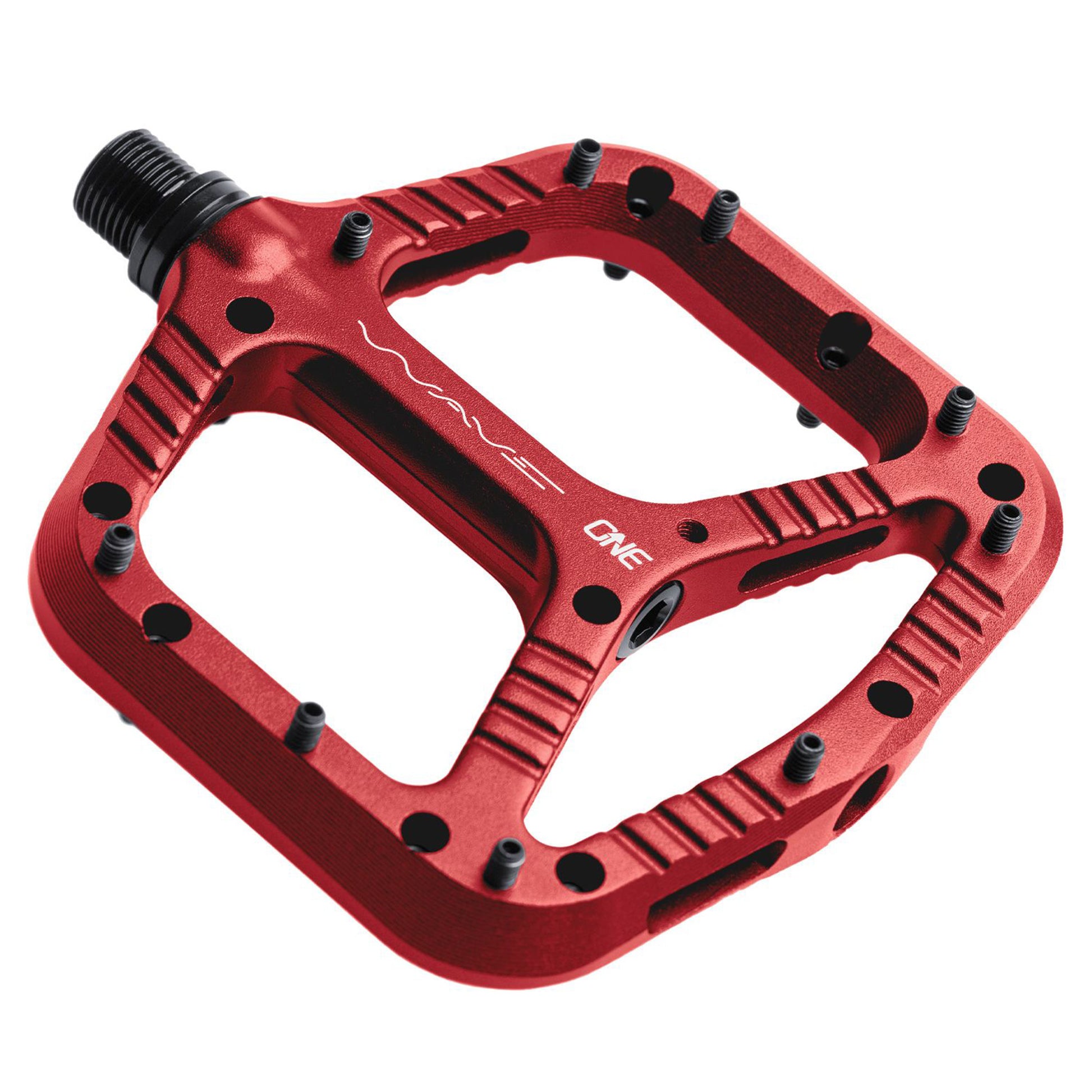

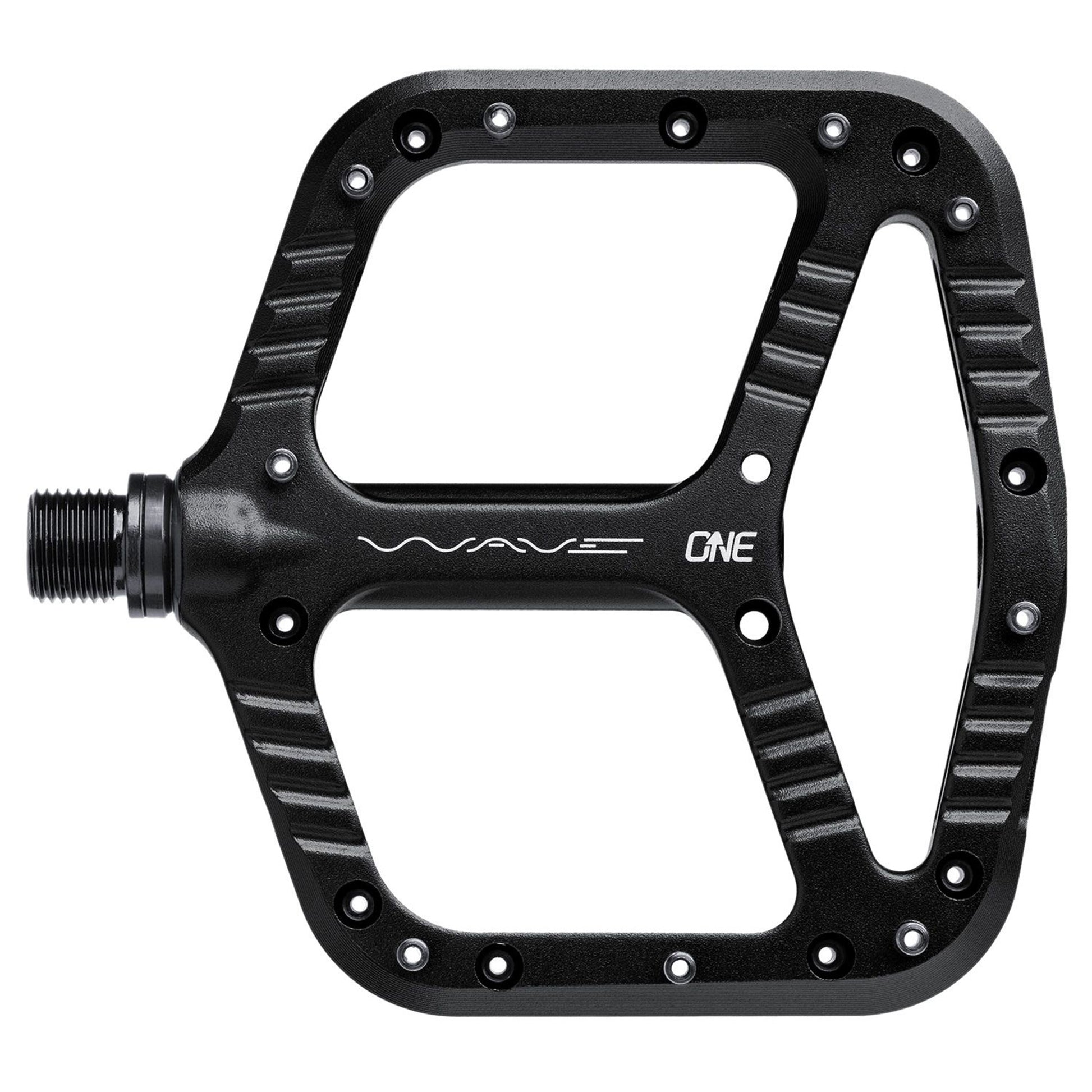

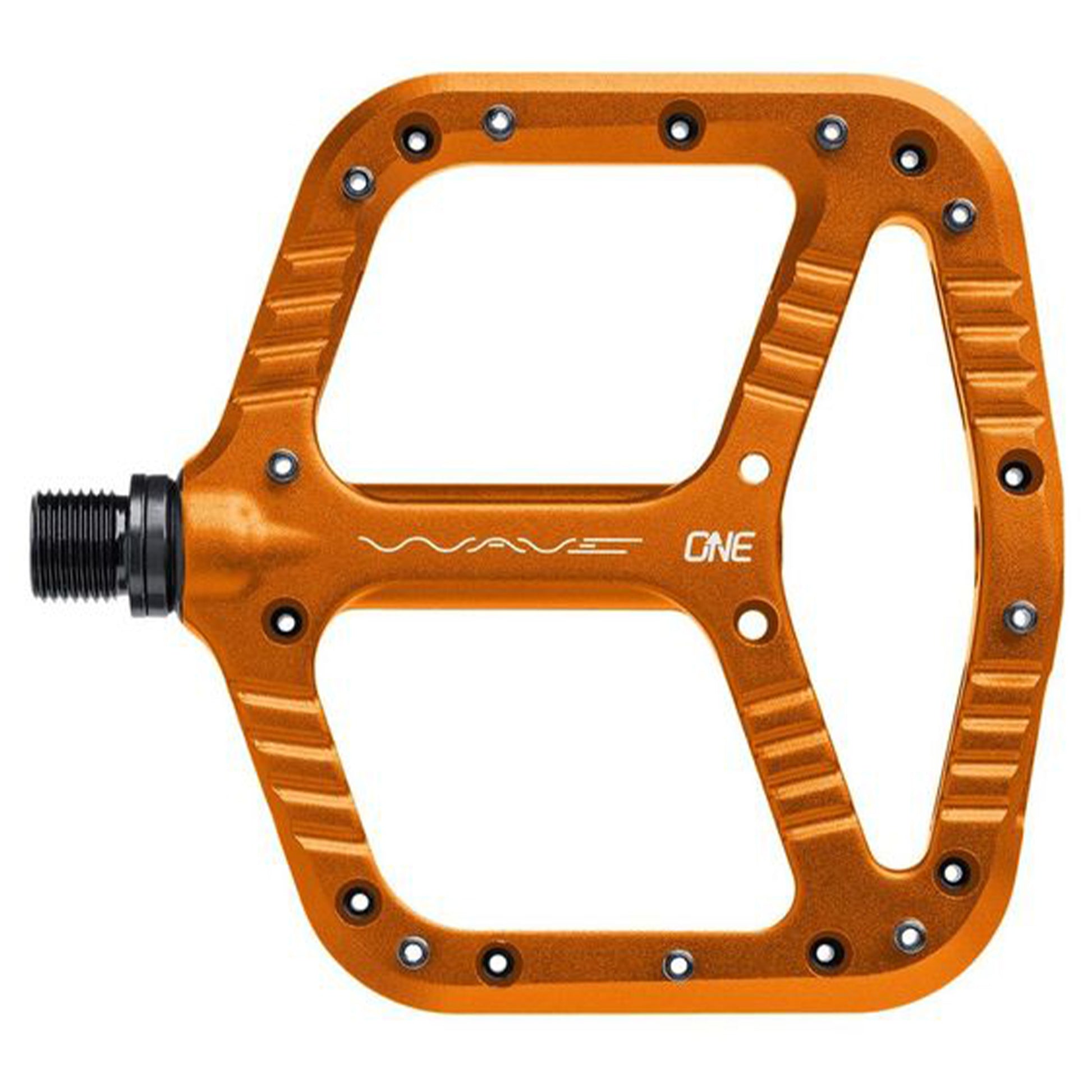

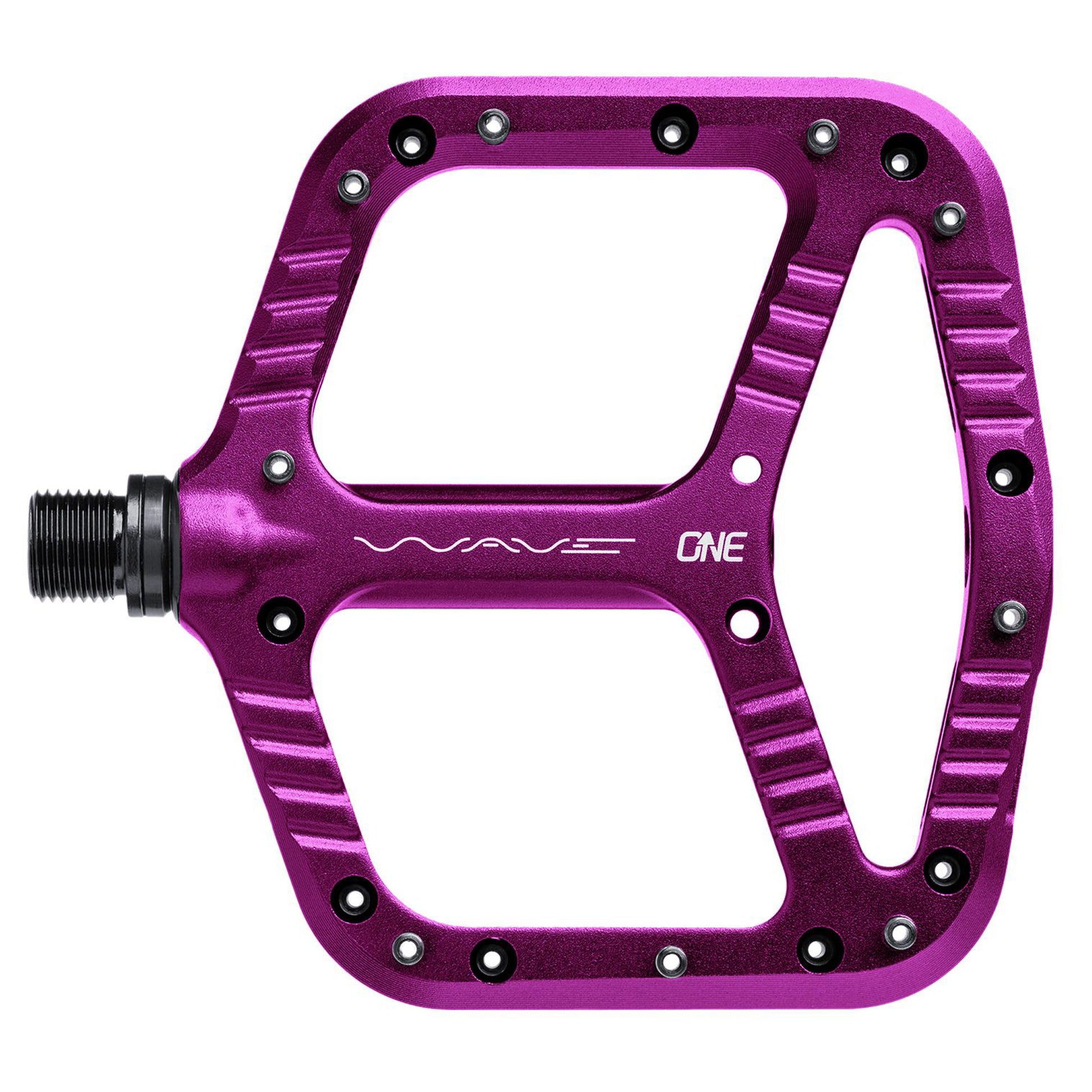

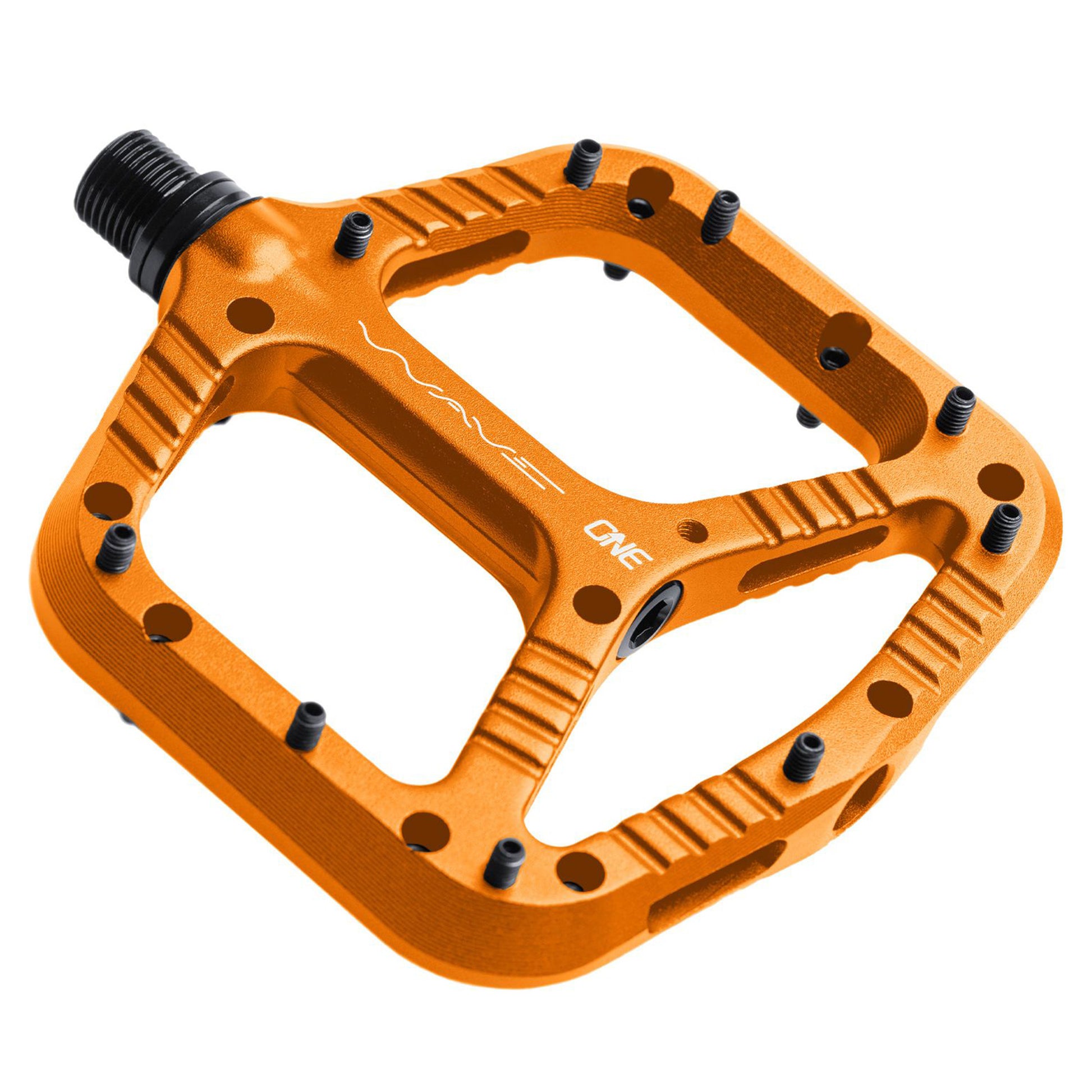

OneUp Wave Pedals

Get ultimate grip and bike control with our innovative Wave profile.

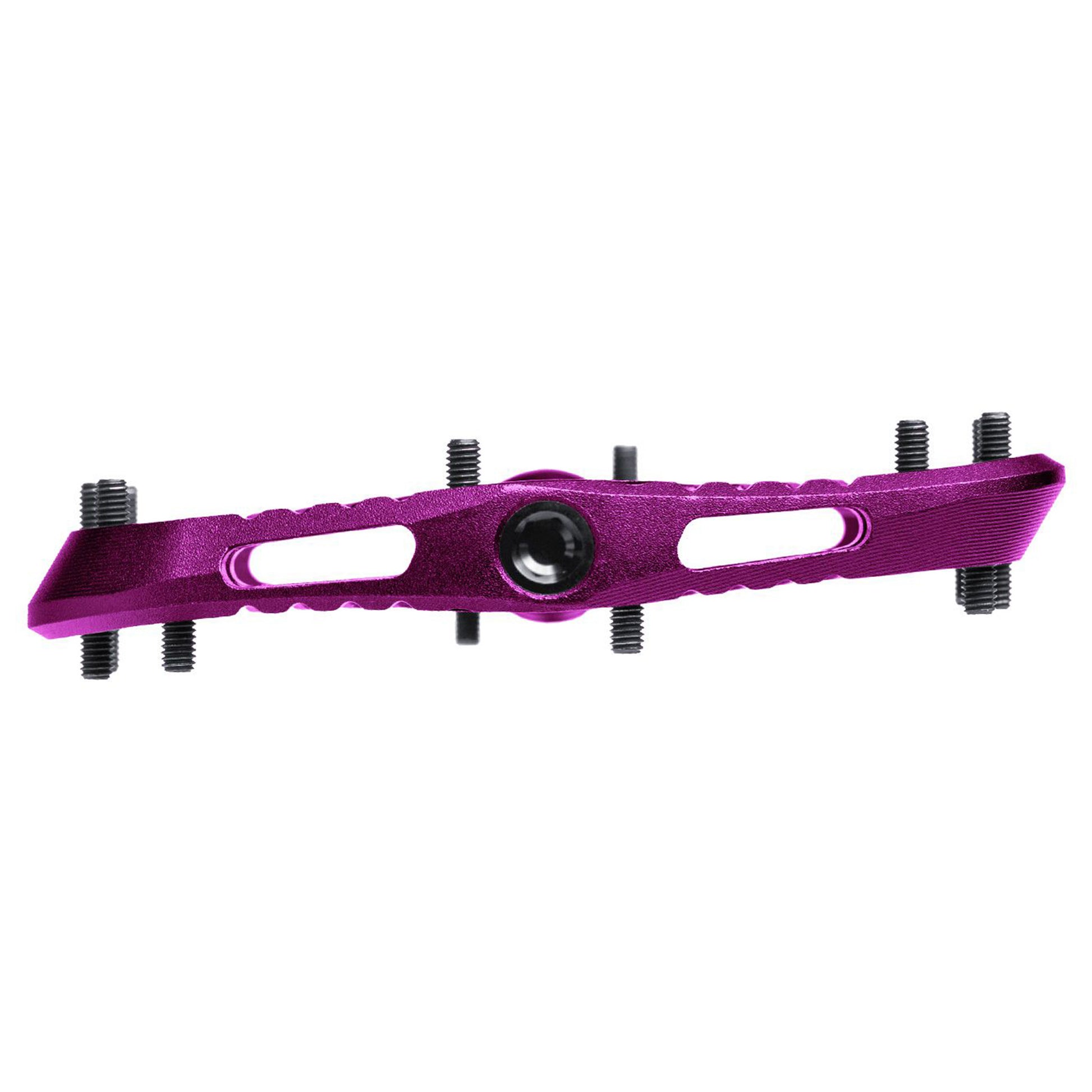

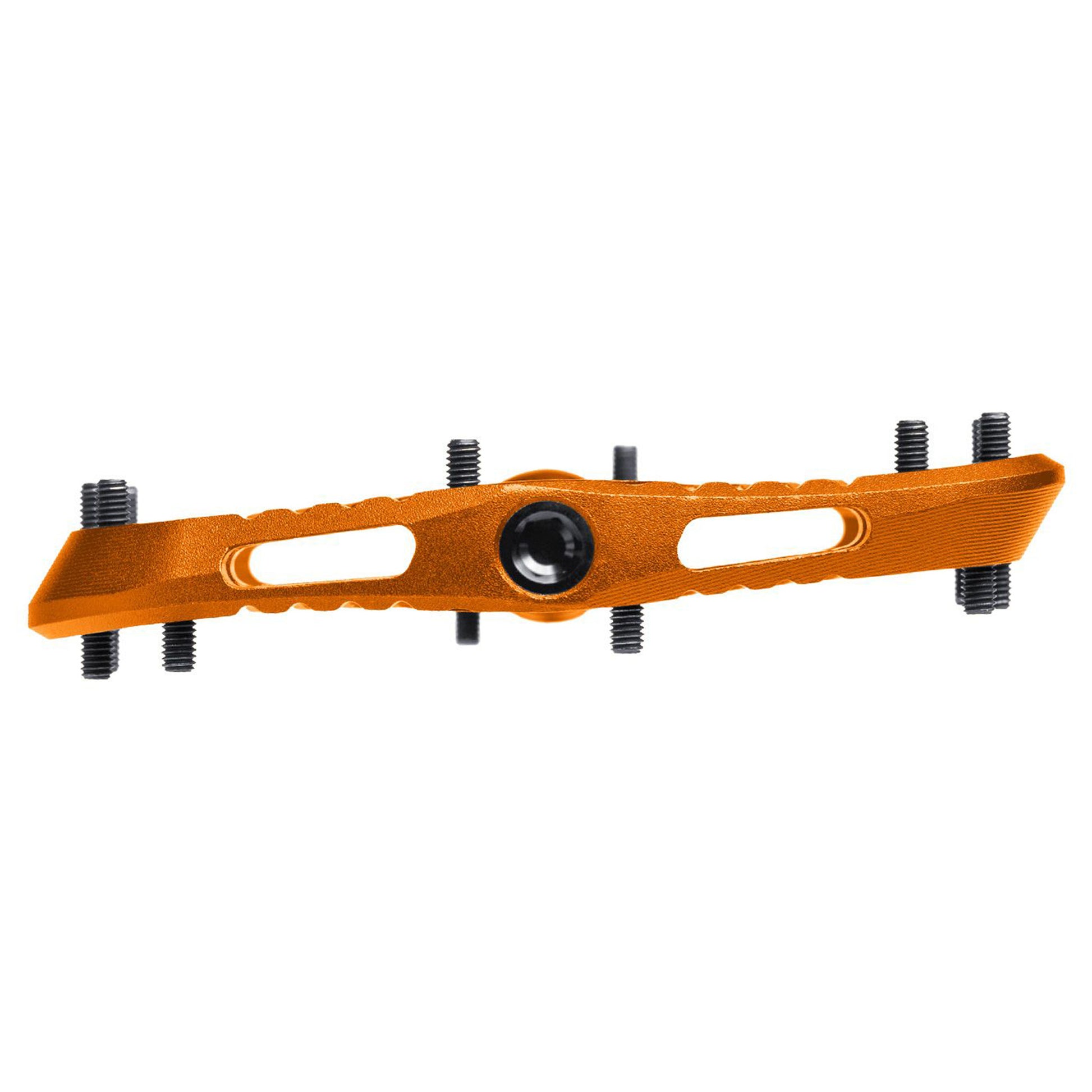

Most flat pedal profiles are either convex or concave. Wave is a patented hybrid convex/concave shape that promotes an aggressive heels-dropped riding position and gives you a more natural pedal stroke when seated. With Wave, your foot is being held by the shape of the pedal - not just the pins.

It's time to ride the Wave.

Features

• Convex + Concave = Wave
• The concave front of the pedal hugs the ball of your foot. The sloped back half promotes an aggressive heels-down foot position for more power and control.

The Story of Wave

After thousands of hours on the bike, 8 design iterations and 4+ years of testing, we introduced a new take on flat pedal design.

New Axle System

Wave uses a chromoly axle with igus™ bushings and three bearings. They're fully serviceable and come with our Pedal Bearing Nut Tool.

Product Specs

• Weight: 355g (Pair)

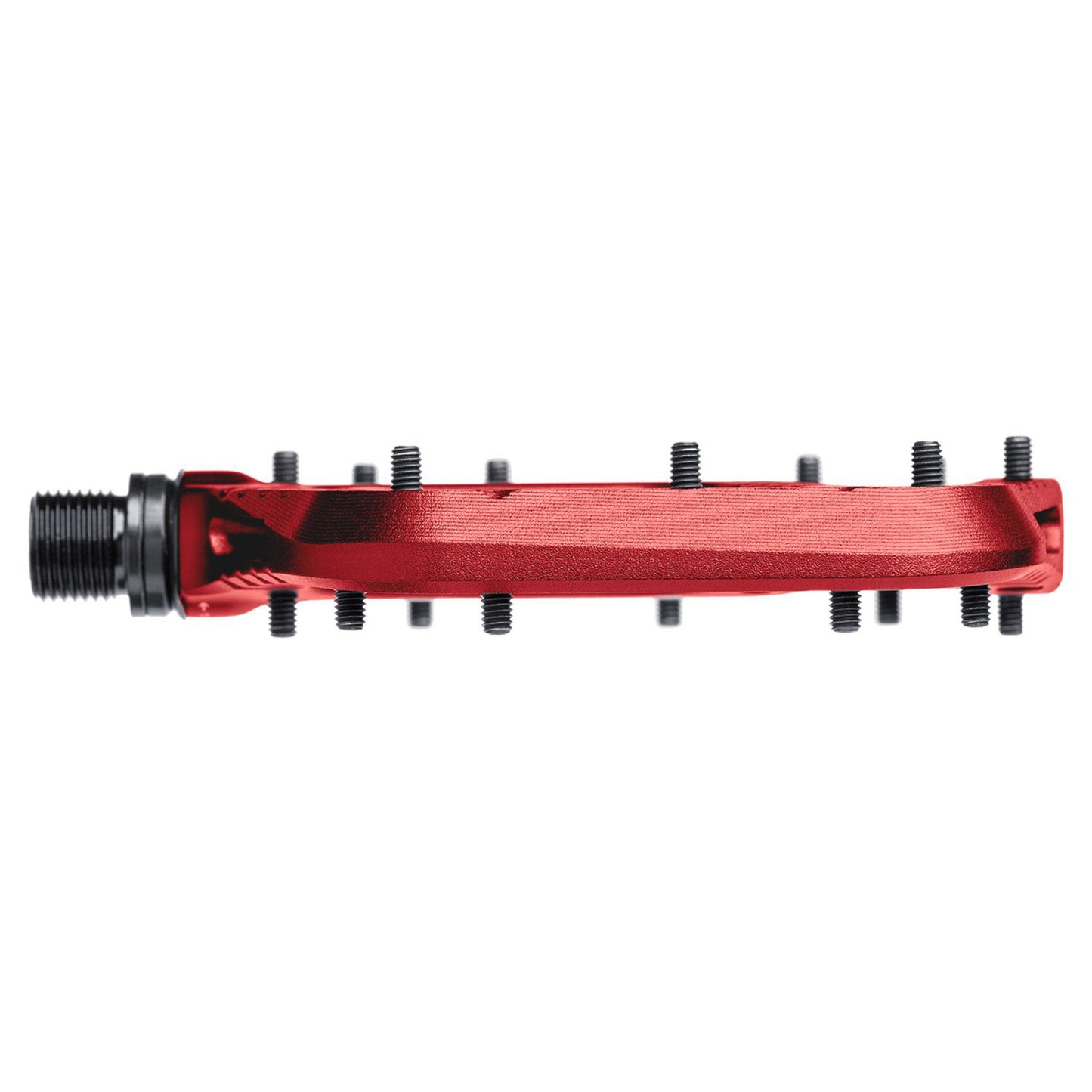

• Thickness: Axle 14.2mm / Edges 11.5mm
• Size: 107mm x 110mm (W x L)
• Bearing configuration: Inboard igus™ Bushing and 3x outboard cartridge bearings
• Body: Forged and CNC'd 6061 Aluminum Body
• Axle: Chromoly Steel with Black ED coating
• Pins: M4 Hollow Pin 10 x pins per side (self-cleaning hex through hole)

What's in the Box

• 2x Wave Pedals (1x Left, 1x Right)
• 9x Installed M4 hollow threaded pins per side (36x pins total)
• 10x Spare/Uninstalled M4 hollow threaded pins
• 1x Pedal Bearing Nut Tool

Things you Should Know

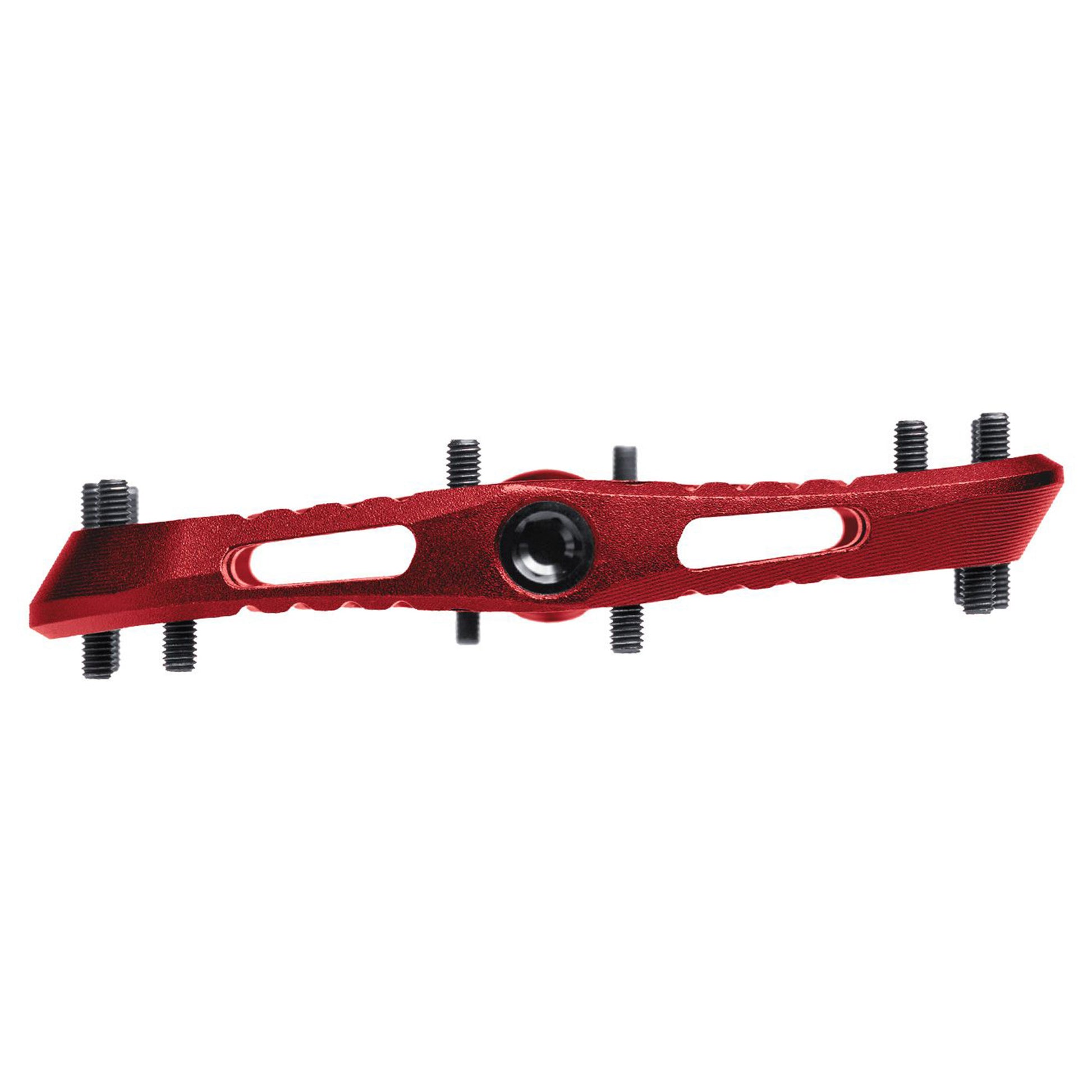

• Convex + Concave = Wave: The front half of the pedal has a concave profile that hugs the ball of your foot for unmatched grip. The back half of the pedal is sloped to promote an aggressive heels-down foot position for more power and control.
• Angled Pins: Because the Wave design naturally encourages your heels to drop, the pins are installed at an angle to be vertical when riding. This leverages the Wave profile and increases grip - without the need for longer pins.
• DH-Rated Axle: The Wave pedal uses a proven axle, bushing and bearing configuration for improved reliability — strong enough for all types of riding.
