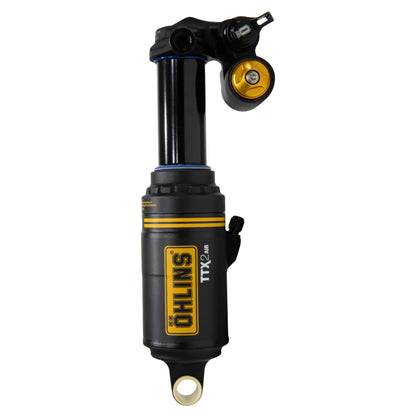

Ohlins TTX22Air M.2 Shock

The Öhlins TTX2Air m.2 Shock builds on the proven twin-tube damping platform of its predecessor, combining a refined damper design with a high-volume double-can air spring. Designed for modern, more progressive suspension linkages, the m.2 delivers improved small-bump sensitivity, reduced friction, and a smoother, more coil-like feel on the trail.

Internally, the m.2 features updated seals and a new bladder system that enhances traction, comfort, and rear-wheel control. This allows the wheel to track terrain more precisely through rough sections, maintaining grip and stability even under high load. The revised damper architecture offers a more consistent and predictable ride character, with superior traction and balance across a wide range of conditions.

The improved pedal platform provides better support on technical climbs and under hard acceleration, while optional remote compatibility allows on-the-fly control via systems such as the Öhlins 3-Mode Remote, Scott TwinLoc, or Orbea Squidlock. A redesigned spacer system makes it quick and easy to fine-tune the air volume in the positive chamber, and stroke adjustment can now be done without removing the end-eye — making setup faster and simpler than ever.

Externally, the TTX2Air m.2 features a newly designed adjustment knob for quicker, more intuitive tuning and refreshed graphics for a clean, modern finish. With increased sensitivity, reduced friction, and a broader range of tuning options, the m.2 represents the most refined, balanced, and capable TTX2Air to date.

Features

• Highly adjustable TTX compression valve technology
• Double-can design with increased air volume in both positive and negative chambers
• Adjustable high-speed compression (3 clicks)
• Adjustable low-speed compression (10 clicks)
• Adjustable low-speed rebound (12 clicks)
• Improved climb mode for efficient pedalling
• Race-proven damping architecture to suit any linkage design
• Air spring volume spacers included
• Available in trunnion metric lengths
• Redesigned adjustment knob for faster, more intuitive tuning
• Compatible with remote systems (7.5mm cable pull per click)
• New spacer system for simplified air-volume and stroke adjustments
• 210 x 55 / 52.5 / 50 / 47.5mm sizes
• Maximum air pressure: 325 psi
• Delivered with the longest stroke and parts to alter stroke

Specs

• Damper: TTX twin-tube technology
• Spring: Air (double-can design)
• Adjustments: High-speed compression – 3 clicks, low-speed compression – 10 clicks, low-speed rebound – 12 clicks, climb mode
• Remote compatibility: Yes – supports 7.5mm cable pull remotes
• Mounting: 210mm trunnion eye-to-eye length, stroke adjustable with included spacers
• Maximum air pressure: 325 psi
• Weight: Varies by size

Compatibility

Designed for trail, enduro, and eMTBs with more progressive linkage systems. Check eye-to-eye length and stroke to ensure fitment with your specific frame.

Installation Notes

Professional installation recommended. Ensure correct spring rate, mounting hardware, and torque settings for optimal performance and safety.
