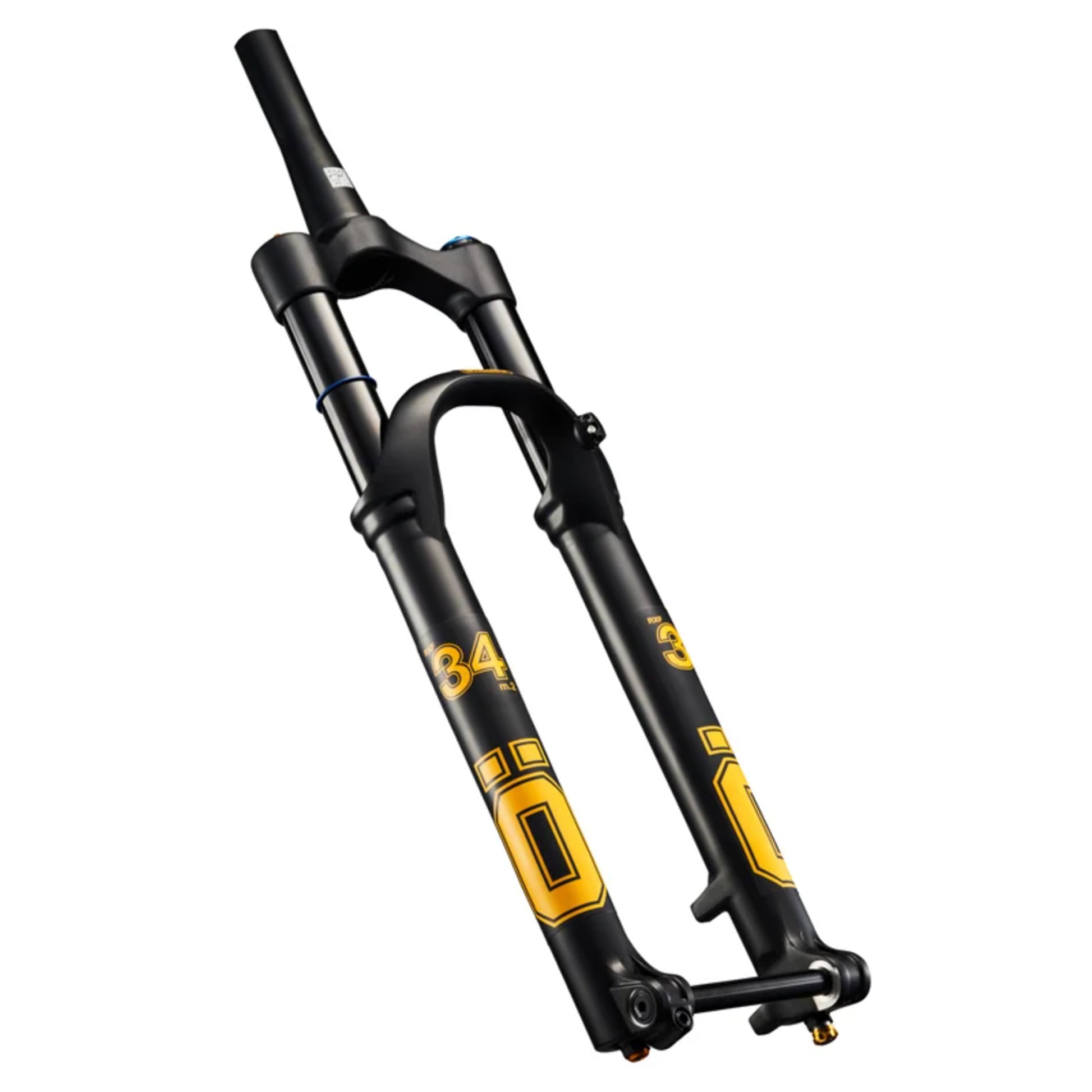

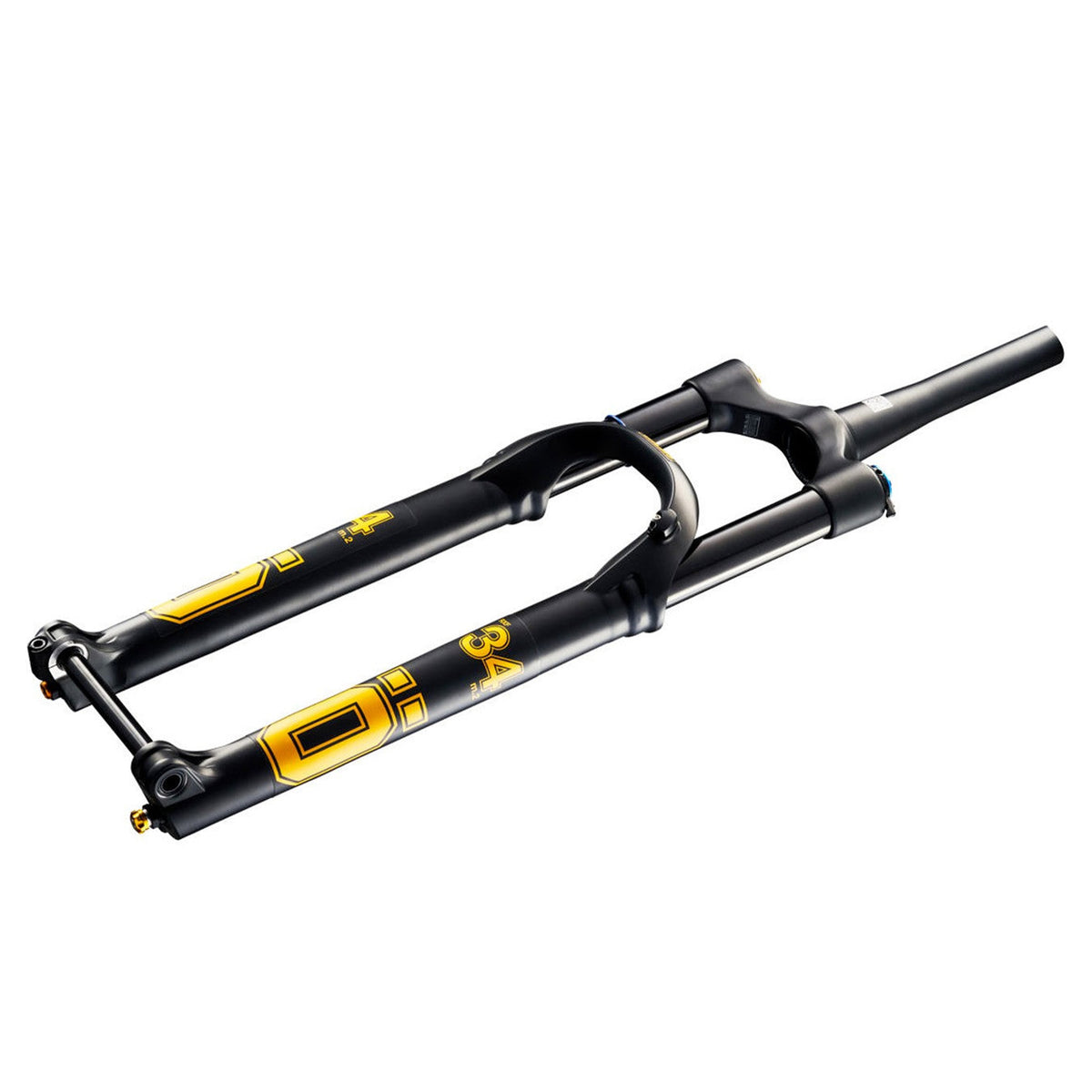

Ohlins RXF34 M.2 Air Fork - Black

The Ohlins RXF34 m.2 Air Fork is designed for riders who cover lots of ground fast, offering a lightweight and highly progressive 120-130 mm setup optimised for modern 29er trail bikes. Weighing just 1698 g, this fork uses a newly designed air spring paired with the trail-optimised OTX18 damper, delivering excellent sensitivity, traction, and control on demanding trails.

The air spring features a positive chamber adjustable with volume spacers, and a self-adjusting negative chamber that ensures plush initial feel and superb small-bump sensitivity. The chassis is tuned for flex and impact resistance, with increased air volume in the lower legs to improve spring performance and fine-tune feel. Ohlins' floating axle design reduces friction and enhances overall stiffness, while the fork's 34 mm stanchions provide confident handling.

With 15 clicks of low-speed compression and rebound adjustment and 3 clicks of high-speed compression, the RXF34 m.2 offers plenty of fine-tuning potential to suit any trail. Designed for eMTB approval, the fork is also prepared for 180 mm discs (203 mm max) and can handle up to a 29 x 2.6" tyre.

Features

• Trail-optimised OTX18 damper
• Lightweight air spring
• 34 mm stanchion tube
• 29" wheel size
• 44 mm offset
• 120-130 mm travel
• Floating axle for reduced friction
• eMTB-approved
• Supports 180 mm discs (203 mm max)
• Fits up to 29 x 2.6" tyres
• 531 mm axle-to-crown at 120 mm travel

Specifications

• Wheel size: 29"
• Travel: 120-130 mm
• Stanchion diameter: 34 mm
• Offset: 44 mm
• Axle: 15x110 mm Boost
• Damper: OTX18
• Spring: Air (positive and self-adjusting negative chambers)
• Adjustments: 15 clicks low-speed compression, 3 clicks high-speed compression, 15 clicks rebound
• Weight: 1698 g
• Maximum rotor size: 203 mm

Compatibility

Designed for modern trail and downcountry bikes with Boost hub spacing. Check fork length, offset, and axle-to-crown height to confirm fitment with your specific frame.

Installation notes

Professional installation recommended. Ensure correct steerer cutting, crown race pressing, and suspension setup for optimal performance and safety.
