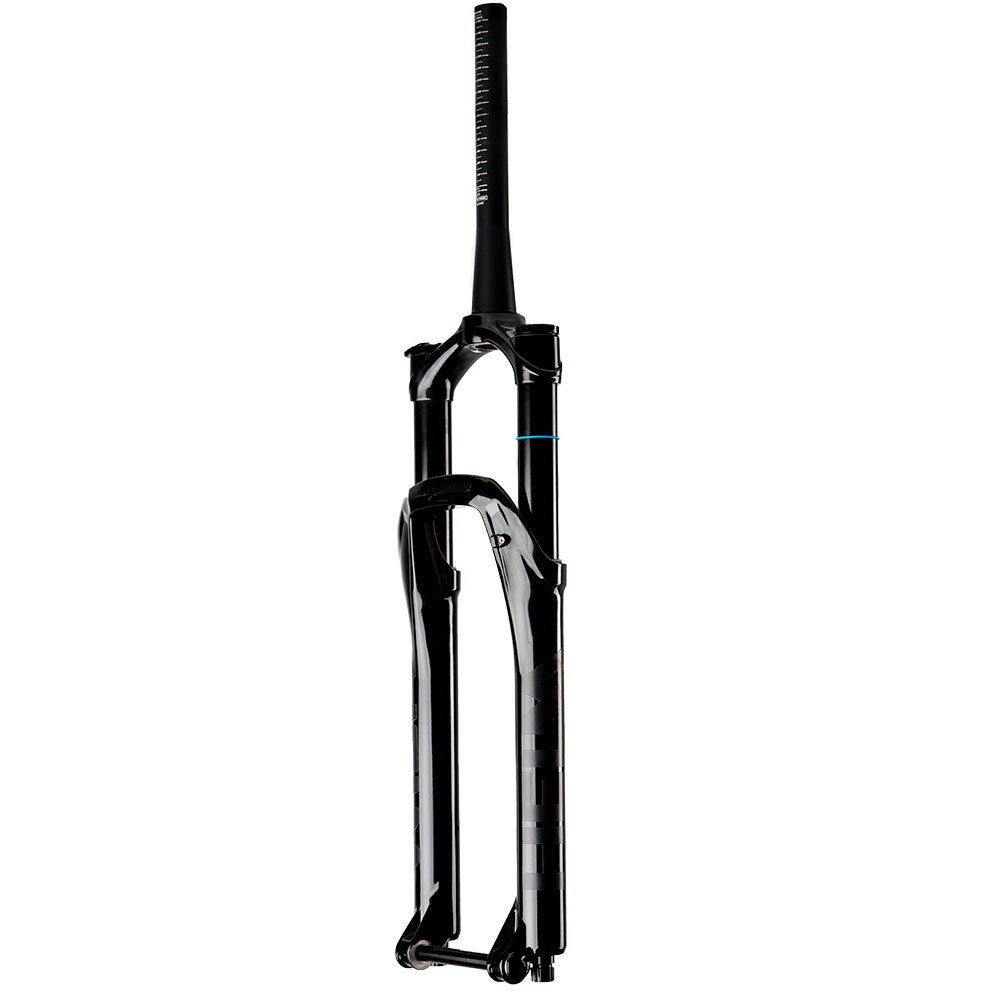

Cane Creek Helm Mark II Air Sprung Fork
Cane Creek Helm Mark II Air Sprung Fork
- Damper Details:
- MK II
- Hub Fitment:
- 15x110mm Boost
- Amount of Travel:
- 160mm Travel
- Colour:
- Gloss Black
- Fork Offset:
- 51mm
- Steerer Size:
- 1 1/8th - 1.5 Inch Tapered
- Wheel Fitment:
- 29 Inch
Regular price
$1,598.95
Regular price
Sale price
$1,598.95
Unit price
per
Tax included.
SKU:
Special Order Notice
Items in your order marked Ships in 10-14 Days are Special Order items, which means we have to order the item(s) for you from our supplier. Your whole order will be held until all items are in stock and will ship in 10-14 days.
If you are ordering other items which are in stock, you may wish to order those separately so they ship without delay.
Couldn't load pickup availability
The original Helm fork impressed many riders with its stiff chassis, supportive feel, and a host of innovative features. It was a fork that liked it rough and performed best at high speeds under hard-charging riders.
The Mark II retains many of the great features of the original Helm, but Cane Creek has tweaked, tuned, and improved the damper and air spring to create a fork with the ideal balance of buttery smoothness and support.
The fork is available in both air and coil sprung versions. You are currently looking at the air-sprung fork.
Features:
Spring type: This fork uses a manually equalised air spring. This differs from most other forks in that you will need to equalise the positive and negative air springs by pressing a release valve at the base of the fork. This requires an extra step in the setup process but it does provide you with extra potential to tune the fork to your liking by varying the pressure between the two air springs.
Wheel size compatibility: Available in options to suit 29/27.5+ and 27.5" wheels.
Weight: 2080g (29 Air)
Fork offset:
Volume adjustability: Air volume can be changed internally without the need for spacers via an indexed 8 position air volume adjustment system.
Stanchion diameter: 35mm
Axle size and style: The fork uses Cane Creek's "D-Loc" axle system. 15mm Bolt-on thru-axle. 15mm x 110 BOOST spacing
Steerer tube standard: Standard 1.5" to 1 1 1/8" taper
Brake mount style: (and size): 180mm post mount
Brake rotor compatibility (minimum / maximum):
The Mark II retains many of the great features of the original Helm, but Cane Creek has tweaked, tuned, and improved the damper and air spring to create a fork with the ideal balance of buttery smoothness and support.
The fork is available in both air and coil sprung versions. You are currently looking at the air-sprung fork.
Features:
- Lighter compression tune to improve sensitivity
- New SKF low friction seals
- 2.5wt Motorex damper oil with 11% lower viscosity
- New friction reducing air spring material
- Increased air volume for better traction and suppleness
- New threadless air seal head for easier travel change
Spring type: This fork uses a manually equalised air spring. This differs from most other forks in that you will need to equalise the positive and negative air springs by pressing a release valve at the base of the fork. This requires an extra step in the setup process but it does provide you with extra potential to tune the fork to your liking by varying the pressure between the two air springs.
Wheel size compatibility: Available in options to suit 29/27.5+ and 27.5" wheels.
Weight: 2080g (29 Air)
Fork offset:
- 29/27.5+ is available in 51mm and 44mm offset options.
- 27.5" is available in 44mm offset only.
- 29/27.5+: 573mm
- 27.5": 553mm
- 29/27.5+: 2.5"
- 27.5": 3.0"
- 29/27.5+: Internally adjustable between 130mm and 160mm
- 27.5": Internally adjustable between 130mm and 170mm
- High-speed compression (10 clicks)
- Low-speed compression (17 clicks)
- Low-speed rebound (10 clicks)
Volume adjustability: Air volume can be changed internally without the need for spacers via an indexed 8 position air volume adjustment system.
Stanchion diameter: 35mm
Axle size and style: The fork uses Cane Creek's "D-Loc" axle system. 15mm Bolt-on thru-axle. 15mm x 110 BOOST spacing
Steerer tube standard: Standard 1.5" to 1 1 1/8" taper
Brake mount style: (and size): 180mm post mount
Brake rotor compatibility (minimum / maximum):
- Minimum: 180mm
- Maximum: Not stated.
