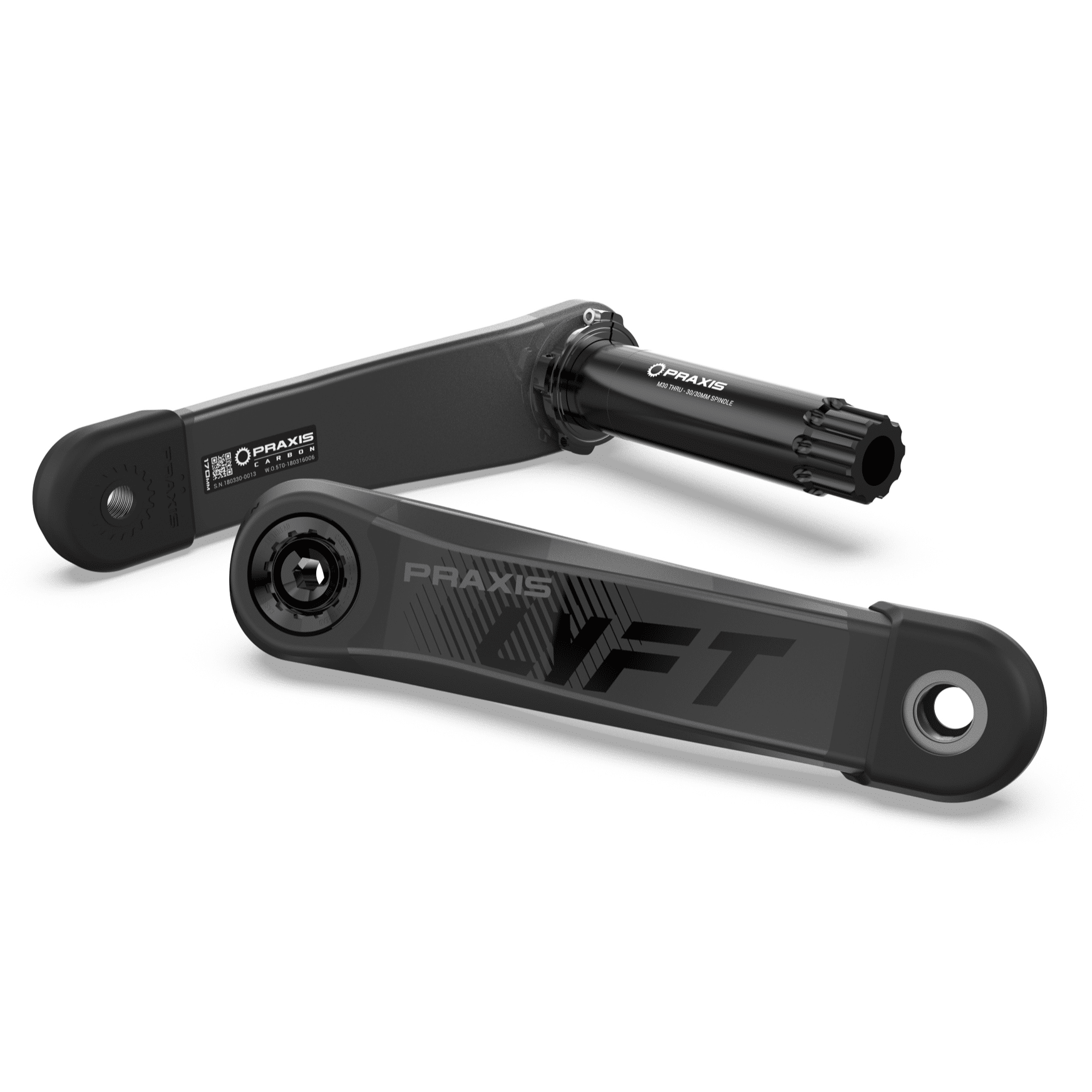

Lyft G2 Carbon Crankset

SPECIFICATIONS:

• BUY THIS IF: You want Praxis’ lightest weight Pro Level Carbon MTN cranks that utilises a 3-Bolt Direct Mount interface for Chainring.
• INTENDED USE: Cross Country and Trail Riding
• MATERIAL: Carbon Arms | Alloy M30-THRU spindle (30mm/30mm)
• AVG. WEIGHT:
• 412g: 165mm Arm Set
• 420g: 170 & 175mm Arm Set
• 1X RING:
• Any brand 3-Bolt Direct Mount 1X MTN ring can be used.
• The ring type/offset determines compatibility with any given MTN bike drivetrain.
• PRAXIS DM1X RINGS
• RING/CHAINLINE:
• 0mm Offset = 55mm CL
• 3mm Offset = 52mm CL "Boost"
• 6mm Offset = 49mm CL "Non-Boost"
• Q-Factor: 177mm
• MAIN BOLT:
• M30 Main Bolt/Self-Extractor
• 8mm Alloy Main crank bolt for Install/Self-Extract
• B.B.:
• M30-Thru BB (Required)
• Options: BSA/BB90-92/T47 E.B/BB30/PF30
• Praxis M30-Thru BBs: 30mm Drive Bearing/30mm Non-Drive Bearing
• POWER OPTIONS:
• Aftermarket MTN Power Meters for this crank:
• Power2Max - NG and the NG Eco 3-Bolt Power Meter
• SRM - 3-Bolt Power Meter
• SRM - Power Pedals
• GARMIN - Rally Power Pedals
