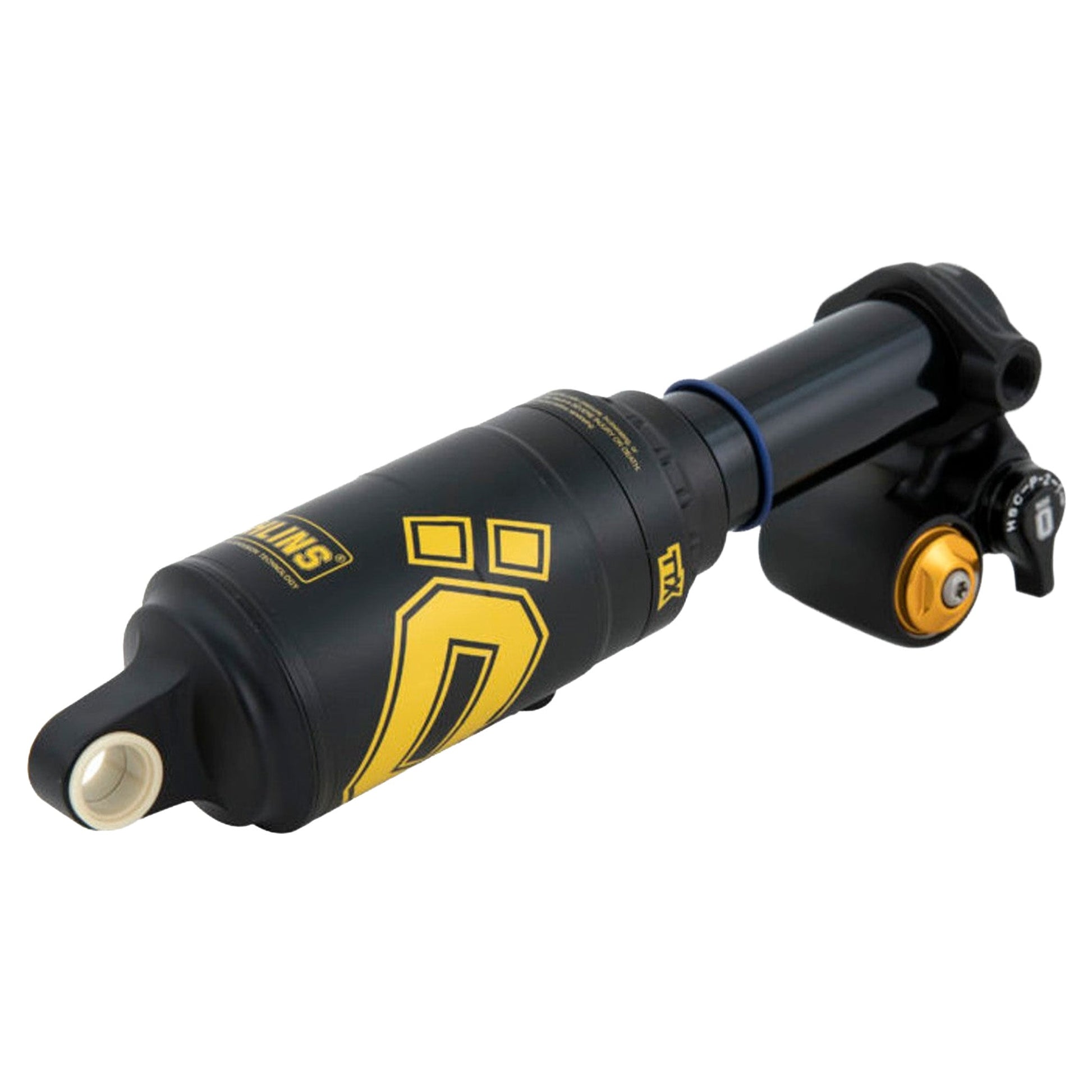

TTX Air TM Shock

The Öhlins TTX2Air Shock is built around their proven twin-tube damping system, combined with a double-can, high-volume air spring. It's specifically designed for bikes with more progressive suspension linkages, offering a highly tunable platform that delivers both plush sensitivity and excellent bottom-out resistance. The TTX2Air provides exceptional traction and control across technical terrain while maintaining stability and support through fast hits and bigger compressions.

Riders benefit from increased air chamber volume in both the positive and negative springs, allowing finer control over the spring curve using included volume spacers. This makes it easy to dial in the perfect level of progression to suit your riding style and terrain. The shock also features an intuitive setup process, with straightforward adjustments for compression and rebound, and the option to change stroke length using included hardware.

Once dialled in, the TTX2Air offers a smooth, composed ride character that boosts comfort, maintains speed through choppy terrain, and improves rider confidence under load. Built around Öhlins' race-proven damper architecture, it also includes improved bushing overlap and low-friction seals to increase durability and reduce service frequency, even under hard use.

Features

• Highly adjustable TTX compression valve technology
• Double-can design with larger air volume in both positive and negative chambers
• Adjustable high-speed compression (HSC) and low-speed compression (LSC)
• Adjustable rebound damping
• Climb mode
• Race-proven setting bank to suit any type of riding or linkage design
• Air spring volume spacers included
• Available in trunnion metric lengths
• Redesigned adjustment knob for intuitive tuning
• Compatible with remote systems
• Redesigned spacer system for easy air volume adjustments
• 185 x 55/52.5/50/47.5 mm sizes
• Maximum air pressure up to 325 psi
• Delivered with the longest stroke plus additional parts to alter stroke

Specifications

• Damper: TTX twin-tube technology
• Spring: Air (double-can design)
• Adjustments: High-speed compression, low-speed compression, rebound
• Remote compatibility: Yes
• Mounting: 185 mm trunnion eye-to-eye length, stroke adjustable with included spacers
• Maximum air pressure: 325 psi
• Weight: varies by size

Compatibility

Designed for trail, enduro, and eMTBs with more progressive linkage systems. Check eye-to-eye length and stroke to ensure fitment with your specific frame.

Installation Notes

Professional installation recommended. Ensure correct spring rate, mounting hardware, and torque settings for optimal performance and safety.
