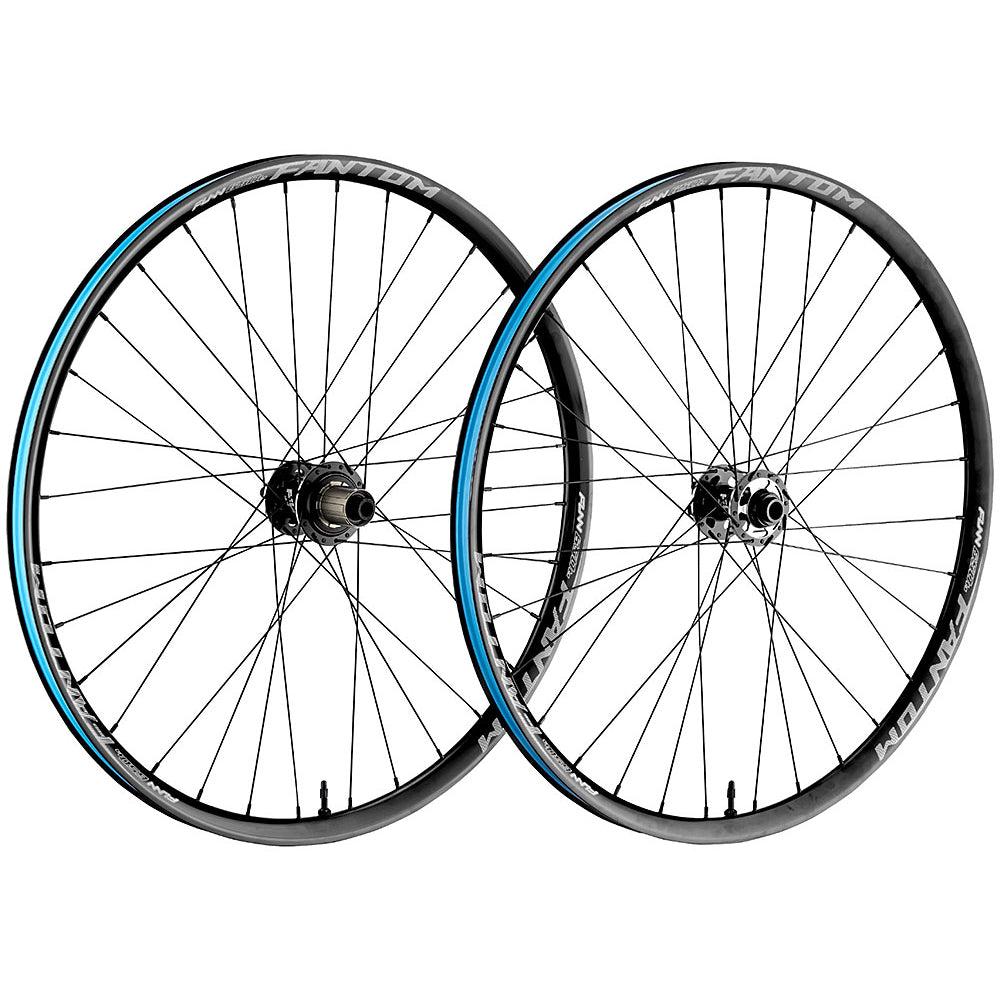

FUNN Fantom AM35 Wheelset

Bombproof and lightning-fast wheels.

The Fantom AM35 is for the Trail and Enduro riders. Designed to be lightweight and fast-rolling with a 35mm external/30mm internal width for the perfect balance of speed and control.

Funn Fantom wheelsets are the complete package, pairing Funn Fantom hubs and rims to create a lightweight, tough and fast wheel for everything from downhill to trail to gravel. Funn wheels are available in 27.5? and 29? and Boost/Non-Boost.

The Fantom hub is precision-engineered from AL6061 with a quick-engagement 6 pawl and 102T design.

The Fantom rim is a bombproof and lightweight design, made from welded AL6066 with a sandblasted black anodised finish.

Fantom wheels are tubeless-ready and come supplied with tubeless rim tape and valves.

Technical Info:

• Intended use: Trail / Enduro
• Tubeless-ready: Yes, supplied with tubeless tape and 2 x valves
• Available sizes 27.5? 29?
• Weight: 1895g (27.5" non-Boost), 1925g (27.5" Boost), 1965g (29" non-Boost), 1995g (29" Boost)
• Spoke count: 32H front, 32H rear

Funn Fantom Rim

• Valve standards: Presta
• Axle standard front: 15x110mm
• Axle standard rear: 12x148mm
• Rim width external: 35mm
• Rim width internal: 30mm
• Rim depth: 18mm
• Rim eyelet: No
• Rim material: Welded 6066 Alloy
• Finish: Sandblasted Anodised Black

Funn Fantom Hub

• Fantom 102T quick engagement
• Cassette body: Shimano HG / SRAM XD / Shimano Micro Spline
• Hub body: 6061 Alloy
• Compatibility: 100mm front/142mm rear hubs can be converted to QR standard. Cassette body is convertible between Shimano and SRAM standards.

Spokes

• Butting: Double-butted
• Spoke count: 32h each wheel
• Nipple: Brass
