Wheel Diameter | Hub Spacing | Freehub Type | Internal Rim Width | Brake Rotor Type | Rim Material | Which Wheel | Price | Add to Wishlist | ||
29 Inch | 15x110mm Boost & 12x148mm Boost | Shimano HG Splined | 30mm | 6 Bolt | Aluminium | Front and Rear |
Regular price
$859.95
Regular price
Unit price
per
|
|
||
27.5 Inch | 15x110mm Boost & 12x148mm Boost | Shimano HG Splined | 30mm | 6 Bolt | Aluminium | Front and Rear |
Regular price
$859.95
Regular price
Unit price
per
|
|
||
27.5 Inch | 15x110mm Boost & 12x148mm Boost | Shimano Microspline | 30mm | 6 Bolt | Aluminium | Front and Rear |
Regular price
$859.95
Regular price
Unit price
per
|
Notify Me | ||
29 Inch | 15x110mm Boost & 12x148mm Boost | Shimano Microspline | 30mm | 6 Bolt | Aluminium | Front and Rear |
Regular price
$859.95
Regular price
Unit price
per
|
|
||
27.5 Inch | 15x110mm Boost & 12x148mm Boost | XD Driver | 30mm | 6 Bolt | Aluminium | Front and Rear |
Regular price
$859.95
Regular price
Unit price
per
|
Notify Me | ||
29 Inch | 15x110mm Boost & 12x148mm Boost | XD Driver | 30mm | 6 Bolt | Aluminium | Front and Rear |
Regular price
$859.95
Regular price
Unit price
per
|
|
Wheel Diameter | Hub Spacing | Freehub Type | Internal Rim Width | Brake Rotor Type | Rim Material | Which Wheel | ID | ||
6 Bolt Shimano HG Splined 15x110mm Boost & 12x148mm Boost 30mm Aluminium 29 Inch Front and Rear
|
29 Inch | 15x110mm Boost & 12x148mm Boost | Shimano HG Splined | 30mm | 6 Bolt | Aluminium | Front and Rear | 41718344253485 |
Regular price
$859.95
Regular price
Unit price
per
|
6 Bolt Shimano HG Splined 15x110mm Boost & 12x148mm Boost 30mm Aluminium 27.5 Inch Front and Rear
|
27.5 Inch | 15x110mm Boost & 12x148mm Boost | Shimano HG Splined | 30mm | 6 Bolt | Aluminium | Front and Rear | 40684759089197 |
Regular price
$859.95
Regular price
Unit price
per
|
6 Bolt Shimano Microspline 15x110mm Boost & 12x148mm Boost 30mm Aluminium 27.5 Inch Front and Rear
|
27.5 Inch | 15x110mm Boost & 12x148mm Boost | Shimano Microspline | 30mm | 6 Bolt | Aluminium | Front and Rear | 40684758990893 |
Regular price
$859.95
Regular price
Unit price
per
Notify Me |
6 Bolt Shimano Microspline 15x110mm Boost & 12x148mm Boost 30mm Aluminium 29 Inch Front and Rear
|
29 Inch | 15x110mm Boost & 12x148mm Boost | Shimano Microspline | 30mm | 6 Bolt | Aluminium | Front and Rear | 40684758761517 |
Regular price
$859.95
Regular price
Unit price
per
|
6 Bolt XD Driver 15x110mm Boost & 12x148mm Boost 30mm Aluminium 27.5 Inch Front and Rear
|
27.5 Inch | 15x110mm Boost & 12x148mm Boost | XD Driver | 30mm | 6 Bolt | Aluminium | Front and Rear | 40684759056429 |
Regular price
$859.95
Regular price
Unit price
per
Notify Me |
6 Bolt XD Driver 15x110mm Boost & 12x148mm Boost 30mm Aluminium 29 Inch Front and Rear
|
29 Inch | 15x110mm Boost & 12x148mm Boost | XD Driver | 30mm | 6 Bolt | Aluminium | Front and Rear | 40684759187501 |
Regular price
$859.95
Regular price
Unit price
per
|
Description

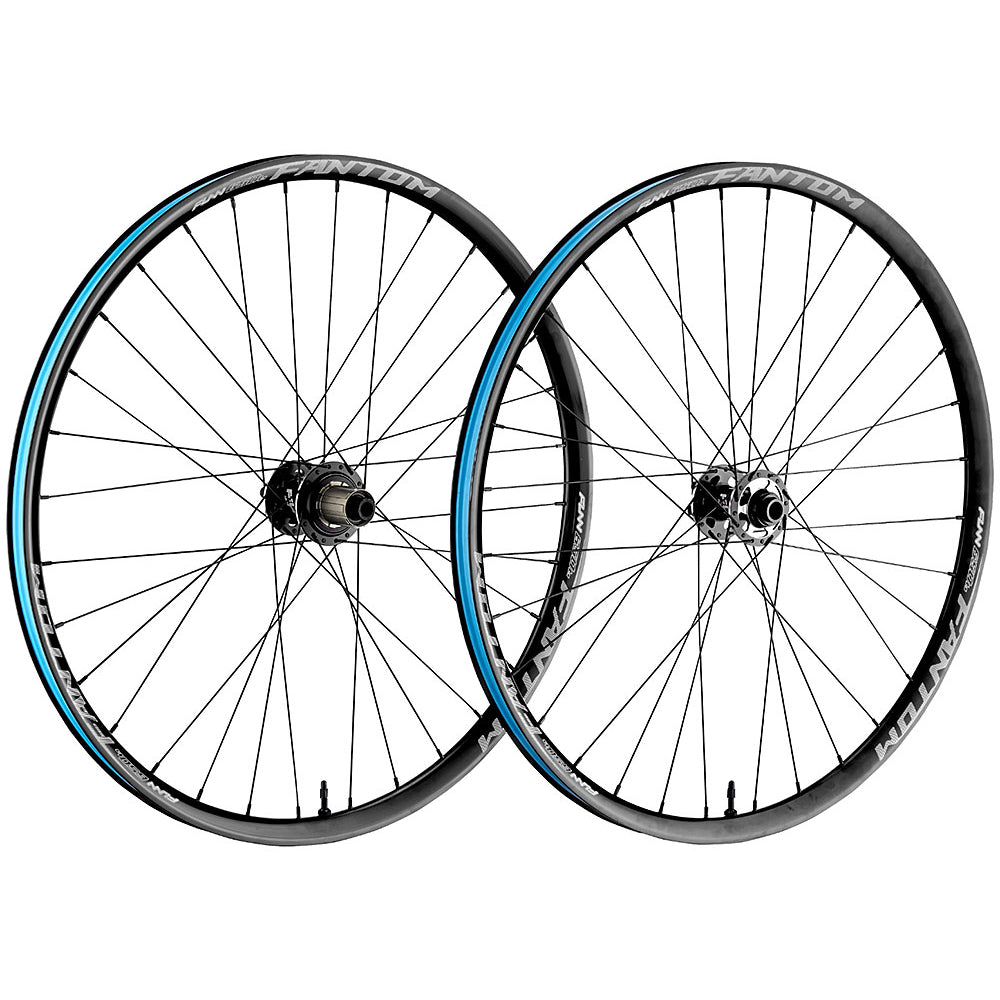

Bombproof and lightning-fast wheels.
The Fantom AM35 is for the Trail and Enduro riders. Designed to be lightweight and fast-rolling with a 35mm external/30mm internal width for the perfect balance of speed and control.
Funn Fantom wheelsets are the complete package, pairing Funn Fantom hubs and rims to create a lightweight, tough and fast wheel for everything from downhill to trail to gravel. Funn wheels are available in 27.5? and 29? and Boost/Non-Boost.
The Fantom hub is precision-engineered from AL6061 with a quick-engagement 6 pawl and 102T design.
The Fantom rim is a bombproof and lightweight design, made from welded AL6066 with a sandblasted black anodised finish.
Fantom wheels are tubeless-ready and come supplied with tubeless rim tape and valves.
Technical Info:
- Intended use: Trail / Enduro
- Tubeless-ready: Yes, supplied with tubeless tape and 2 x valves
- Available sizes 27.5? 29?
- Weight: 1895g (27.5" non-Boost), 1925g (27.5" Boost), 1965g (29" non-Boost), 1995g (29" Boost)
- Spoke count: 32H front, 32H rear
Funn Fantom Rim
- Valve standards: Presta
- Axle standard front: 15x110mm
- Axle standard rear: 12x148mm
- Rim width external: 35mm
- Rim width internal: 30mm
- Rim depth: 18mm
- Rim eyelet: No
- Rim material: Welded 6066 Alloy
- Finish: Sandblasted Anodised Black
Funn Fantom Hub
- Fantom 102T quick engagement
- Cassette body: Shimano HG / SRAM XD / Shimano Micro Spline
- Hub body: 6061 Alloy
- Compatibility: 100mm front/142mm rear hubs can be converted to QR standard. Cassette body is convertible between Shimano and SRAM standards.
Spokes
- Butting: Double-butted
- Spoke count: 32h each wheel
- Nipple: Brass
