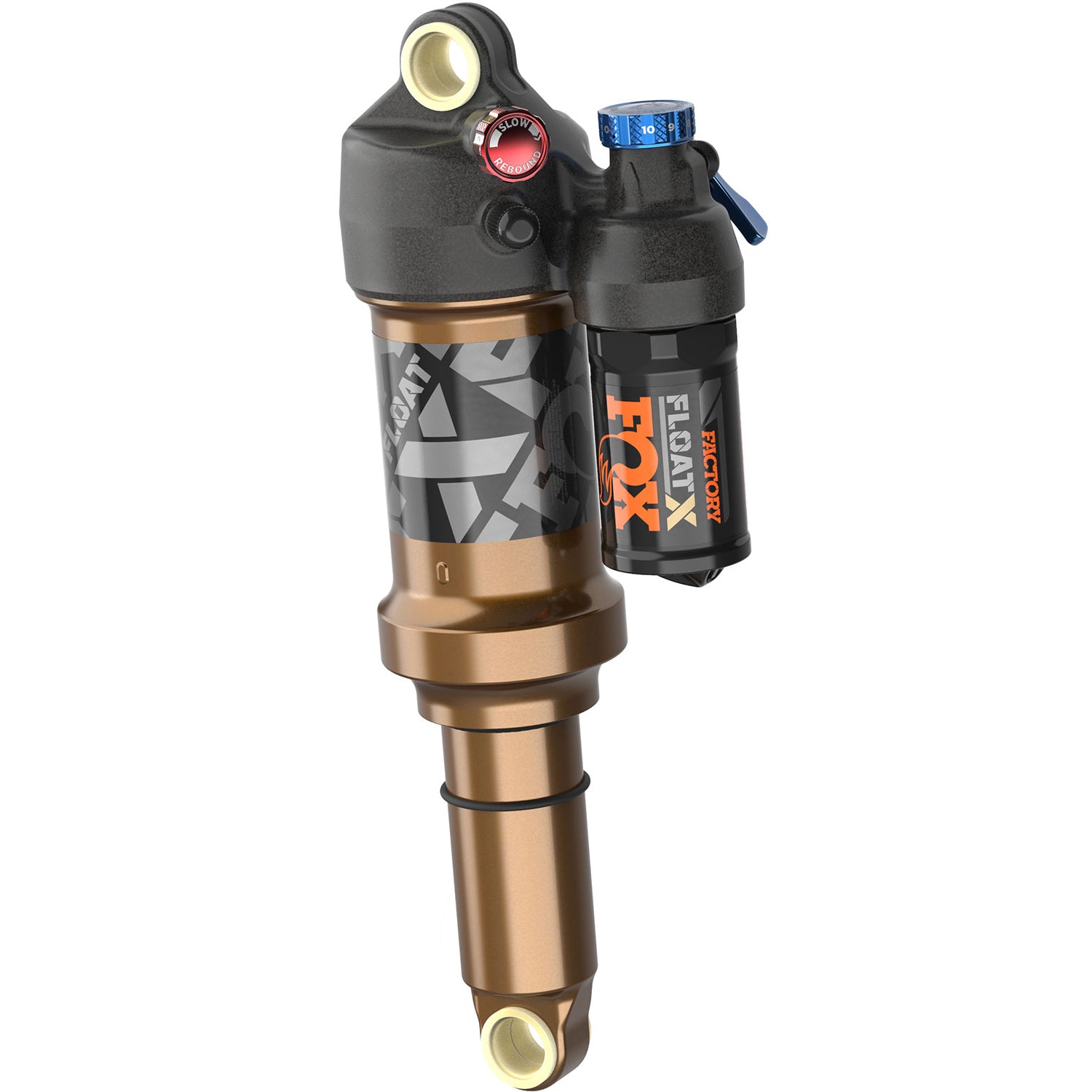

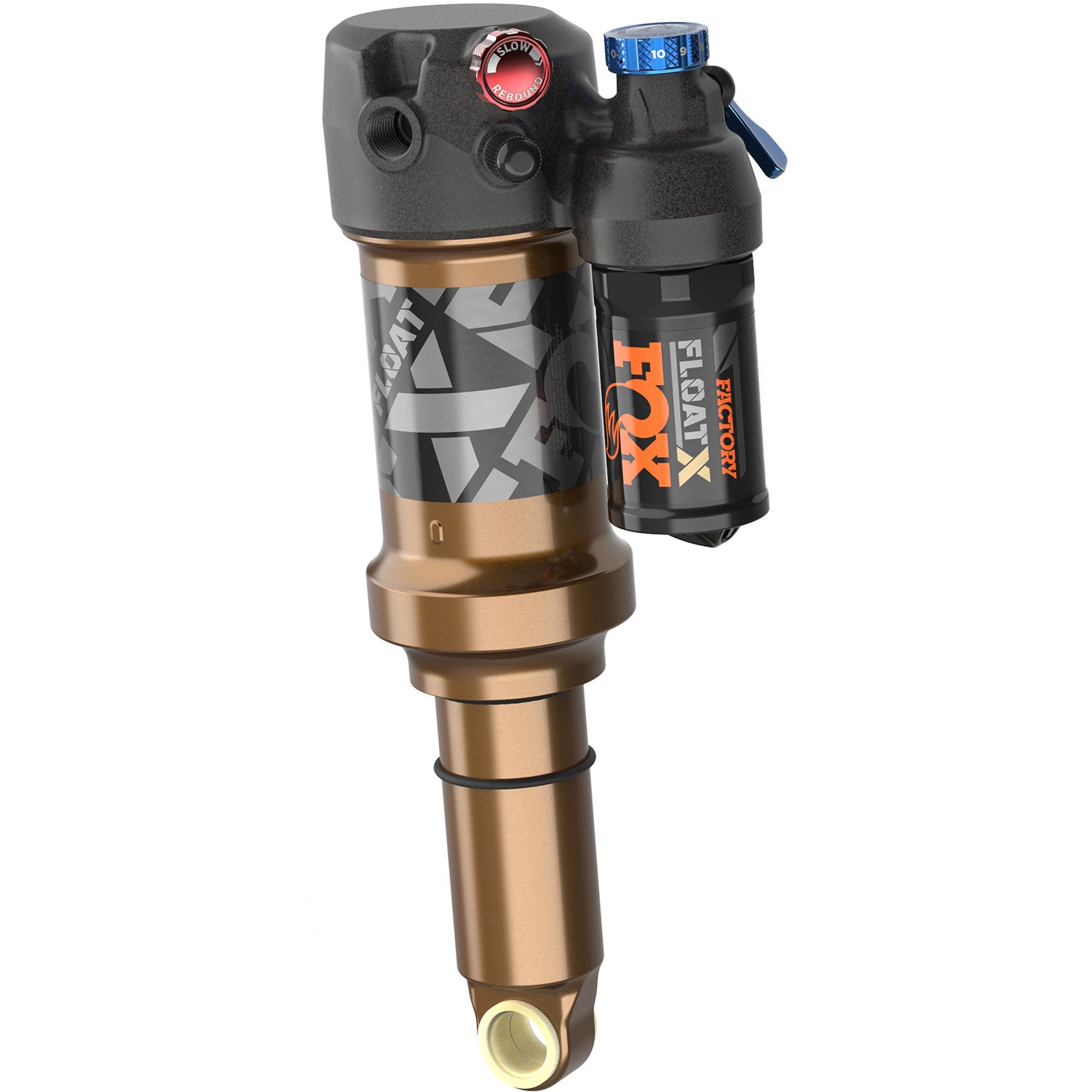

Fox Float X Factory Kashima Air Shock

Designed specifically to meet the demands of aggressive trail riders, the new FLOAT X combines sophisticated damping and fade free performance with incredible light weight and outstanding structural integrity.

Who is this for: The Float X is perfect for use on Tough XC, Trail, All-Mountain and even Enduro bikes

Spring type: This is an air spring shock.

Compression damper adjustments:

• Independent 2 Position Open/Firm Lever
• Low-Speed Compression: 11 clicks

Rebound damper adjustments:

• Low-Speed Rebound: 16 clicks

Features:

• All-New chassis and damper
• High-flow main piston
• Air seal package
• Volume spacers with smaller increments
• MCU bottom out bumper
• Numbered tool-free 12 position single-turn LSC (Low-Speed Compression) adjuster
• Independent firm mode circuit – Clockable 2 position adjuster
• Increased rebound adjuster range (over DPX2)
• Optimized reservoir lengths per shock size
• Hydraulic top out feature
• Reduced damper noise
• Larger air sleeve bore reduces average rider pressure by 40 psi vs. DPX2
• Bearing hardware compatible both sides
• Air valve location offers improved frame fitment and pump access
