X-Fusion Manic Gravel Dropper Post

X-Fusion Manic Gravel Dropper Post

Regular price $303.95–$349.95
Regular price Sale price $303.95–$349.95

or 4 interest-free payments of $75.99 - $87.49 with

SKU:

Diameter Length of Drop Total Post Length Included Remote Type Cable Routing Price Add to Wishlist
27.2mm 100mm Drop 372mm Length 1x Remote - 22.2mm Bar Clamp Internal - Stealth
Regular price $349.95
Regular price Sale price $349.95
SKU: 816022010107
Ships in 10-14 days
27.2mm 50mm Drop 350mm Length 1x Remote - 22.2mm Bar Clamp Internal - Stealth
Regular price $303.95
Regular price $380.00 Sale price $303.95
Clearance Only 1 Left!
SKU: 816022010114
Internal - Stealth
27.2mm
1x Remote - 22.2mm Bar Clamp
100mm Drop
372mm Length

Regular price $349.95
Regular price Sale price $349.95

Ships in 10-14 days
Internal - Stealth
27.2mm
1x Remote - 22.2mm Bar Clamp
50mm Drop
350mm Length

Regular price $303.95
Regular price $380.00 Sale price $303.95
Clearance Only 1 Left!

Description

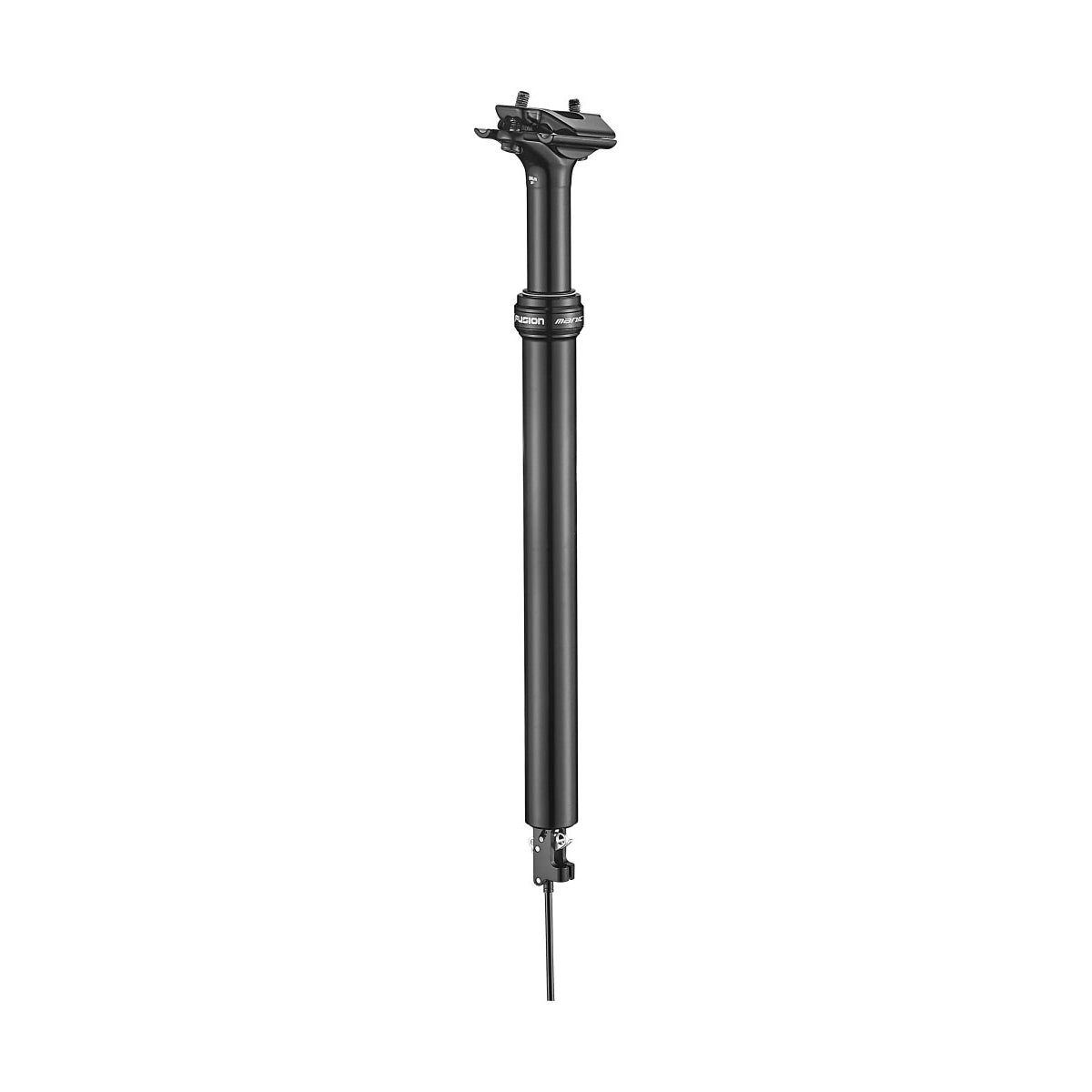

The X-Fusion Manic Gravel dropper seat post is the latest in a long line of Manic droppers that have established themselves as a functional, reliable and easily serviced dropper seat post regardless of their price tag.

With smooth action, design features that improve reliability, serviceability and compatibility, an included drop-bar specific remote lever and easy to understand owner's manual and setup guide, the Manic Gravel is a complete and versatile package. The saddle angle can be infinitely adjusted, thanks to the 2-bolt saddle clamp, and with the dropper height being infinitely variable throughout its travel.

At just 402g for the 50mm and 465g for the 100mm, the weights are respectable and the overall lengths will make them suitable to fit a number of gravel frames. The only diameter offered is 27.2mm but shims are readily available to fit these droppers to 30.9 and 31.6mm seat tubes which results in a lower overall weight.

Lift is provided by a reliable sealed air cartridge that, when it does come time to replace, is both simple and inexpensive to do so. The smooth action is thanks to the nylon bushes and triple brass keys and the sealhead includes a wiper seal as well as an o-ring to keep the nasties out.

Who's this item for: Riders who like to service their own gear, looking for a reliable dropper that performs well and provides long term cost-effectiveness.

Actuation style: The Manic Gravel is cable actuated and includes an alloy drop-bar specific remote lever that can be used on the left-hand side or the right-hand side. The cable clamp at the post means it can be used with remotes that place the barrel at the remote AND those that clamp the cable at the remote lever.

Spring style: The Manic Gravel uses a sealed, non-serviceable but easily replaceable, compressed air cartridge.

Infinite or finite adjustments: The post can be stopped anywhere throughout its travel.

Internal or externally routed: The Manic provides actuation at the base of the post making it suitable for internally routed cables.

Lever included: Yes. There is a nifty alloy lever and cable kit included. It's an underbar lever suitable for use on both the left-hand side or right-hand side. The Manic is compatible with most remote levers should you require an overbar lever.

Lever mounting options: The lever can actually be mounted on the left or the right and is designed to clamp to a section of handlebar that is a standard 22.2mm diameter making it ideal for mounting somewhere on the drops.

Includes cable / housing : Yes. A complete install kit is provided including remote lever, inner cable, outer housing, inner and outer ends and the barrel bolt to clamp the cable at the post.

Saddle clamp style: 2-bolt infinitely adjustable angle.

Weight: 50mm: 410g / 100mm: 465g

Stand out features: The X-Fusion is a complete package and requires nothing more to install it on your bike, serviceability is also a standout.

What's in the box: Dropper post, remote lever, inner cable, outer housing, inner and outer ends and the barrel bolt to clamp the cable at the post.
