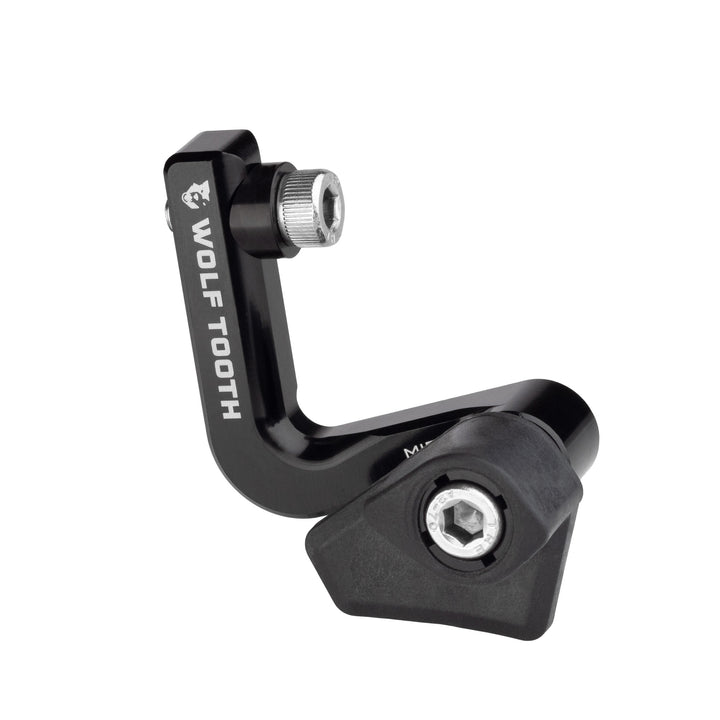

Wolf Tooth Lonewolf Aero Braze On Chainguide - Upper Guide

The LoneWolf Aero Braze On Chainguide is a lightweight, sleek, and reliable option to prevent dropped chains in road, gravel, and CX races. Think of it as 30g of insurance, where a dropped chain could cost you a shot at the podium.

This chainguide is compatible only with bikes that have a 1x drivetrain. This is because it uses the mount in place of a front derailleur. It can be paired with round and oval chainrings on road, CX, and gravel bikes.

The head of the chainguide must be within 2mm of the chain to be effective at preventing dropped chains. Three base sweep options cover the vast differences in chainring diameter from 38-62T. Low sweep is for roughly 38-52T chainrings, mid sweep is for 52-58T, and high sweep is for 54-62T. The unique GuideLock quick adjustment system provides 8mm of positioning for chainline.

Service for the chainguide is easy and can be done at home. A 4mm hex key is the only tool required for installation and adjustment.

Compatibility:

• Compatible with bikes that have a braze-on front derailleur mount
• Only for use with 1x drivetrains
• Works with round or oval chainrings
• Three base sweep options for chainring sizes ranging from roughly 38T-62T based on frame; Low sweep for smaller chainrings in that range will be most popular
• Head has 8mm of adjustment for chainline via our GuideLock quick adjustment system

Note: Braze-on mount is not at the same height on all bikes so max chainring size will vary somewhat depending on frame brand and model.

Tech Specs:

• Weight: High Mount = 30g | Medium Mount = 29g | Low Mount = 33g
• Material: 6061-T6 machined Aluminium base, stainless steel hardware, injection moulded head
