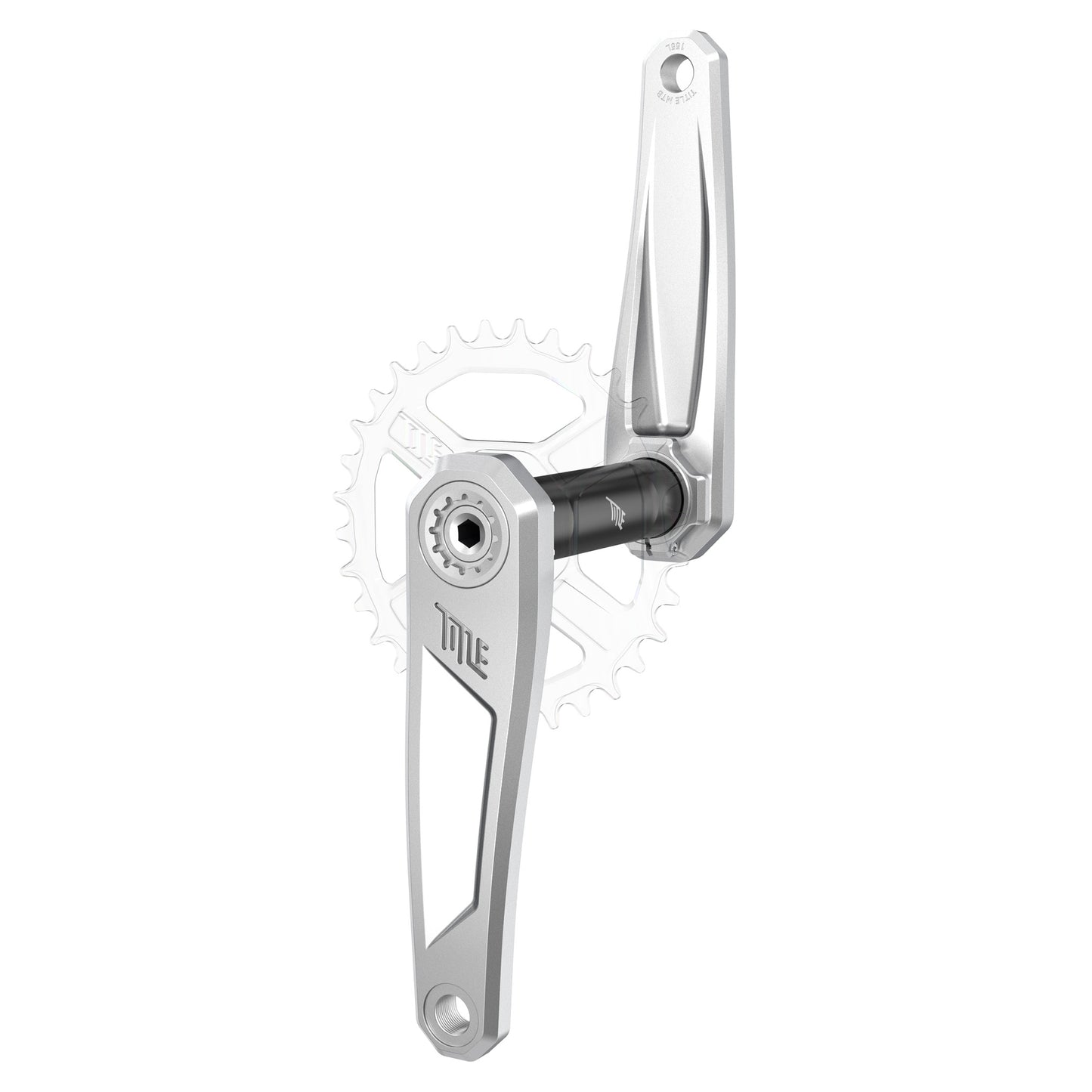

Title Rotor CR1 Crankset - Chrome

The CR1 crank system is a modular, performance-driven platform designed to meet the demands of every rider. From aggressive trail riding to DH and e-bike applications, the CR1 is built for strength, compatibility and simplicity, delivering premium performance across every configuration.

The CR1 platform was developed to eliminate the headaches of finding the right crankset for different bikes. With interchangeable spindle options and broad drivetrain compatibility, riders can configure the CR1 for everything from a dirt jumper to a World Cup downhill bike.

Rigorously tested by EFBE. Passed TRI-TEST® GR. Certified for enduro, freeride, and downhill mountain bikes.

Available in 3 crankarm lengths

• 155mm
• 160mm
• 165mm

With SRAM 8 bolt

CR1-E is compatible with Bosch Gen-5 and DJI Avinox motors

*Designed for SRAM DUB bottom brackets, chainring sold separately*

Which spindle do I need?

Choosing the correct spindle depends on your bike's frame and drivetrain setup. But as a general rule of thumb, compatibility is as follows:

• 130mm spindle – dirt jump and non-boost bikes
• 136mm spindle – most modern trail and enduro bikes with boost spacing
• 145mm spindle – downhill bikes

If you're unsure which spindle is right for you, check your bike manufacturer's website for your specific bike's sizing and spacing.

Specifications

• Three-piece design
• 29mm crank spindle diameter
• Aluminium pre-loader
• Available in three lengths: 155mm, 160mm, 165mm
• Machined from 7075 T6 aluminium
• Anodised matte black or chrome finish
• SRAM 8 bolt direct mount compatible
• Compatible with Title CR1 spindle
  • 130mm = DJ (135 / 142mm hub spacing)
  • 136mm = enduro (148mm boost hub spacing)
  • 145mm = DH (152 / 157mm hub spacing)
• Compatible with SRAM Dub 29mm bottom bracket only. Not included

Spindle technical specifications

• 130mm – chainline: 52mm, Q-factor: 168.5mm, arm clearance: 70.25mm. Technical note: optimised for riders seeking the narrowest stance (Q-factor) on bikes with standard chainstay profiles.
• 136mm – chainline: 55mm, Q-factor: 174.5mm, arm clearance: 73.25mm. Technical note: required for SRAM T-Type systems. Provides +3mm lateral arm clearance per side to clear flared or oversized chainstays.
• 145mm – chainline: 56.5mm, Q-factor: 183.5mm, arm clearance: 77.75mm. Technical note: designed for 157mm rear spacing. Requires a 6mm offset chainring to maintain the 56.5mm chainline. Maximum

  Spindle sizes for every application

  • 130mm for Dub BB (DJ / non boost)
  • 136mm for Dub BB (enduro / boost)
  • 145mm for Dub BB (DH)

  Chainrings to suit each rider

  • 8 bolt T-Type
  • 8 bolt variable (regular 12 speed)
  • Shimano 12 speed
  • 104 BCD T-Type
  • 104 BCD 12 speed
  • 104 BCD Shimano

  Available in: 30T, 32T, 34T, 36T

  clearance for reinforced gravity frames.
