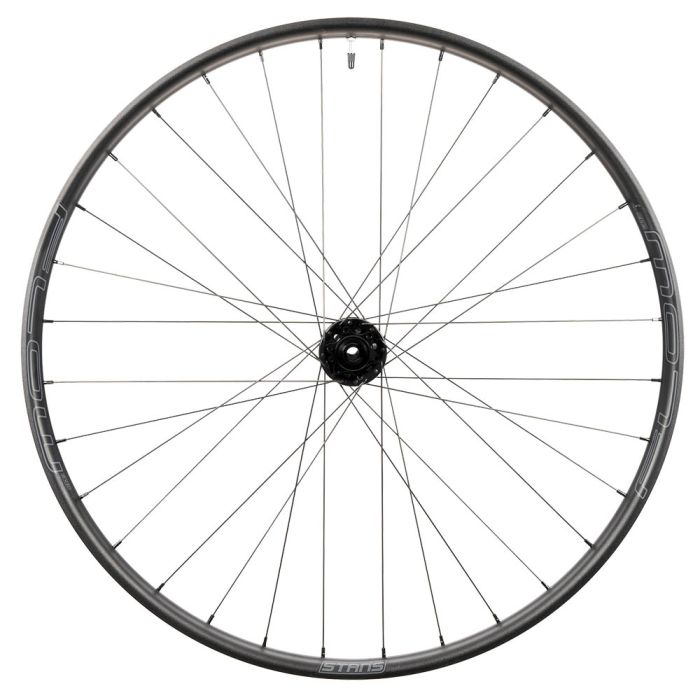

Stan's NoTubes Flow EX3 Front Wheel

FEATURES:

• Reinforced 29mm wide rim shape built to handle AM, DH, Enduro and anything else
• Proven with wins at World Cup DH and Enduro World Series events
• Tiebeam triple cavity 6069 welded aluminium rim resists dents and air loss during impacts
• Enduro bearings with double-row freehub bearing and chromoly axle offer 47% increase in max torque capacity over Neo hubs
• Matched wheelsets use traditional J-bend lacing and share a single spoke length for easy serviceability

DESCRIPTION:

The Flow EX3 craves high speeds and the most demanding trails and courses. This is the most durable, high-performance wheelset with a proven pedigree in Enduro World Series and World Cup DH races.

The Flow EX3 rim combines the 29mm internal width and durable 6069 aluminium construction of the Flow MK3 with the incredibly strong Tiebeam triple cavity design of the classic Flow EX rim. The result is a rim shape that perfectly balances radial compliance with lateral stiffness and sets the benchmark for durability and impact resistance. The Flow EX3 rim’s Tiebeam inner bridge lets it withstand impacts that would deform most rims to the point of air loss and structural failure. Even if you use a tyre insert, huge impacts can cause the sidewall of most rims to fold, causing air loss and eventual failure. But the Tiebeam brace and patented low sidewalls of the Flow EX3 resist this folding, maintaining air pressure and structural integrity better than any other rim.

The E-sync hub is built for strength and durability. Whether you're racing in wet conditions, attacking rock gardens, or putting down the climbing torque of an eBike, the chromoly axle and double-row Enduro bearings of the E-sync can take it.

The Flow EX3 is the evolution of the Flow line for aggressive riding. Every World Cup DH and Enduro World Series win, every hour of testing, riding and improving, it’s all here in the Flow EX3. This wheel erases limitations.

SPECIFICATIONS:

Rim Internal Width: 29.0mm

Rim External Width: 35.0mm

Rim Depth: 18.3mm

Spokes: Sapim D-Light Black 2.0/1.65/2.0

Nipples: Sapim Polyax Secure Lock Black Brass

Hub: Stan's E-sync

Hole Count: 32-hole

Rim Material: 6069 Aluminium Alloy

Rim Color: Black Bead Blasted Finish (BBQ)

Hub Color: Black

Brakes: Disc Only

Valve: 35mm Presta

Rim Weight: 580g (27.5")/618g (29")

Wheelset Weight: 2062g (27.5")/2162g (29")

Front Wheel Weight: 953g (27.5")/1003g (29")

ERD: 564mm (27.5")/602mm (29")

ETRTO: 584x29.0 (27.5")/622x29.0 (29")

ISO: 27.5"x32.6mm/29"x32.6mm

Tape: 30mm

Max Spoke Tension: 130kgf (1225N)

Max Pressure with 2.30" Tyre: 39psi

Max Pressure with 2.60" Tyre: 34psi

Max Rider Weight: 250lbs (113kg)

Flow EX3 wheels include pre-installed tape for tubeless use and Presta valves.
