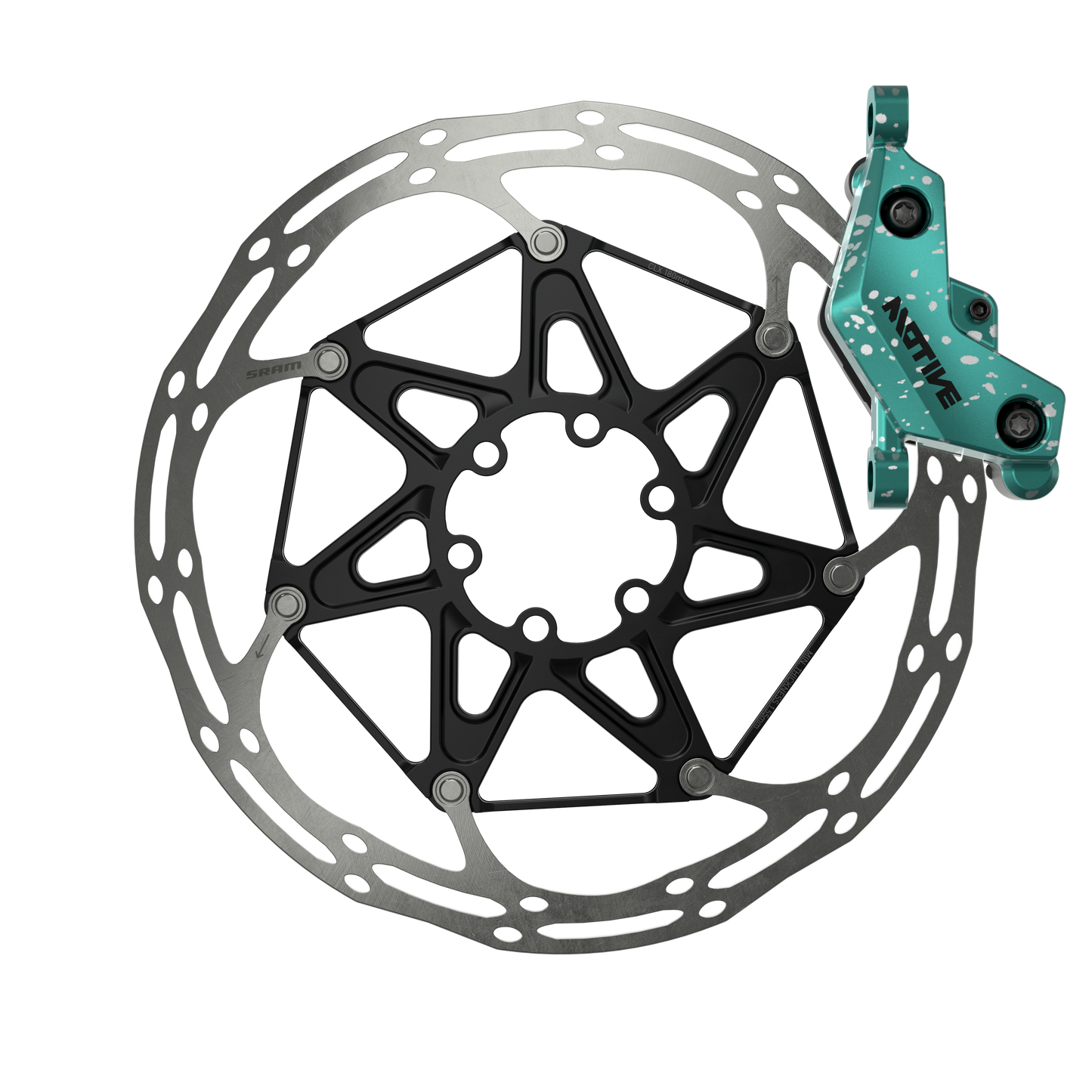

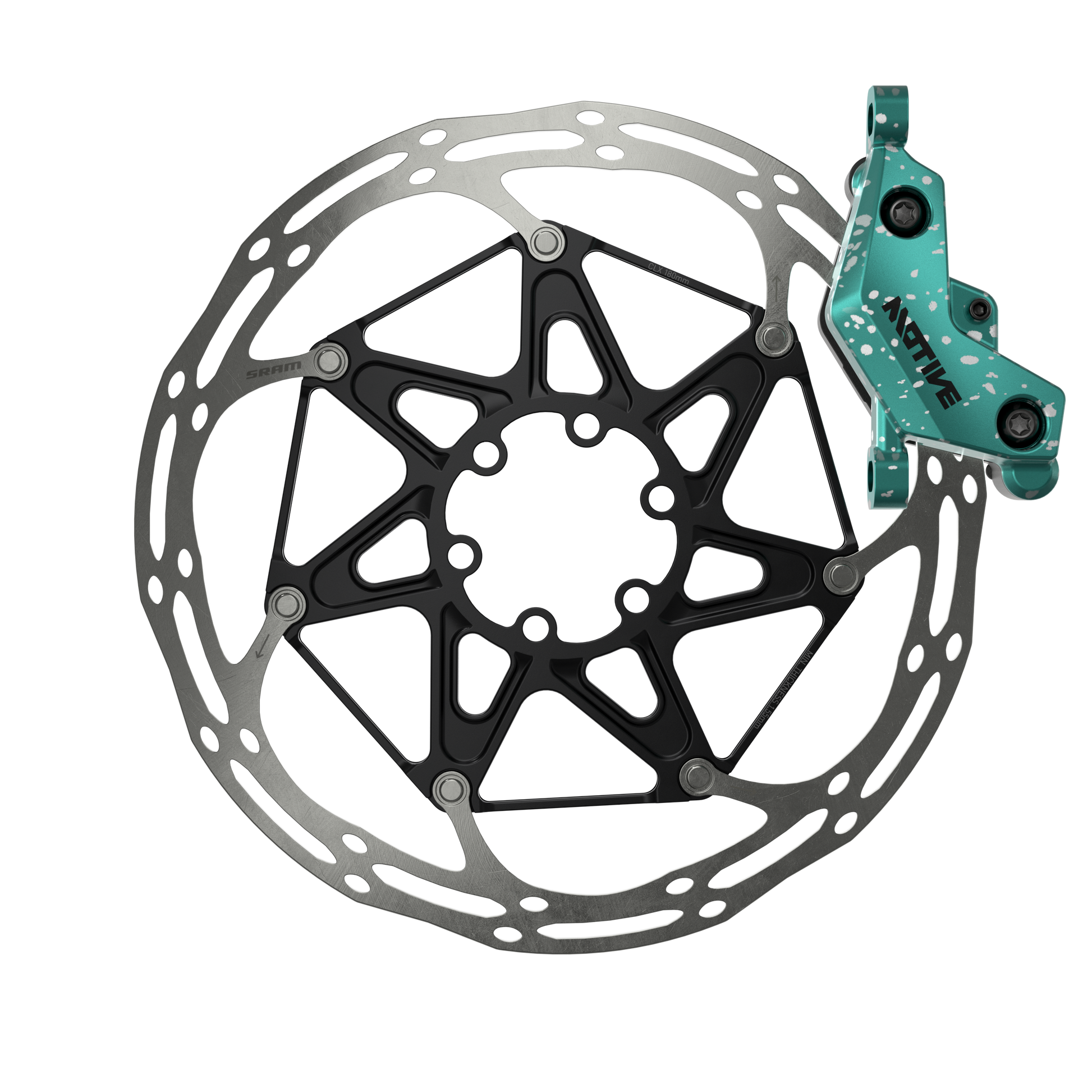

Motive Ultimate Expert Kit

Every ride is different, and as the requirements change, so does the tuning of your brakes. The fully loaded limited-edition Motive Expert Box is designed to provide riders everything they need to tune their Motive Ultimate brakes for optimal brake performance. For 2025, the kit features a split caliper finish, with teal splatter ano on one half, and bold black ano on the other. The lever body features the same bold black ano, while black titanium hardware and mounting bolts complete the signature look. Born from the legacy of two of the winningest brakes of all-time, SRAM Motive Ultimate matches the capabilities of modern XC-race and trail bikes. Modern stealth aesthetics pair with wireless superbikes, and a sculpted 4-piston caliper delivers tunable heavy-duty power for traction and control.

Opening the aperture on what’s possible, giving you the boundless power of more confidence, and in the process redefining what’s required from a low-weight brake. Motive. New powers to go ahead.

Features

• Stealth body designed to complement AXS cockpits
• Heavy-duty power in a modern XC package, for today’s races
• Tool-free reach adjust for easy customization
• Titanium hardware and carbon lever blade with bearing pivot
• Ultimate worthy Blasted Clear anodized finish with polished machined edges
• Designed for use with Maxima Mineral Oil only
• Designed for use with SRAM Mineral Oil Bleed Kit only
• Caliper features Bleeding Edge bleed port for drip-free maintenance

Specifications

• Blade Material: Carbon
• Lever Body material: Forged Aluminum
• Caliper Body Material: Forged Aluminum
• Caliper Bleed Port: Bleeding Edge
• Caliper Hardware: Titanium
• Color: Teal splatter / bold black ano combination
• Contact Adjust: No
• Reach Adjust: Tool-Free
• Hydraulic Fluid: SRAM Mineral Oil
• Lever Pivot: Bearing
• Pad Type: Organic and Sintered
• Piston Material: Phenolic Plastic
• Pistons: 4
• Weight: Based on Rear, SJ, DIR, 1800mm w/pads (no clamp, no mounting hardware, no pad spacer, no rotor/bolts) - 264g

Included in Box

• Two brakes
• Two MMX Clamps
• Two 20P-1 mounting brackets
• Two 180mm CL-X rotors
• Two 160mm CL-X rotors
• Rotor bolts
• Rotor carrying case
• Pro Mineral Bleed kit
• Four barbs and four olives
• Two pairs of steel-back metal sintered pads
