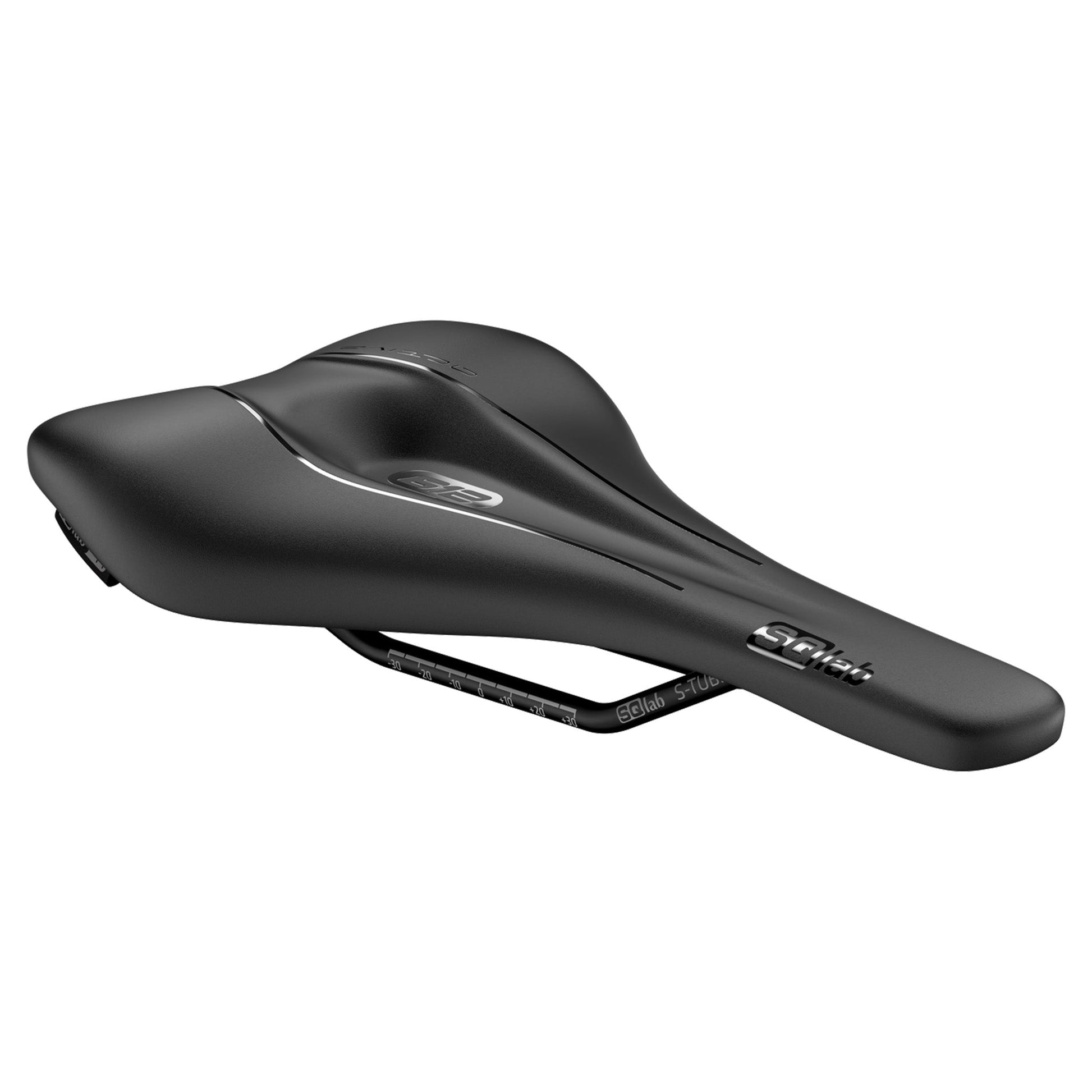

612 Ergowave Active 2.2 Saddle

The SQlab 612 ERGOWAVE® active 2.2 is manufactured in Spain with the highest expertise and attention to detail – built for riders who demand maximum performance without giving up noticeable comfort. European production ensures sustainable quality, short transport routes, and close cooperation with local partners.

Key features

• Performance Fit: Five widths ensure an exact anatomical match and optimal pressure distribution
• Dynamic Comfort: The active system allows controlled pelvic movement – reducing spinal load for a more natural, comfortable ride
• Efficiency by Design: Stable sit bone support improves power transfer while reducing perineal pressure
• Proven ERGOWAVE® Shape: The stepped ERGOWAVE® shape positions the sit bones in a defined support zone, stabilising the pelvis under load. This reduces pressure on sensitive areas and creates a stable base for efficient power transfer
• active Technology: The integrated active-System allows a slight side-to-side movement of the saddle. This movement is based on the body's natural pelvic motion, similar to what occurs when walking or running, and supports pelvic movement during the pedal stroke
• Adjustable Movement: The degree of movement can be individually adjusted to riding style and rider weight using interchangeable elastomers – ranging from sporty-direct to comfort-oriented

Specifications

• Size(s) in cm (effective saddle width): 12 / 13 / 14 / 15 / 16
• Area of use: Road
• Weight(s) in g: approx 245
• Length(s) in mm: 275
• Effective height in mm: 53
• Active technology: Yes - Sport
• Material rails: S-Tube (light stainless steel - hollow)
• Material base: Glass Fibre reinforced Polyamide Compound (PA12 + GF)
• Material padding: Superlight Foam
• Material cover: Superlight Microfibre
• Hardness in SQ-Shore: 60
• Relief of perineal area in %: 63
• Maximum load in kg: 100
• Maximum torque in Nm: 18
• E-bike ready: Yes
• DIN/ASTM categories: 4, 6 / 4
• Gender: Unisex
