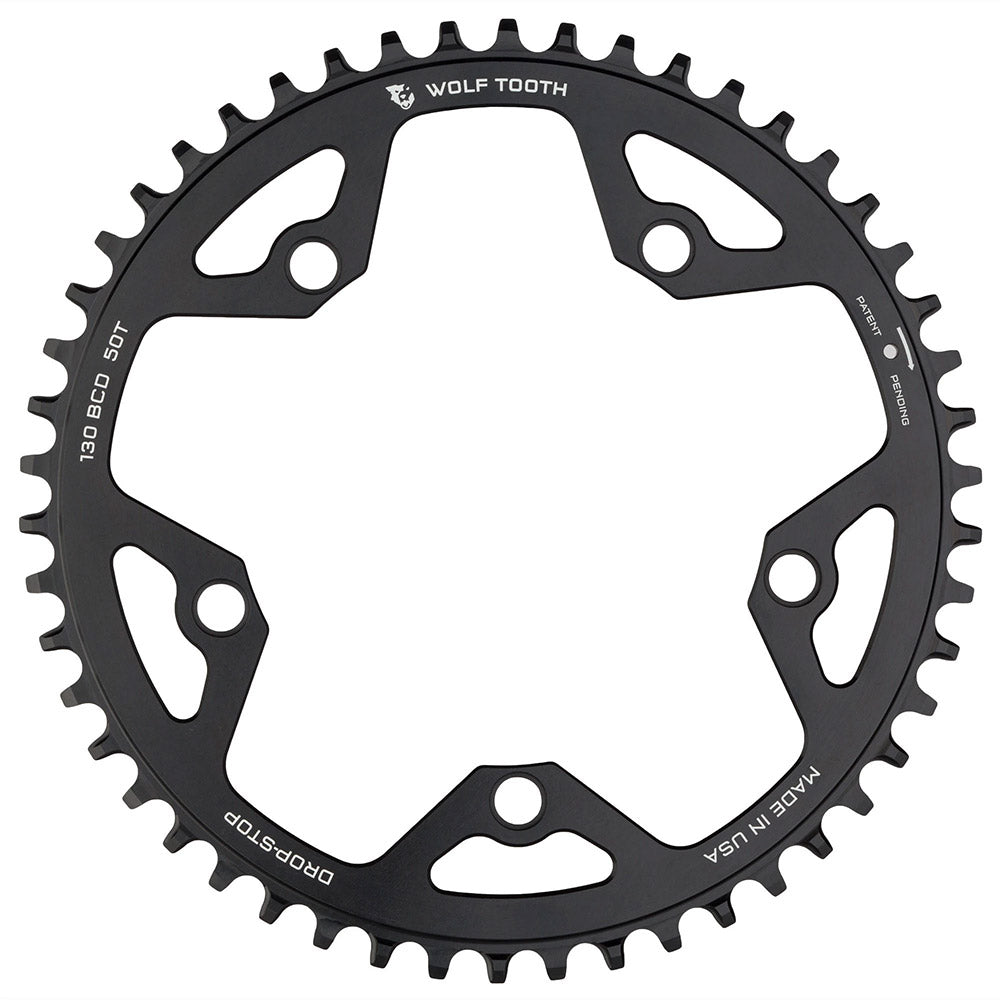

Shop 2nd D1 Wolf Tooth 5 Bolt Drop Stop Chainring

    Shop 2nd D1 Wolf Tooth 5 Bolt Drop Stop Chainring

    SKU:

    This product has been discontinued and is no longer stocked by MTB Direct.
    View other Chainrings from Wolf Tooth View other ChainringsView all others products from Wolf Tooth
    Chainring Fitment Speeds Chainline Offset Tooth Count Chainring Shape Chainring Mount Colour Material Price Add to Wishlist
    110 BCD 9-12 Speed incl Flattop Standard Crank Chainline 36T Round Five Bolt Black Alloy
    SKU: 810006801217D1
    		 Discontinued
    Black
    Alloy
    Standard Crank Chainline
    110 BCD
    Five Bolt
    Round
    36T
    9-12 Speed incl Flattop
    Discontinued

    Description

    This item is listed as a Shop 2nd D1 item. This means it has either sustained damage to the packaging or there is no packaging. The item itself is in perfect working and aesthetic condition.

    If you are in need of a 5 Bolt Chainring, chances are Wolf Tooth have an option to suit. Made from a high-grade 7075-T6 aluminium Wolf Tooth's Drop-Stop Chainrings are one of the best performing and longest lasting wide/narrow chainring options on the market.

    Drop-Stop technology is Wolf Tooth’s patented wide/narrow chainring design. The wide side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow side allows clearance for mud and debris which reduces friction. Alternating wide/narrow tooth pattern prevents chain derailment

    Compatibility and Specs:

    110 BCD:

    • These rings are for use with 110 BCD 5 arm cranksets.
    • Do NOT fit on the cranksets for Shimano DA 9000 / Ultegra 6800
    • Not compatible with Campy CX10/11.
    • Can be mounted in either the big or small ring position of a double crankset given chainstay clearance in the small ring position.
    • Stock 2x bolts will not work. You will need bolts like our 6mm bolts which are optimized for single ring mounting.
    • For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
        • Compatible with all 10-, 11-, and 12-speed chains except Shimano 12-speed chains.
        • If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
    • Chainline - varies - these rings can be mounted in either the big or small ring position on double cranksets. The most common mounting is in the big ring position because of chainstay clearance. The ring centerline is ~2mm from the ring's mounting face so they usually sit about 2mm closer to the frame than the stock big ring (depends on the stock ring)
    • Weight: 34T - 44g, 36T - 58g, 38t - 66g, 40t - 74g, 42t - 81g, 44t - 90g, 46t - 107g, 48t - 115g, 50t - 125g

    110 BCD - Asymmetrical Shimano:

    • These rings are for use with 110 BCD 5 arm cranksets.
    • Crank arm clocking arrow will be rotated 180 degrees from normal on cranksets that have 4 bolts visible and 1 hidden bolt behind the crank arm (SRAM).
    • Do NOT fit on the cranksets for Shimano DA 9000 / Ultegra 6800
    • Not compatible with Campy CX10/11.
    • Can be mounted in either the big or small ring position of a double crankset given chainstay clearance in the small ring position.
    • Stock 2x bolts will not work. You will need bolts like our 6mm bolts which are optimized for single ring mounting.
    • For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
      • Compatible with all 10, 11, and 12-speed chains except Shimano 12-speed chains.
      • If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
    • Weight: 34T - 44g, 36T - 58g, 38T - 66g, 40T - 74g, 42T - 81g, 44T - 90g, 46T - 107g, 48T - 115g, 50T - 125g

    130 BCD:

    • These rings are for use with 130 BCD 5 arm cranksets.
    • Do NOT fit on the cranksets for Shimano DA 9000 / Ultegra 6800
    • Not compatible with Campy CX10/11.
    • Sram Exogram cranksets with inset nut must use stock fifth bolt + spacer(s). The Force CX1 bolt features fifth bolt with 1X specific shoulder. This kit can be found online.
    • Can be mounted in either the big or small ring position of a double crankset given chainstay clearance in the small ring position.
    • 38T important note: The chain may contact the spider arm slightly when using the 38T chainring (see last photo in the product images).
      • We recommend filing a small chamfer on the spider arm but you can also just install it and let the chain do the work. This is only an issue with the 38T as the 130 BCD was designed for 39T smallest ring.
    • Stock 2x bolts will not work. You will need bolts like our 6mm bolts which are optimized for single ring mounting.
    • For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
        • Compatible with all 10-, 11-, and 12-speed chains except Shimano 12-speed chains.
        • If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
    • Chainline - varies - these rings can be mounted in either the big or small ring position on double cranksets. The most common mounting is in the big ring position because of chainstay clearance. The ring centerline is ~2mm from the ring's mounting face so they usually sit about 2mm closer to the frame than the stock big ring (depends on the stock ring)
    • Weight: 38T - 52g, 40T - 60g, 42T - 62g, 44T - 79g, 52T - 132g
