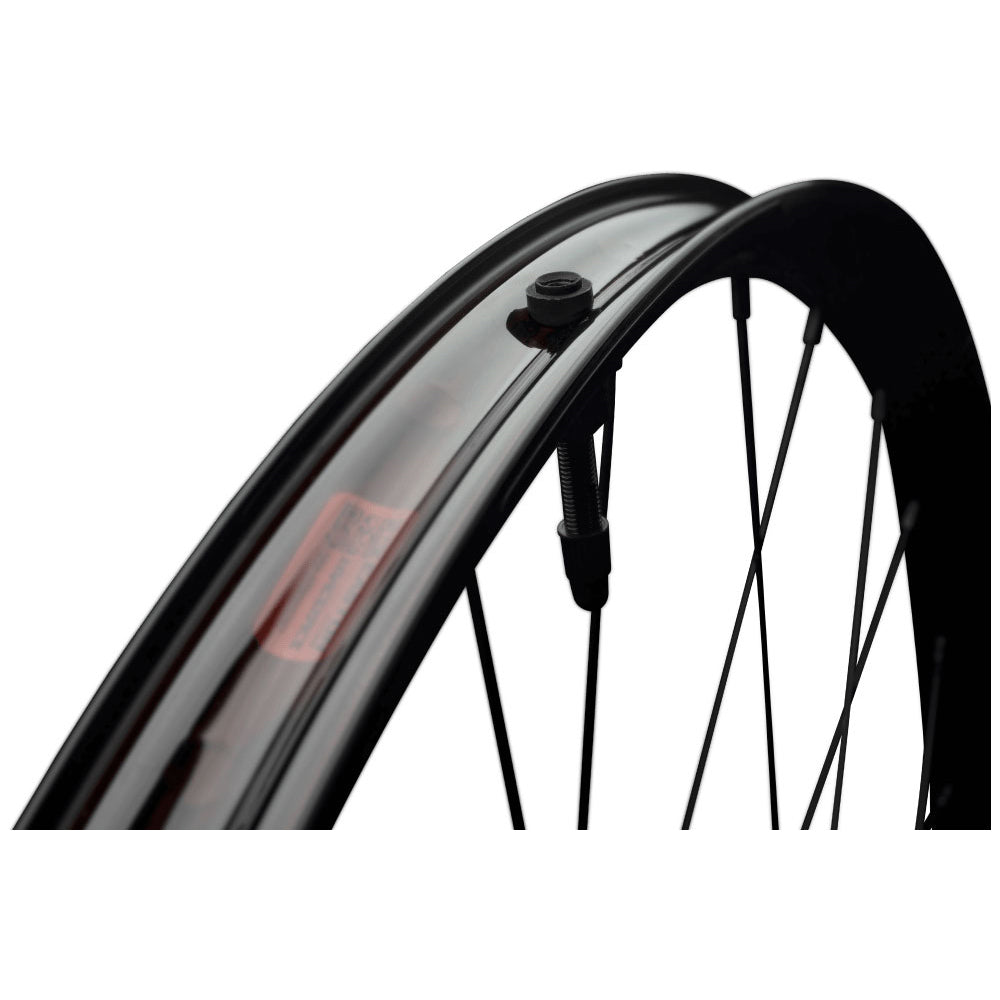

Race Face Aeffect R 30 Front Wheel

Race Face Aeffect R 30 Front Wheel

Brake Rotor Type:
6 Bolt
Hub Spacing:
15x110mm Boost
Internal Rim Width:
30mm
Rim Material:
Aluminium
Wheel Diameter:
27.5 Inch
Which Wheel:
Front
← More Options

Regular price $388.95
Regular price Sale price $388.95
Only 1 Left!
Tax included.

SKU:

Add to Wishlist

Made to handle all kinds of Enduro and all-mountain punishment, the burly, Aeffect R wheel sports a 30mm inner width and is born tubeless-ready. The rims are made from 6069 alloy with a 4.5mm offset spoke bed to provide spoke tension balance, increasing wheel stiffness and overall fatigue life.

The new Trace hub doesn't need flash or gimmicks. Highlights include durable cartridge bearings and a tough steel axle. This hub will get the job done, ride after ride.

Trace Hub:

  • Materials: Made from Aluminium.
  • Spoke hole count: 28 hole.
  • Bearing style/amount: Oversized 6902 bearings for better durability.
  • Axle: A tough steel axle.
  • Disc Mount: 6 bolt.

Rims:

  • Tubeless: Yes, the rims are tubeless-ready and even come with a tubeless rim strip and valve installed.
  • Rim Dimensions: The rim external width is 34mm, The internal width is 30mm. The rim is offset 4.5 mm.
  • Materials: Made with 6069 Alloy, for extra strength and durability.

Spokes:

  • Material: Stainless Steel. J-bend / Straight pull: They are butted J-bend spokes.

Nipples:

  • Material: Alloy nipples for lighter weight.

Race Face Aeffect R total wheel weight:

  • Individual wheel weights are not listed by Race Face but the total wheelset for 27.5" is 1290g and 29" is 2000g.

What's in the box:

  • 1x Race Face Aeffect R front wheel
  • 1x Rim Strip
  • 1x Tubeless Valve
