Praxis M30 PF30 Bottom Bracket
Praxis M30 PF30 Bottom Bracket
SKU:
| Threaded or Pressfit | Frame Fitment | Axle Size | Price | Add to Wishlist | ||
|
Pressfit | PF30 | M30 |
Regular price
$130.95
Regular price
Unit price
per
SKU: 854053003910
|
|
| Threaded or Pressfit | Frame Fitment | Axle Size | ID | ||
|
M30 PF30 Pressfit
|
Pressfit | PF30 | M30 | 40685522714669 |
Regular price
$130.95
Regular price
Unit price
per
|
Description
Praxis Works has been making precision MTB parts for years and they have a reputation for uncompromising quality standards and products that just work. The M30 crank spindle standard is exclusive to Praxis and is unique as it provides a 30mm ID drive-side bearing and a 28mm non-drive bearing.
The Praxis M30 PF30 bottom bracket allows you to fit a set of M30 cranks into your MTB that has a BB30 (42mm diameter) or PF30 (46mm diameter) 73mm-wide bottom bracket shell.
The ABEC5 sealed cartridge bearings are housed in heat-treated and machined aluminium bearing cups and the bearings are pre-loaded with a wave washer on the drive side.
Style: Thread Together Shell. Non-drive side cup is pressed in and the drive side cup threads into it for a secure and creak-free fit. A larger intermittent sleeve (included) is used to reduce your PF30 shell to 42mm for use on such frames.
Shell width: Designed for use with 73mm press-fit MTB shells in either PF30 (46mm) or BB30 (42mm) diameter
Spindle size (diameter): 30mm drive, 28mm non-drive Praxis M30 standard
Bearing style: ABEC5 sealed cartridge bearings
Bearing cup/shell material: heat-treated and machined aluminium
Installation tools:
- BB press for non-drive side cup
- Praxis M30 BB tools to thread in drive side cup.
Removal tools: Same as installation tools
Crank Compatibility: Compatible with Praxis M30 cranks only with a 30mm drive-side and a 28mm non-drive spindle diameter.

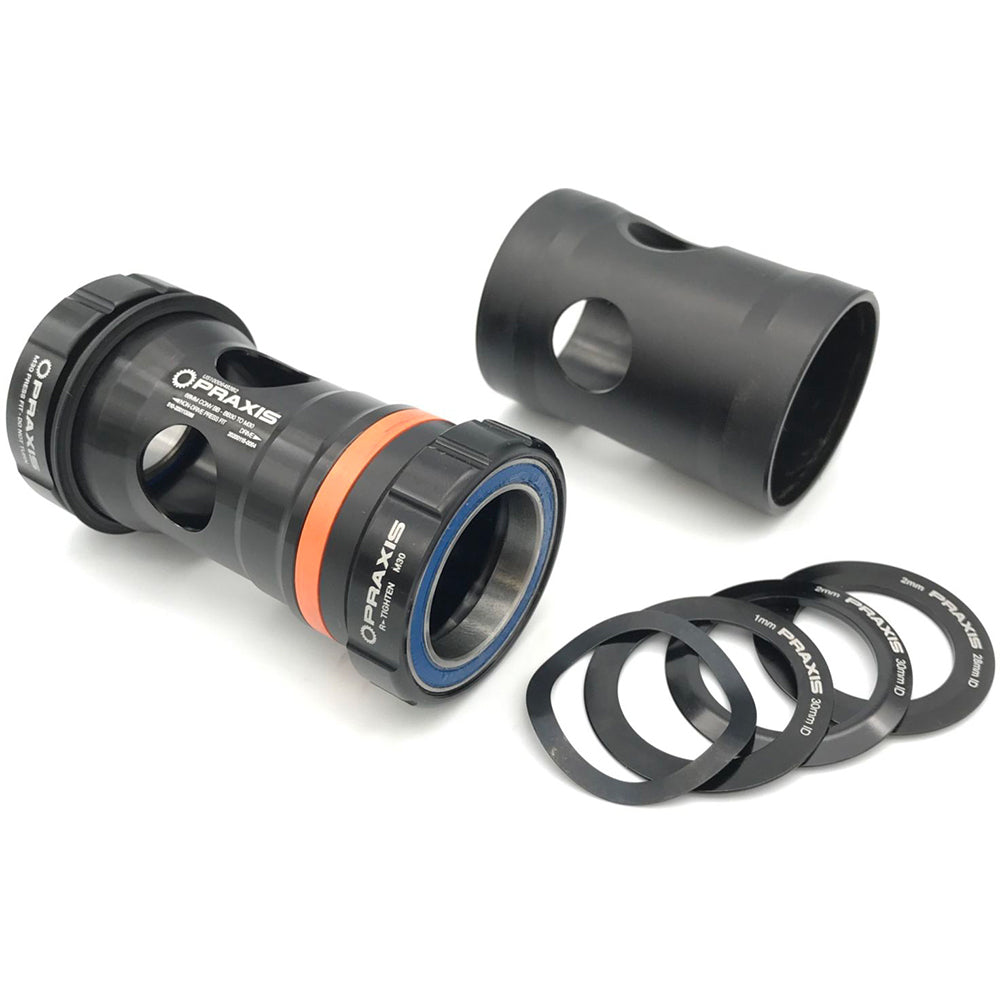

What's in the box: Non-drive cup and sleeve, drive-side cup, seal, wave washer and 3 x dust caps
