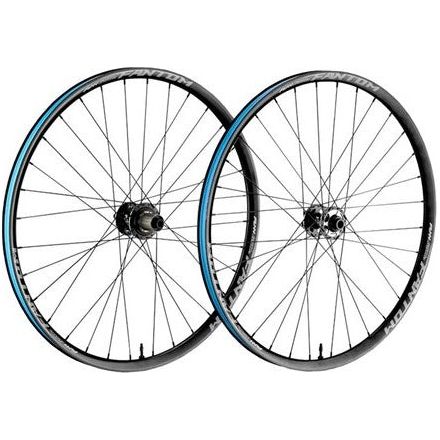

FUNN Fantom AM35 V2 Wheelset

Bombproof and lightning-fast wheels. New Improved V2.

The Fantom AM35 is for the trail and enduro riders. Designed to be lightweight and fast-rolling with a 35mm external/30mm internal width for the perfect balance of speed and control.

FUNN Fantom wheelsets are the complete package, pairing FUNN Fantom hubs and rims to create a lightweight, tough, and fast wheel for everything from downhill to trail to gravel. The wheels are available in 27.5 Inch and 29 Inch and Boost/Non-Boost.

The Fantom hub is precision-engineered from AL6061 with a quick-engagement 6 pawl and 102T design.

The Fantom rim is a bombproof and lightweight design, made from welded AL6066 with a sandblasted black anodised finish.

Fantom wheels are tubeless-ready and come supplied with tubeless rim tape and valves.

The updated AM35 rim is designed to be more durable and stronger than previous models. The new profile has been developed with the aim of improving the performance and reliability of the rim, ensuring that it can withstand the rigors of use on tough trails.

Specifications:

• Intended use: Trail/Enduro
• Tubeless-ready: Supplied with tubeless tape and 2 x valves
• Available sizes: 27.5 Inch/29 Inch
• Weight:
• 27.5 Inch: 1925g (Boost)/1895g (Non-boost)
• 29 Inch: 1995g (Boost)/1965g (Non-Boost)

• Spoke count: Front 32H/Rear 32H

Funn Fantom Rim

• Valve standards: Presta
• Axle standard front: 15x110mm
• Axle standard rear: 12x148mm
• Rim width external: 35mm
• Rim width internal: 30mm
• Rim depth: 23mm
• Rim eyelet: No
• Rim material: Welded 6066 Alloy
• Finish: Sandblasted Anodized Black
• ETRTO:
• 27.5 Inch: 584×35
• 29 Inch: 622×35
• ERD:
• 27.5 Inch: 557mm
• 29 Inch: 594mm

Funn Fantom Hub

• Engagement: Fantom 102T quick engagement
• Cassette body: Shimano HG/SRAM XD/Shimano Microspline
• Hub body: 6061 Alloy
• Compatibility: 100mm front/142mm rear hubs can be converted to QR standard.
• Cassette body is convertible between Shimano and SRAM standards.

Spokes

• Butting: Double-butted
• Spoke count: 32H each wheel
• Nipple: Brass
