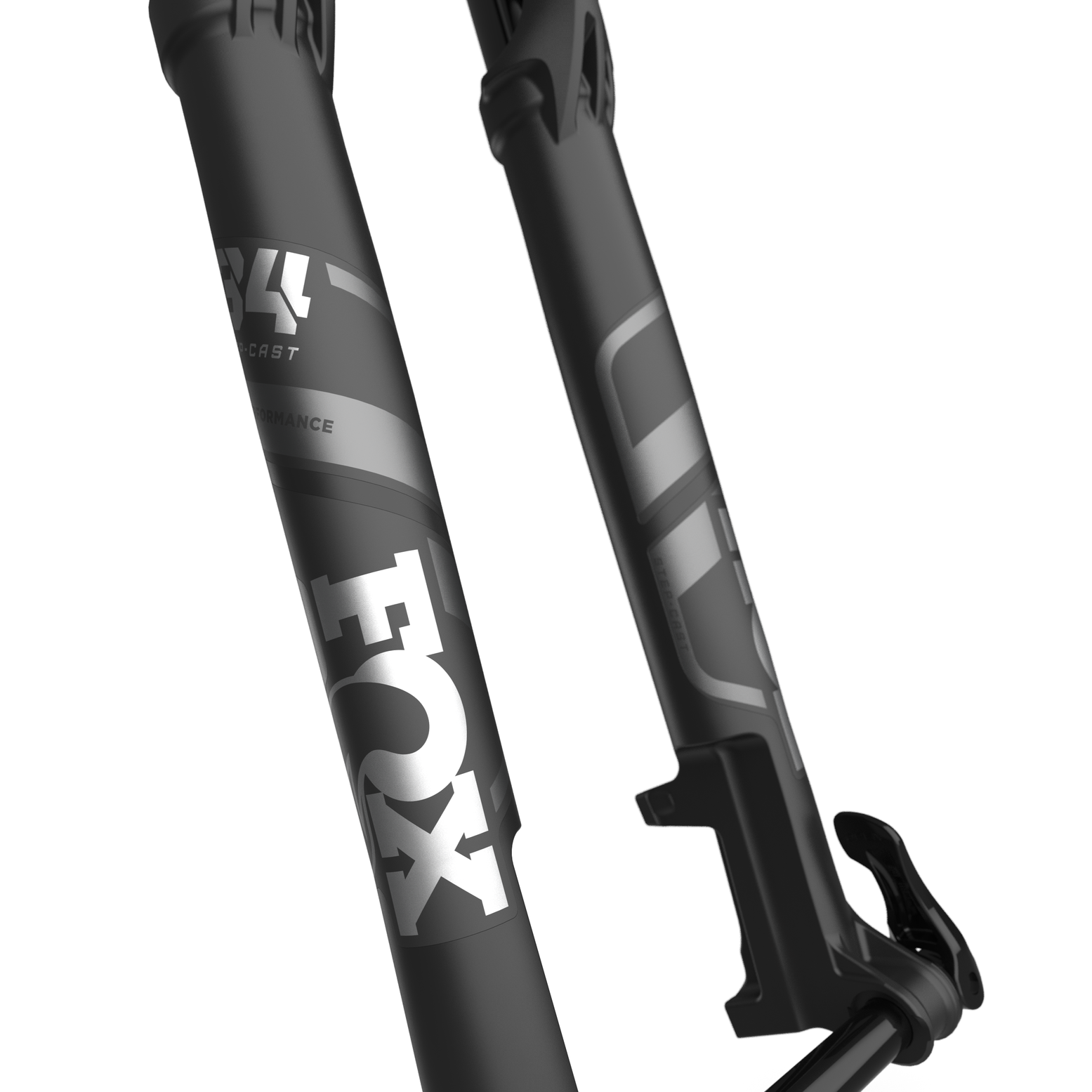

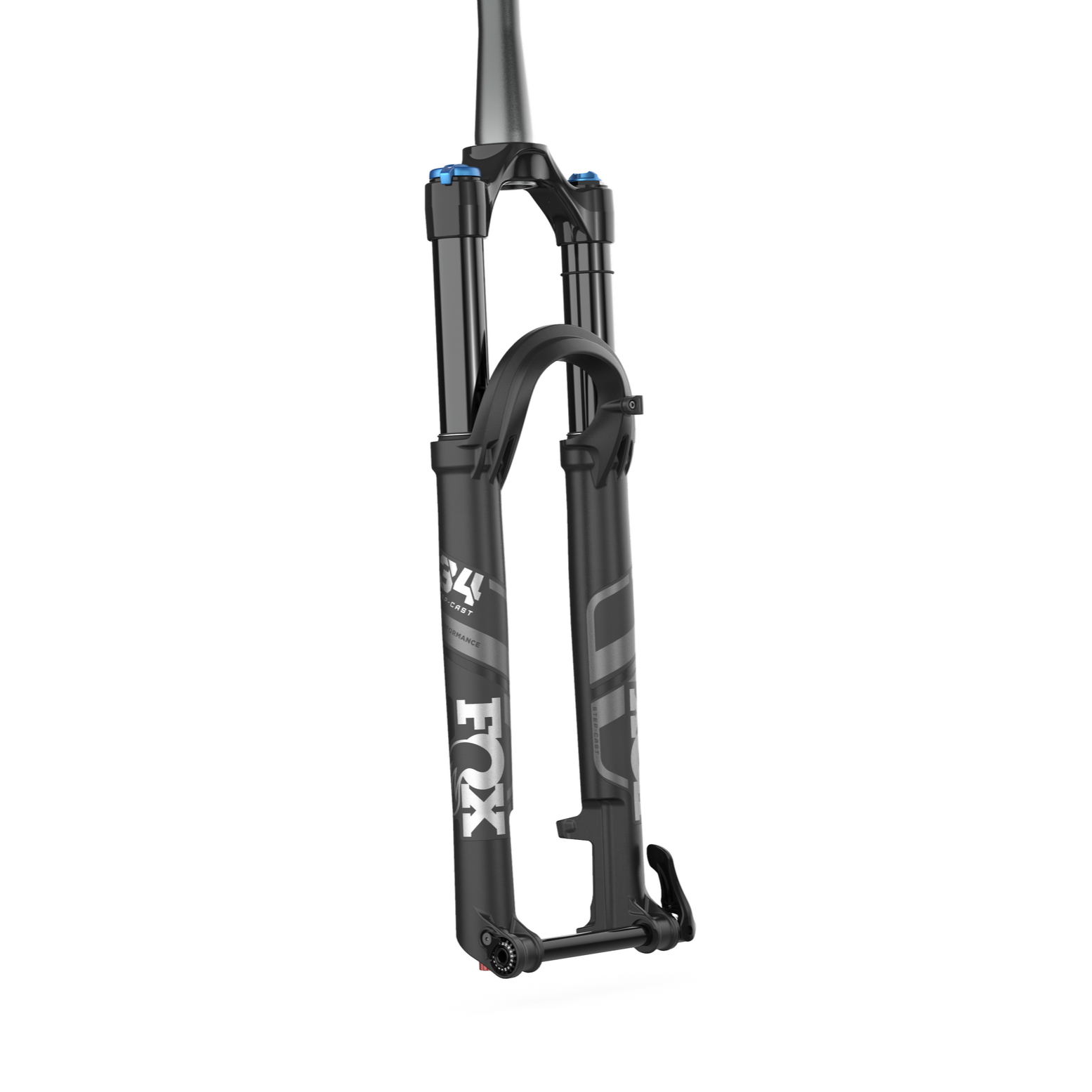

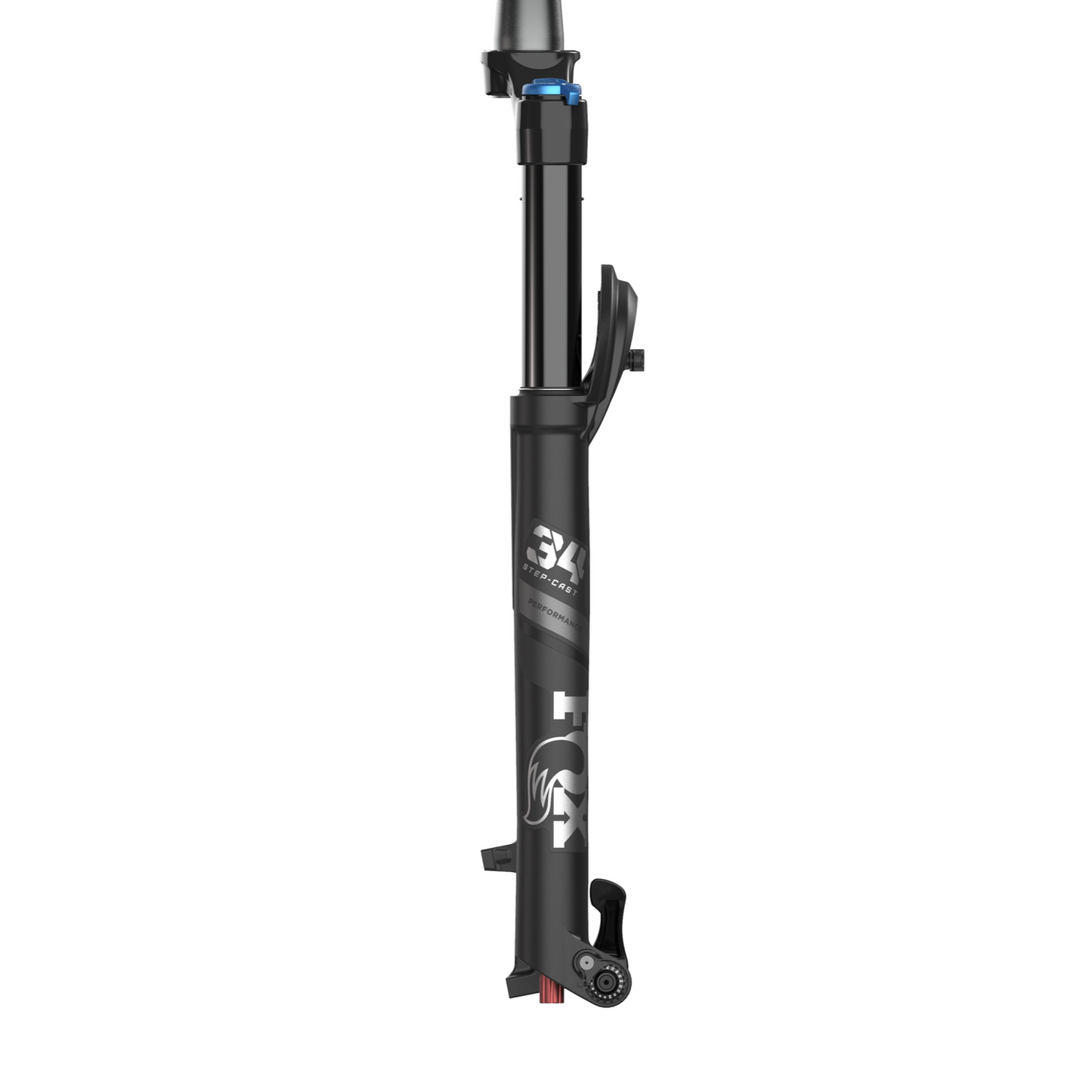

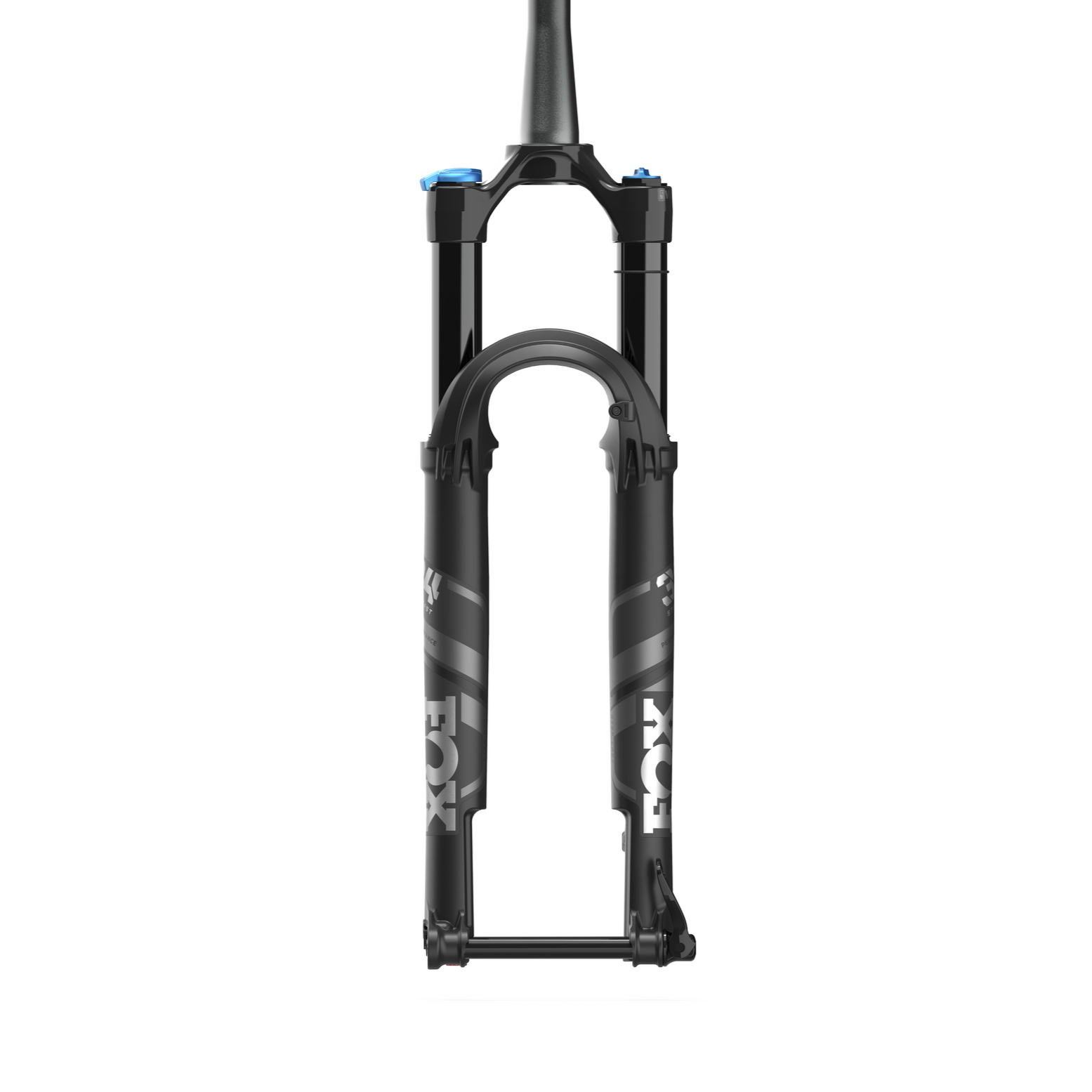

Fox Factory Fox 34 Float Step Cast Performance Series Fork - Matte Black
Fox Factory Fox 34 Float Step Cast Performance Series Fork - Matte Black
- Damper Details:

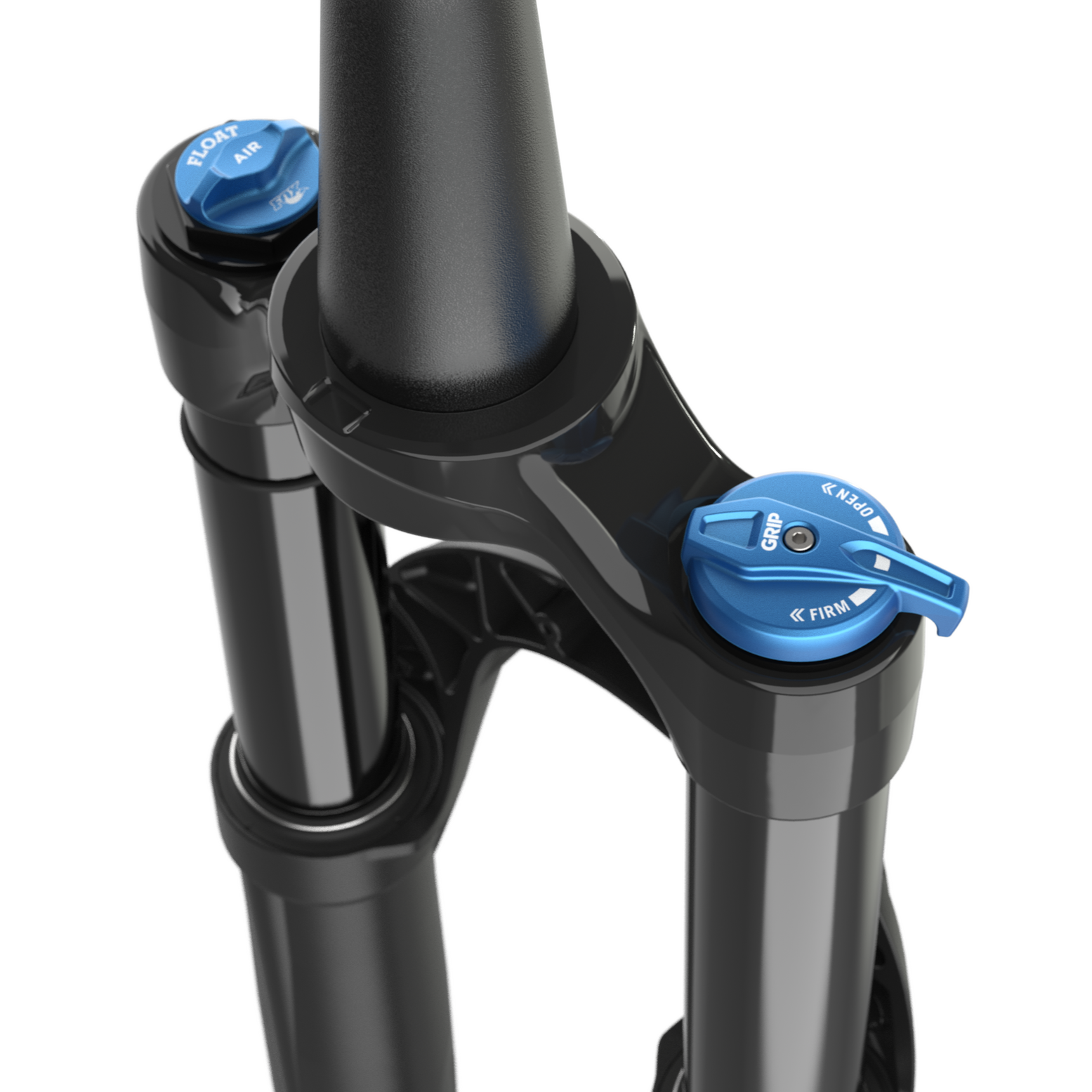

- Grip - 3 Pos
- Hub Fitment:
- 15x110mm Boost
- Amount of Travel:
- 120mm Travel
- Colour:
- Matte Black
- Fork Offset:
- 44mm
- Steerer Size:
- 1 1/8th - 1.5 Inch Tapered
- Wheel Fitment:
- 29 Inch
- Release Year:
- 2025
SKU:
Couldn't load pickup availability
TAILOR MADE FOR THE RIGORS OF MODERN XC RACING
The lightest 34 ever, the 34 Step-Cast is designed from the ground up to deliver uncompromising XC race performance with class leading tunability, chassis stiffness and strength.
LOWER LEG ARCH
The arch design is pairs perfectly with modern trail bikes, where head tube profiles have grown larger and fork offsets shorter. The 34 SC’s arch juts forward to provide ample headtube clearance at full compression. Countless engineering hours created an organic lower leg shape that optimizes stiffness with the absolute minimal amount of material.
KABOLT SL AXLE
The svelte new Kabolt SL thru-axle drops an additional 12g over Fox's standard Kabolt axle by eliminating the additional weight of an axle nut and decreasing the flange diameter.
Specifications
- Upper Tube Finish: Black Anodized
- Rotor Size: 160 direct Post Mount, Up to 180 compatible
- Air Spring: FLOAT EVOL
- Steerer: 1.5 Taper
- Starting Weight: 1422g (34SC, 29, F-S, 120, Grip SL, Kabolt SL)*
