DHX Factory Series Coil Shock

COIL PERFORMANCE FOR THE TRAIL AND BEYOND

Answering the prayers of riders seeking the ultimate in plush suspension, the new DHX brings coil-sprung, magic-carpet, trail smoothing performance in a wide range of configurations to the trails and beyond.

Specifications

• ALL-NEW chassis and damper
• High-flow main piston

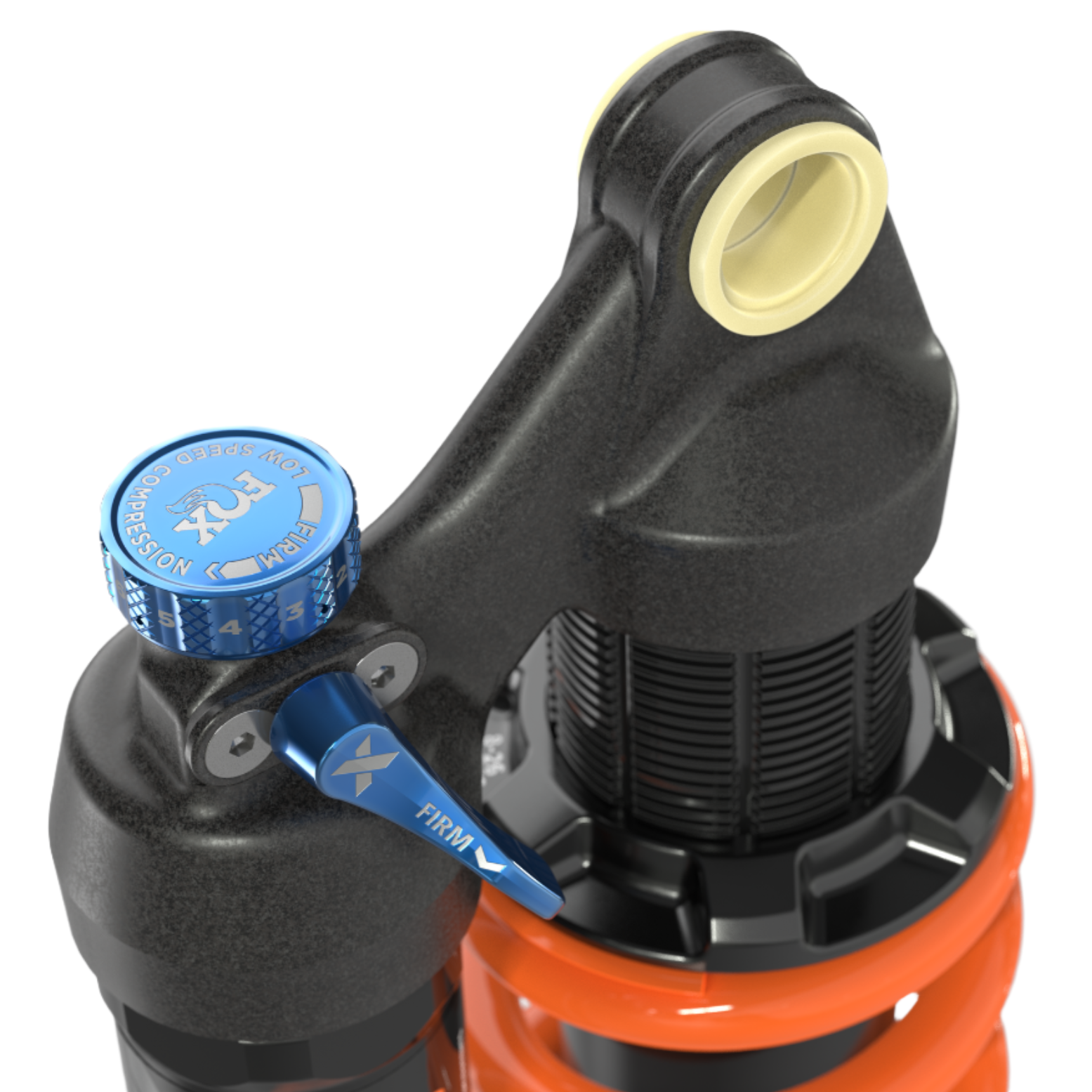

• Numbered Tool-free 12 position single-turn LSC (Low Speed Compression) adjuster
• Independent firm mode circuit – 2 position adjuster
• Optimized reservoir lengths per shock size
• Hydraulic top out feature
• Reduced damper noise
• MCU bottom out bumper
• Single-turn rebound adjuster with a variety of access modes (Tool-free, 3mm hex (direct access), 2mm hex or similar (side access)
• Spring preload collar with detents and max / min number of clicks and direction arrow
• Full diameter spring retainer with wire ring (like DHX2)
  Spring scuff guard on body (like DHX2)




Please note: The DHX is supplied WITHOUT spring and WITHOUT hardware.
