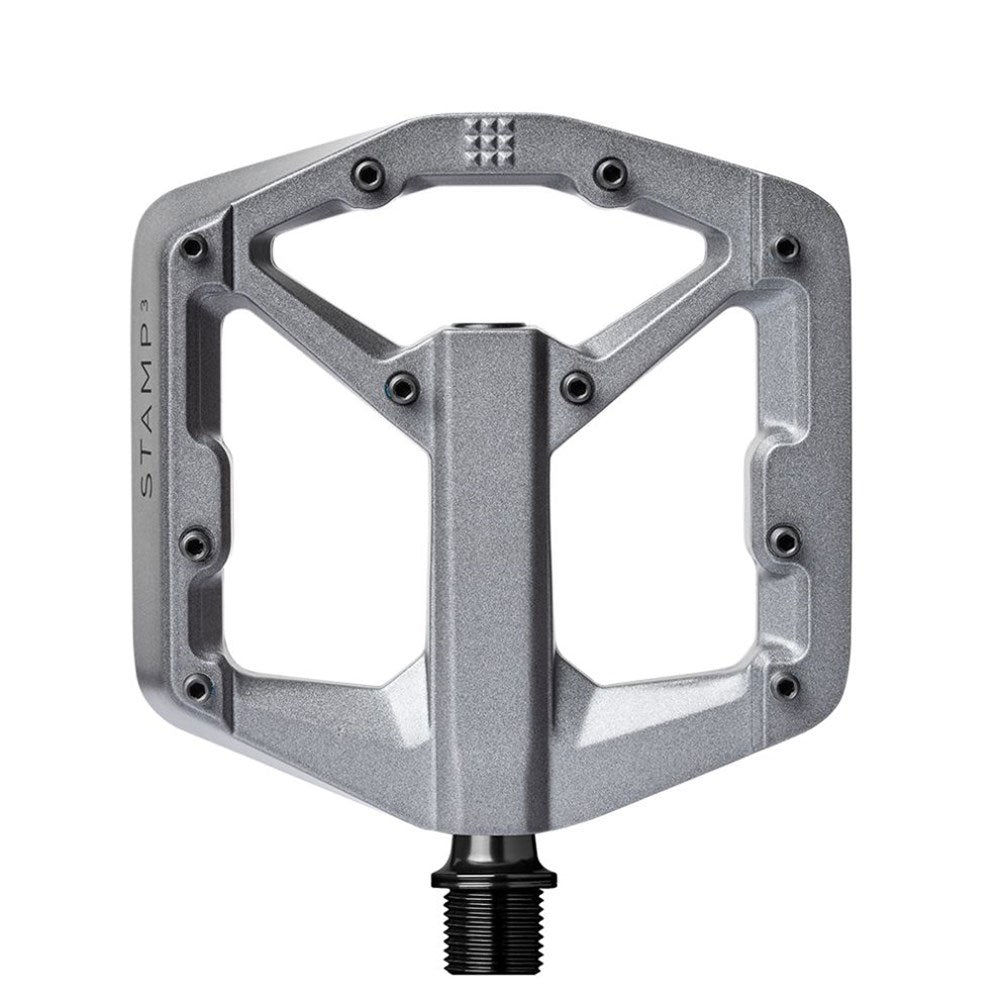

Stamp 3 Gen 2 Alloy Flat Pedals

These size specific magnesium platform pedals from Crank Brothers provide optimal shoe/pedal interface. Crankbrothers have analysed outsole profiles from the top mountain bike shoe brands and discovered two distinct surface areas to optimise the shoe/pedal interface for the entire range of shoe sizes. Riders' feet come in different sizes - so should their pedals.

Features

• Stamp 3 - Generation 2
• Internal seal prevents water and debris from entering the pedal
• Lab tested and ride proven in extreme conditions
• Premium inboard bearing performs in the most adverse conditions
• High wear resistance
• Vibration dampening
• Premium outboard bearing designed specifically for pedals
• Superior materials, grease, and sealing superior corrosion resistance
• Magnesium pedal body for weight reduction
• Optimal surface area
• Available in Large and Small sizes
• Concave pin profile
• 10 adjustable pins per side for grip
• Premium bearings & seal system
• Minimal profile 16mm thin
• Stamp Large recommended for shoe sizes: 10-15 (us) / 43-49 (eu)
• Stamp Small recommended for shoe sizes: 5-10 (us) / 37-43 (eu)

Specifications

• Footprint Large: 140mm x 111mm
• Footprint Small: 100mm x 100mm
• Body material: A380 Aluminium
• Double cartridge outer bearing
• Inner bearing type: Igus Bearing
• Forged SCM 415 Chromoly steel spindle
• Weight Large: 386g (Pair)
• Weight Small: 351g (Pair)
• 5 Year manufacturer's warranty
