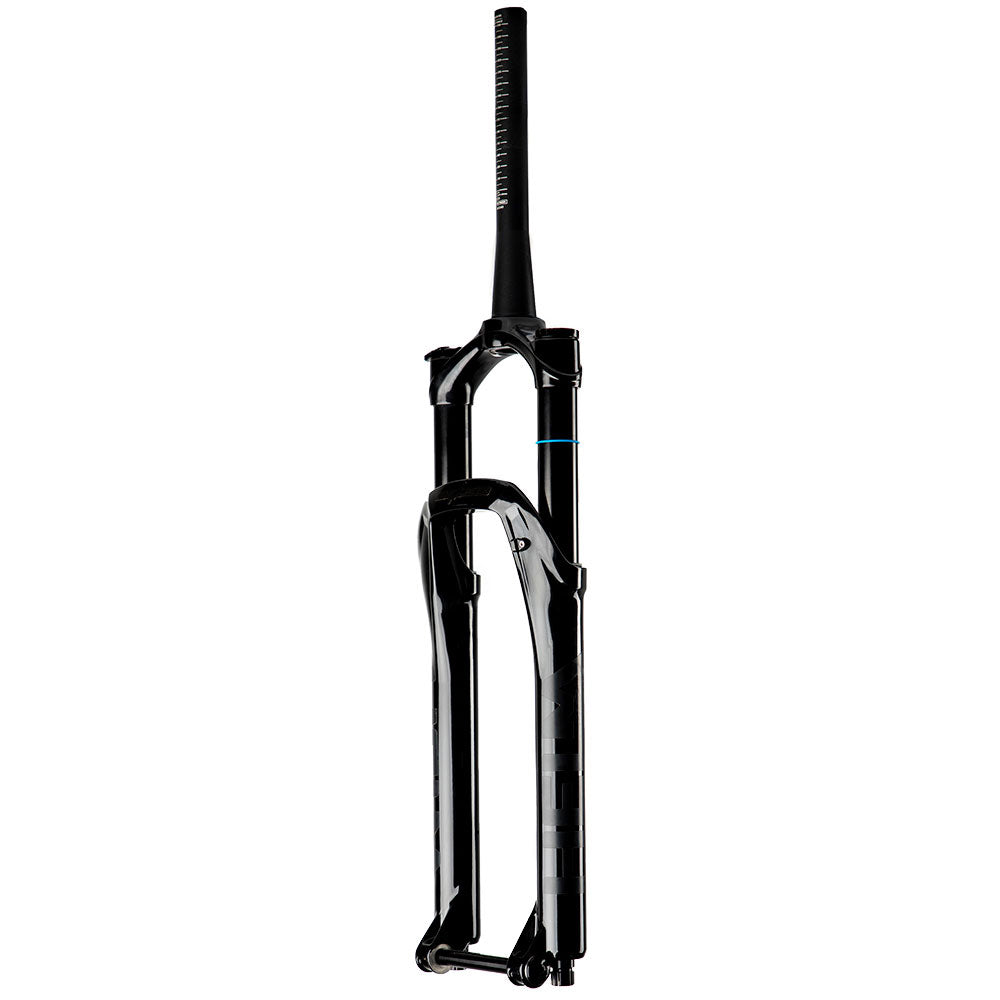

Cane Creek Helm Mark II Coil Sprung Fork

Cane Creek Helm Mark II Coil Sprung Fork

4.0
Rated 4.0 stars
1 Review

$1,696.95
$1,696.95

SKU:

Wheel Fitment Hub Fitment Amount of Travel Fork Offset Steerer Size Colour Damper Details Price Add to Wishlist
29 Inch 15x110mm Boost 160mm Travel 44mm 1 1/8th - 1.5 Inch Tapered Gloss Black MK II
$1,696.95
$1,848.00 $1,696.95
SKU: 840226099644
MK II
15x110mm Boost
160mm Travel
Gloss Black
44mm
1 1/8th - 1.5 Inch Tapered
29 Inch
$1,696.95
$1,848.00 $1,696.95

Description

The original Helm fork impressed many riders with its stiff chassis, supportive feel, and a host of innovative features. It was a fork that liked it rough and performed best at high speeds under hard-charging riders.

The Mark II retains many of the great features of the original Helm, but Cane Creek has tweaked, tuned, and improved the damper and internals to create a fork with the ideal balance of buttery smoothness and support.

The fork is available in both air and coil sprung versions. You are currently looking at the coil-sprung fork.

Features:
  • Lighter compression tune to improve sensitivity
  • New SKF low friction seals
  • 2.5wt Motorex damper oil with 11% lower viscosity
Who this for? The Helm is best suited for Trail/All Mountain riding and Enduro racing.

Spring type: This fork uses a coil spring. 55 lb Lightweight Coil Spring included from factory
35-45-55-65 lbs/in springs will be available aftermarket

Wheel size compatibility: Available in options to suit 29/27.5+ and 27.5" wheels.

Weight: 2340g (29 Coil)

Fork offset:
  • 29/27.5+ is available in 51mm and 44mm offset options.
  • 27.5" is available in 44mm offset only.
Axle to crown height: Measured at 160mm (varies according to set length of travel)
  • 29/27.5+: 573mm
  • 27.5": 553mm
Max tyre width:
  • 29/27.5+: 2.5"
  • 27.5": 3.0"
Suspension travel amount:
  • 29/27.5+: Internally adjustable between 130mm and 160mm
  • 27.5": Internally adjustable between 130mm and 170mm
Compression damper style technologies / adjustments: The MKII features a new compression and mid-valve circuit for increased support and control. A new SKF oil seal head and lighter weight damper oil reduce friction and provide a more supple ride-feel.
  • High-speed compression (10 clicks)
  • Low-speed compression (17 clicks)
Rebound damper technologies / adjustments:
  • Low-speed rebound (10 clicks)
Travel adjustability: Travel is internally adjustable in 10mm increments by adding or removing travel spacers. 2 Travel spacers included

Stanchion diameter: 35mm

Axle size and style: The fork uses Cane Creek's "D-Loc" axle system. 15mm Bolt-on thru-axle. 15mm x 110 BOOST spacing

Steerer tube standard: Standard 1.5" to 1 1 1/8" taper

Brake mount style: (and size): 180mm post mount

Brake rotor compatibility (minimum / maximum):
  • Minimum: 180mm
  • Maximum: Not stated.
