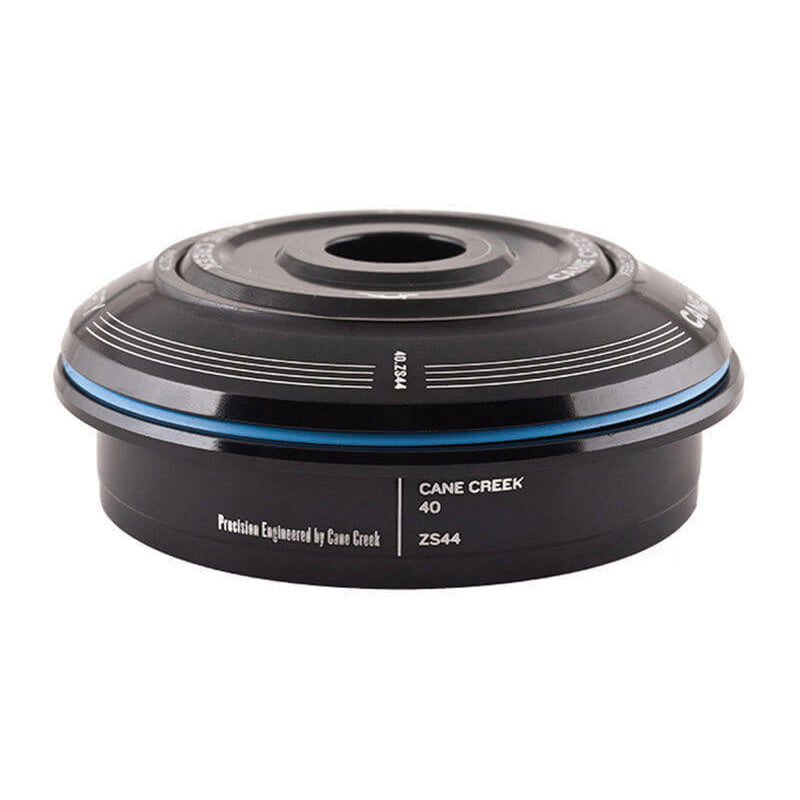

Cane Creek Forty Series Headset Top Assembly

Cane Creek Forty Series Headset Top Assembly

Colour:
Black
Upper Headset Fitment:
ZS44
← More Options
5.0
Rated 5.0 out of 5 stars
1 Review

Regular price $69.95
Regular price Sale price $69.95
Tax included.

SKU:

Add to Wishlist

Cane Creek's Forty Series is the workhorse of the range. Good quality, very reliable and very reasonably priced.

The Cane Creek top / upper headset assemblies feature:

  • CNC Machined, 6061 Alloy Cup
  • Captured Aluminium Compression Ring
  • Cane Creek Interlok Spacer compatible
  • Black Oxide Steel Bearing.
  • Top Cap, Bolt and Star fangled Nut are all included.

Available options:

EC34/28.6 is Cane Creek Part Number BAA0083K. Made for frames with a 34mm Inner Diameter and 1 1/8th steerer Tubes.

  • Technical Description: EC34/28.6/H16/K
  • Top Type: EC - External Cup
  • Top Head Tube Inside Diameter: 33.95mm
  • Stem Clamp Dia. 28.6mm
  • Top Stack Height: 16mm
  • Top Bearing Type: Black Oxide, Sealed
  • Material: 6061
  • Weight: 50g

IS41/28.6 is Cane Creek Part Number BAA0081K. This is a drop fit or integrated headset top half. There is no cup, the bearings simply "drop" into the frame. For 1 1/8th steerers.

  • Technical Description: IS41/28.6/H9/K
  • Top Type: IS - Integrated
  • Top Head Tube Inside Dia. 41.1mm
  • Stem Clamp Dia. 28.6mm
  • Top Stack Height: 9mm
  • Top Bearing Type: Black Oxide, Sealed
  • Material: 6061
  • Weight: 37g

IS42-28.6 Campy - Italian is Cane Creek Part Number BAA0094K. This is a drop fit or integrated headset top half. There is no cup, the bearings simply "drop" into the frame. For 1 1/8th or tapered steerers.

  • Technical Description: IS42/28.6/H9/K
  • Top Type: IS - Integrated
  • Top Head Tube Inside Dia. 42mm
  • Stem Clamp Dia. 28.6mm
  • Top Stack Height: 9mm
  • Top Bearing Type: Black Oxide, Sealed
  • Material: 6061
  • Weight: 34g

ZS44/28.6 is Cane Creek Part Number BAA0080K. It's designed to go into frames with an internal diameter of 44mm. And accepts 1 1/8th or Tapered steerers.

  • Technical Description: ZS44/28.6/H8/K
  • Top Type: ZS - ZeroStack
  • Top Head Tube Inside Dia. 44.00mm
  • Stem Clamp Dia. 28.6mm
  • Top Stack Height: 8mm
  • Top Bearing Type: Black Oxide, Sealed
  • Material: 6061
  • Weight: 44g

ZS49/28.6 is Cane Creek Part Number BAA0078K. It's designed to go into frames with an internal diameter of 49mm. And accepts 1 1/8th or Tapered steerers.

  • Technical Description: ZS49/28.6/H8/K
  • Top Type: ZS - ZeroStack
  • Top Head Tube Inside Dia. 49.61mm
  • Stem Clamp Dia. 28.6mm
  • Top Stack Height: 8mm
  • Top Bearing Type: Black Oxide, Sealed
  • Material: 6061
  • Weight: 57g

If you'd like more information on which headset you need, check out our Headsets blog here
