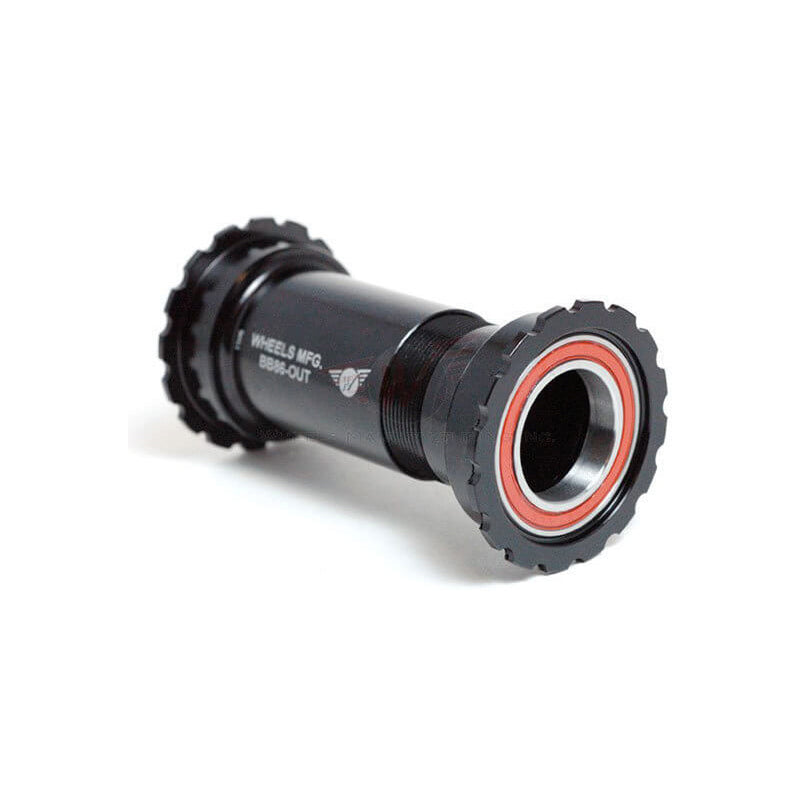

BB86 - BB92 Threaded Bottom Bracket

Want to rid yourself of the debilitating press fit creak? We have the solution!

Wheels Manufacturing in collaboration with Enduro Bearings, have come up with the genius idea to use to alumium threaded cups. By allowing these cups to thread into each other, you're effectively locking the bottom bracket into your frame instead of relying on a tolerance fit.

Installation requires an oversized 48.5mm 16 notch bottom bracket tool.

Bearings are completely replaceable, so this will be the last bottom bracket assembly you'll ever need to buy!

Compatibility:

Frame - Fits into a 41mm Non-Threaded Bottom Bracket Shell. This can be called either Press Fit, BB86 or BB92

Cranks - If you have a straight 24mm spindle on your cranks choose the Shimano option. (also fits some FSA, Raceface and more)

- If you have a stepped axle from 24mm down to 22mm, choose the SRAM GXP option. (also fits Truvativ and some FSA Mega Exo)

Bearing options:

Standard Bearings - These run Enduro ABEC 3 Sealed bearings. High precision balls are within 10/1,000,000" round. Races are hardened to R-62 and polished to a mirror finish with ABEC 3 certification for tolerance and noise.

AC Bearings - Angular Contact Bearings - Made by Enduro, these are specifically designed for Hub or BB applications. A standard radial bearing will typically only have 3 or 4 bearings making contact under load. While Angular Contact bearings ensure that all balls are engaged. This spreads the load over a larger surface area and decreases friction and minimises wear. The balls in AC bearings are withing 5/1,000,00" round. This is military specification. They also have Nylon and Graphite ball retainers that are virtually frictionless and the bearings are filled with Rheolube - a special synthetic grease formulated in the USA. LLB Dual lip groove seals on the bearings ensure they remain clean and working at their best. There is also an additional dual lipped seal on both sides on the outside of the bearing (not pictured) for ultimate protection.
