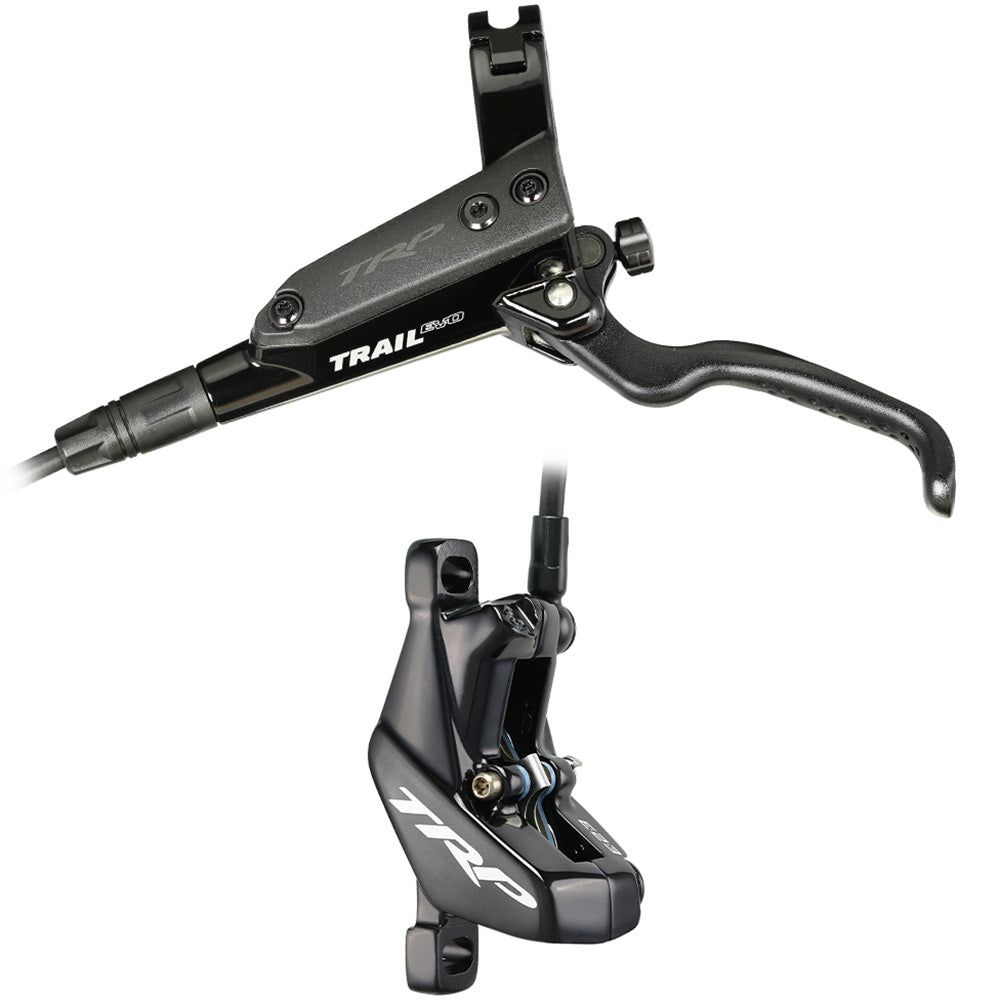

Trail Evo Disc Brake

Working with the world’s best downhill riders has allowed Tektro to develop top-level braking performance. When designing the all-new Trail EVO they wanted to create a brake system for the specific needs of modern mountain bikes. With the added speed and potentially weight from an electric motor and battery, these bikes will typically generate more heat than a typical mountain bike. The Trail EVO system combines the latest technology in braking with existing technology developed on the World Cup Downhill race circuit. The result is not a rebranded downhill brake rather a system that will meet the unique needs of today’s electric mountain bikes.

Overall rotor thickness was increased from 1.8mm to 2.3mm which decreases the operating heat of the brake system by 8% and reduces rotor warping (lateral deformation) by 47%. This means with the new 2.3mm thick rotors, riders won’t be glazing pads or overheating the brakes under the added stress of an electric mountain bike as they would with other brake systems.

When designing the 2.3mm specific caliper, material was added to key areas increasing overall stiffness and heat management. This new caliper also received an open top design allowing pads to be inspected or changed without requiring riders to lift a heavy E-MTB to remove the wheel. The E-MTB was topped off with new lever body design to shave weight. However, our renowned Aaron Gwin designed lever blade ensures TRP’s signature modulation would remain unchanged.

Lever:

• Ergonomic lever blade
• 10mm internal brake lever piston
• Adjustable lever reach
• I-Spec II compatible
• I-Spec EV adapter option
• TRP and MMX shifter adapter available
• Hinged lever clamp
• Matte black finish

Caliper:

• Optimized hydraulic flow
• Stainless steel pistons
• 5mm brake hose
• Made for 2.3mm thick rotors
• Top loading pad design
• New resin brake pad
• Banjo hose connection
• Newly formulated mineral oil
• Matte black finish

Weight: 307g (Front without rotor and adapter)
