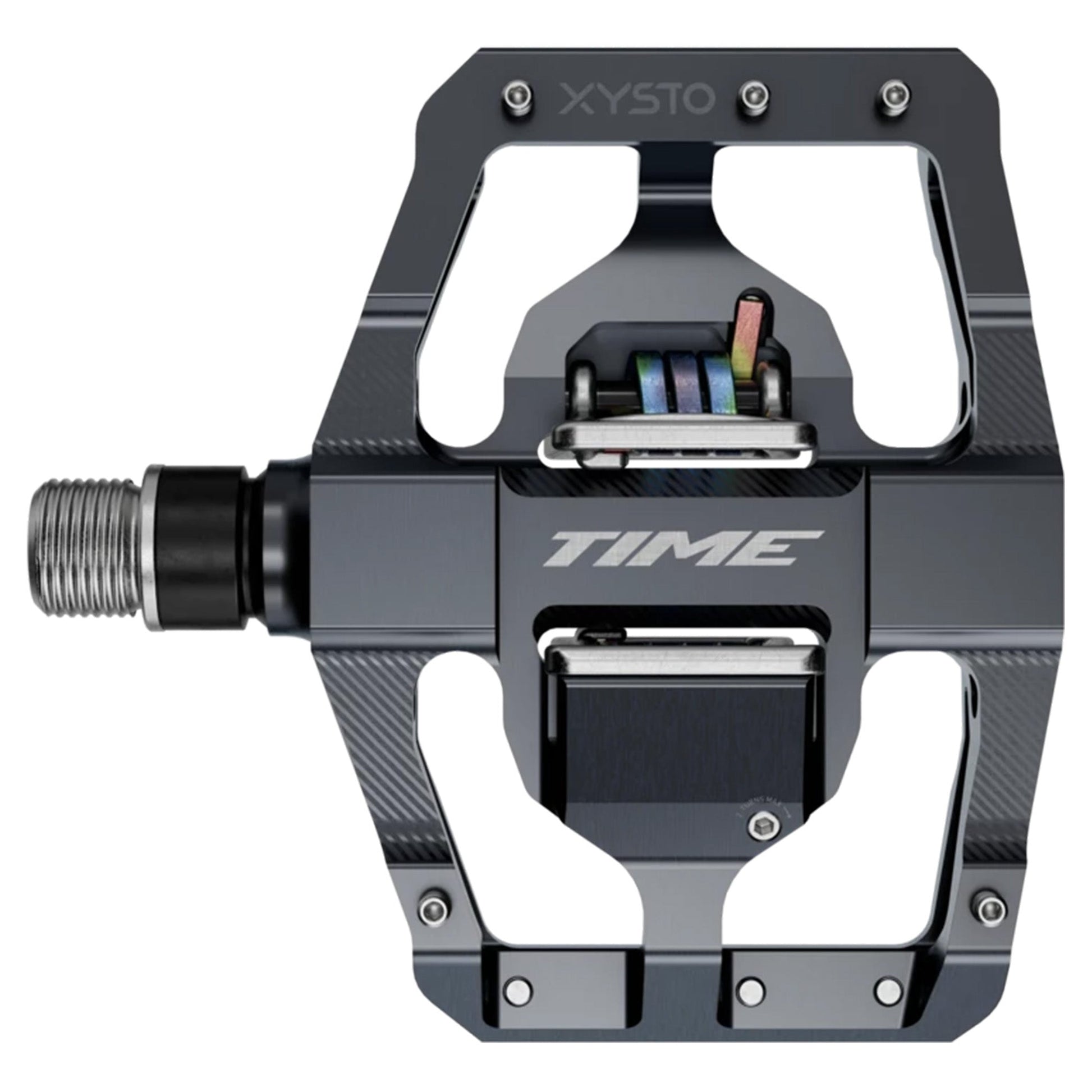

XYSTO Pedals

Inspired by the xisto stone villages and trails found near their facility in Portugal, the TIME XYSTO (pronounced 'She-stoh') is a robust full-bodied pedal system designed for the modern DH, Enduro, and aggressive off-road rider. Customisable grip pin placement allows the pedal to adapt to the rider, not the other way around. Their proven ATAC Technology clears dirt and debris upon entry and allows for natural foot movement.

Specifications

• Axle Component: Steel axle
• Bearings: Steel
• Body component: 6106 T6 - Aluminium
• Cleats: ATAC cleats
• Pedal stack height: 18.3mm
• Angular freedom: 5° to -5°
• Contact surface area: n/a
• Distance pedal spindle / crank arm: 57mm
• Lateral freedom: 2.5 mm or -2.5 mm
• Release angle: 10° with ATAC Easy cleats, 13 or 17° with ATAC cleats
• Tension: Micro adjustment
• Threading: 9/16 - 20 inch
• Platform Size: X-Large (79 X 94 mm)
• Colour (Pedal): Dark Grey
• Accessories: ATAC CLEATS AND 20 GRIP SCREWS
• Intended use: Gravity
• Power Measurement: Not Compatible
• Weight (per pedal): 226g

Features

• Extra-large 79x94mm platform provides additional support and control
• Asymmetrical design fits the natural shape of your sole
• Customisable grip pin placement
• Adjustable release tension
• ATAC design clears mud and debris every time you clip in
• Easy engagement and performance in all condition
• Model ID: PD-XYS-A1
• Dark Grey alloy anodised platform
• 57mm spindle length
• 226g per pedal
• 13/17° cleats included with pedals. Optional Cleat is the 10 degree Easy Cleat (sold separately)
• Xysto pedals ridden to victory by Erice Van Leuven at 2024 UCI Junior World DH Championships
• Made in-house in their Coimbra, Portugal facility
• Model ID: PD-XYS-A1
