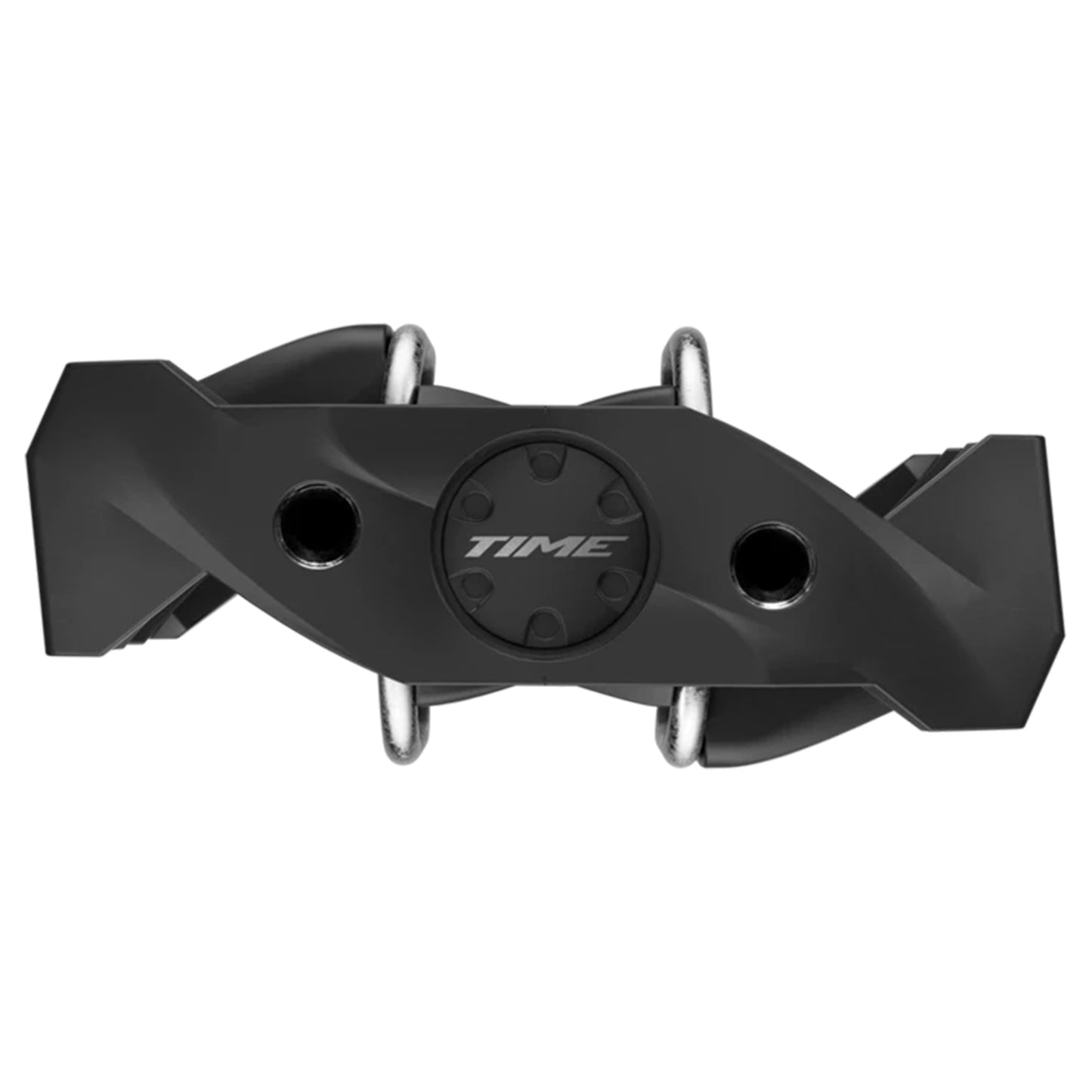

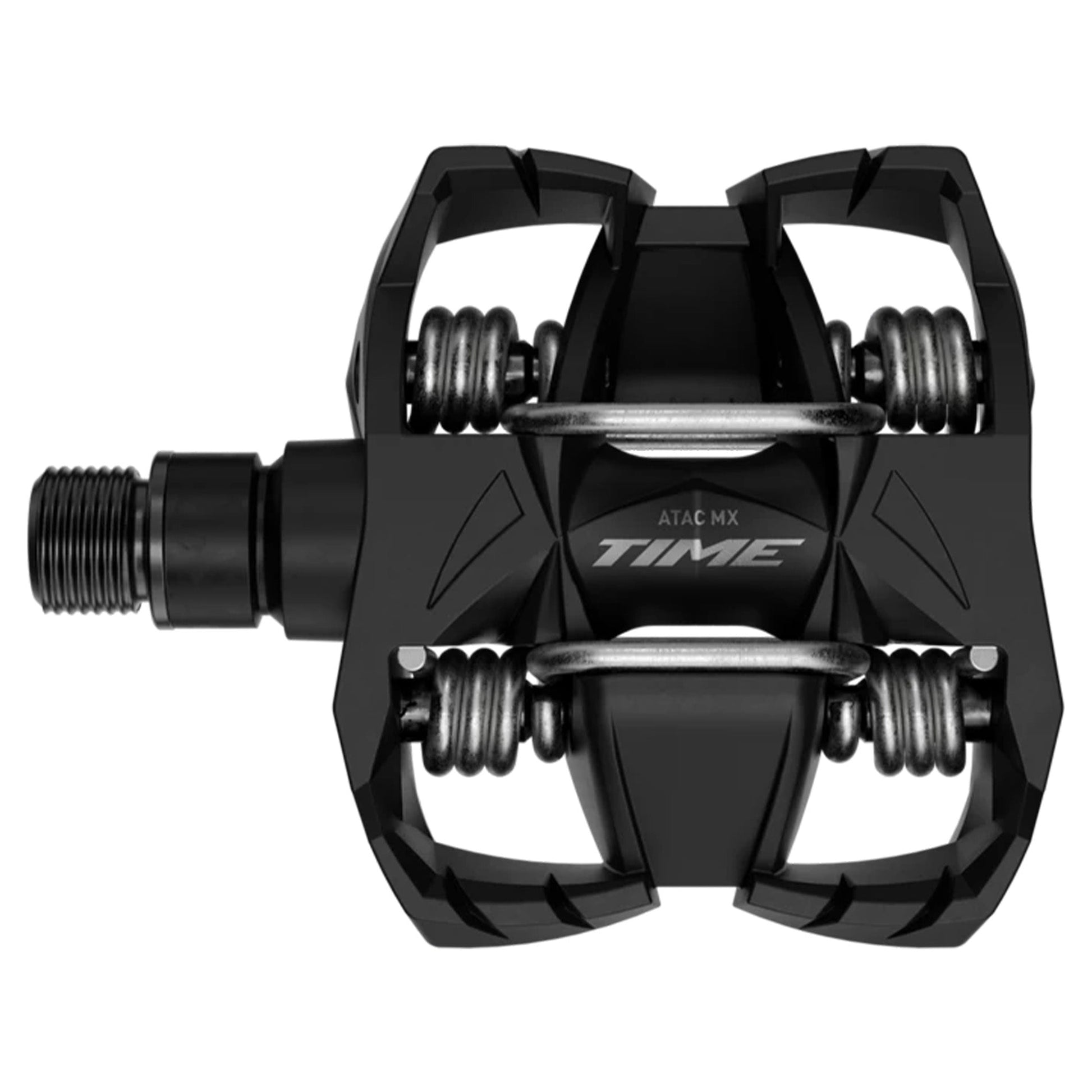

MX ATAC C1 Pedals

Light and ergonomic, the MX is the perfect pedal for all types of mountain biking. With its hollow, steel axle, it is rugged enough for any trail condition. TIME's proprietary ATAC system makes clipping-in super easy, secure, and comfortable. The MX also is self-cleaning, with the ATAC system clearing mud or debris away every time you step in. And by swapping the cleats, you have two release angle options (13º or 17º) along with a self-cleaning design that means you'll always be able to clip in – even in the muddiest of conditions.

Specifications

• Axle Component: Steel axle
• Bearings: Steel
• Body component: Glass-filled
• Cleats: ATAC Easy cleats
• Pedal stack height: 18.1mm
• Angular freedom: 5° to -5° with free cleats, 0° with fixed cleats
• Contact surface area: n/a
• Distance pedal spindle / crank arm: 54mm
• Lateral freedom: 2.5 mm or -2.5 mm
• Release angle: 10° with ATAC Easy cleats, 13 or 17° with ATAC cleats
• Tension: n/a
• Threading: 9/16 - 20 inch
• Platform Size: n/a
• Colour (Pedal): Black
• Accessories: ATAC Easy cleats
• Intended use: Enduro
• Power Measurement: Not Compatible
• Weight (per pedal): 192g

Features

• Light and durable trail pedal.
• Easy in or out of cleat.
• Freedom of movement lateral and angular.
• Designed for rugged adventure.
• Cleats included with all pedal purchases.
• Model ID: PD-MX-C1
