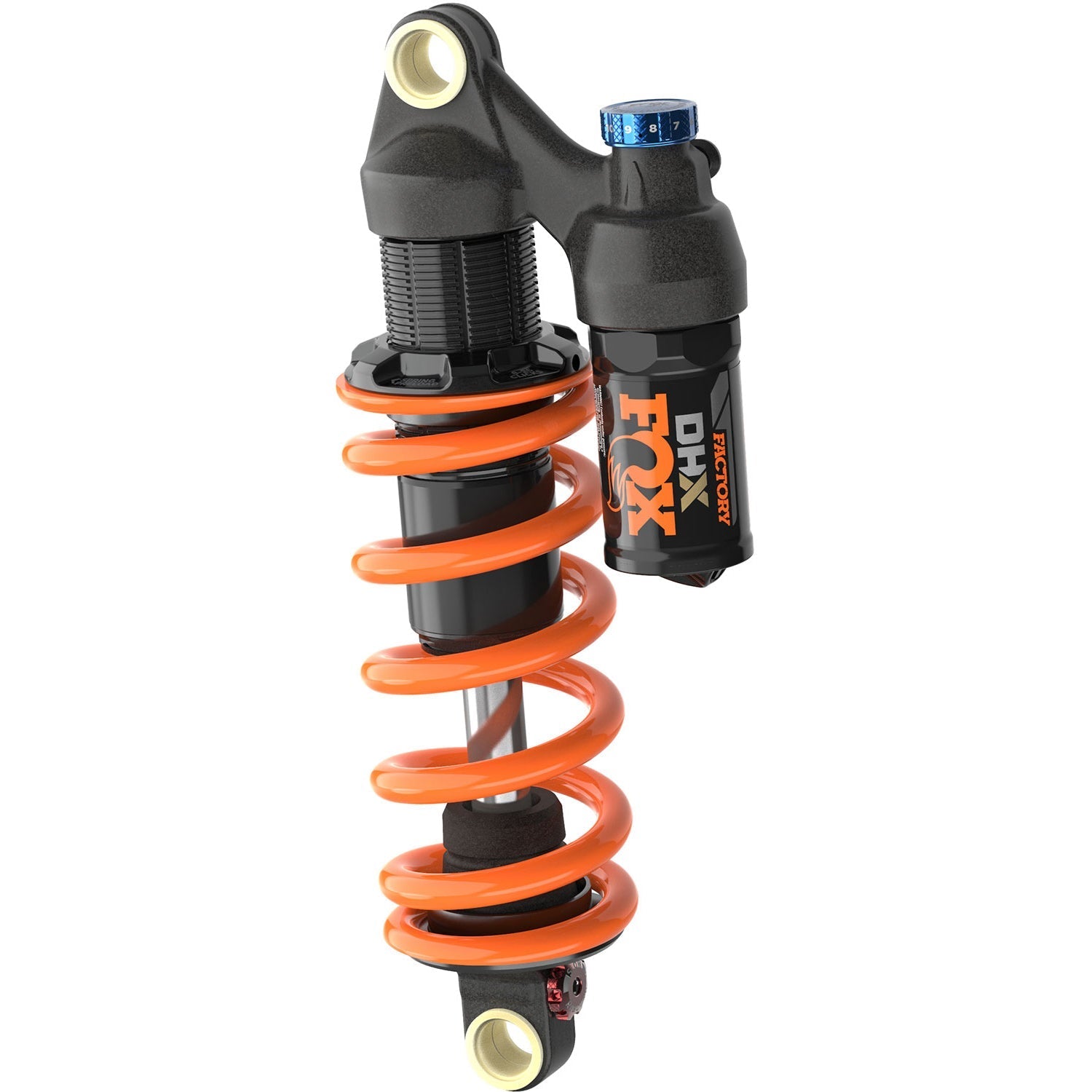

Fox DHX Factory Series Coil Shock

Answering the prayers of riders seeking the ultimate in plush suspension, the new DHX brings coil-sprung, magic-carpet, trail-smoothing performance in a wide range of configurations to the trails and beyond.

Who is this for: The DHX is for riders with a gravity focus that wants the ultimate in traction and plush suspension performance in a trail-friendly package. It's best suited for use on hard-hitting Trail and Enduro bikes.

Spring type: This is a coil spring shock.

Compression damper adjustments:

• Independent 2 Position Open/Firm Lever
• Low-Speed Compression: 11 clicks

Rebound damper adjustments:

• Low-Speed Rebound: 16 clicks

Features:

• All-New chassis and damper
• High-flow main piston
• Numbered Tool-free 12 position single-turn LSC (Low-Speed Compression) adjuster
• Independent firm mode circuit – 2 position adjuster
• Optimised reservoir lengths per shock size
• Hydraulic top out feature
• Reduced damper noise
• MCU bottom out bumper
• Single-turn rebound adjuster with a variety of access modes (Tool-free, 3mm hex (direct access), 2mm hex or similar (side access)
• Spring preload collar with detents and max/min number of clicks and direction arrow
• Full diameter spring retainer with wire ring (like DHX2)
• Spring scuff guard on the body (like DHX2)

Pros: All the traction and plushness of a coil shock in a pedal-friendly package that won't punish you too much on the climbs.

Cons: Doesn't have the high-speed compression and rebound adjustments found on its bigger brother, the DHX2.

Please note: The DHX is supplied WITHOUT spring and WITHOUT hardware.
