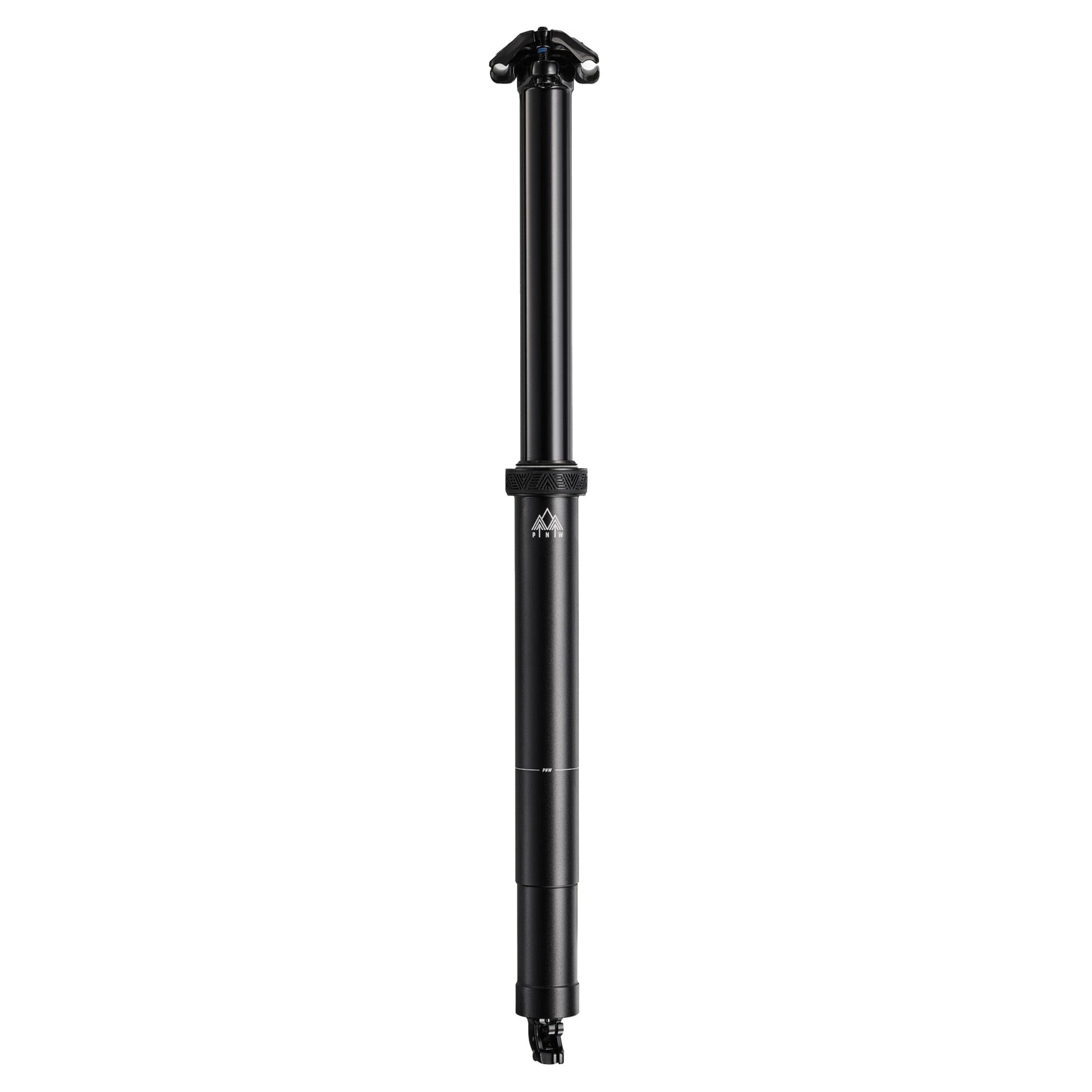

PNW Loam Gen 2 Dropper Post

Entering the next level of Loam. Reengineered for rugged climbs and technical descents, the next-generation of the Loam dropper takes their renowned reliability to new highs...... and lows. Additional sizes and a lower stack height provide a modern fit for you frame and more room to move with less saddle in your business. A sealed dual-chamber PNW cartridge delivers quiet and smooth fast action with a rock solid, simple to service design.

An updated saddle clamp and slimmed-down midcap shaves off one gummy bear to 2 oreos worth of stack height making room for more travel on more bikes. A sealed dual-chamber cartridge delivers smooth, quiet actuation, while a revamped travel adjust design offers a stronger, longer-lasting setup.

New 175mm and 225mm travel options.

Specifications

• Cartridge: PNW Dual-chamber sealed
• Routing: Internal
• Diameters: 30.9mm, 31.6mm, 34.9mm
• Setback: 0 degree
• Weight: 425g-700g (depending on size)
• Travel: 125mm, 150mm, 175mm, 200mm & 225mm
• Stanchion Diameter: 30.9 & 31.6mm: 26mm; 34.9mm: 29mm
• Lever compatibility: Compatible with all PNW levers and most cable-actuated levers from other brands
• Travel Adjust: 25mm of tool-less travel adjust in 5mm increments allows riders to hit every 5mm increment between 100 and 225mm

Travel Options

• 125mm: Seat Collar to Centre of Rails 156, Total Length 382, Min. Insertion Length 90, Full Insertion Length 226, 30.9 Weight 452, 31.6 Weight 470, 34.9 Weight 516
• 150mm: Seat Collar to Centre of Rails 181, Total Length 435, Min. Insertion Length 120, Full Insertion Length 254, 30.9 Weight 490, 31.6 Weight 510, 34.9 Weight 556
• 175mm: Seat Collar to Centre of Rails 206, Total Length 485.5, Min. Insertion Length 120, Full Insertion Length 279.5, 30.9 Weight 524, 31.6 Weight 544, 34.9 Weight 596
• 200mm: Seat Collar to Centre of Rails 231, Total Length 537.5, Min. Insertion Length 150, Full Insertion Length 306.5, 30.9 Weight 560, 31.6 Weight 580, 34.9 Weight 636
• 225mm: Seat Collar to Centre of Rails 256, Total Length 600, Min. Insertion Length 190, Full Insertion Length 344, 30.9 Weight 614, 31.6 Weight 636, 34.9 Weight 700

Frequently Asked Questions

• What is the Tool-Less Travel Adjust system? This system allows you the maximum drop for your post size. We accomplish this through a notched bushing under the midcap collar so you can dial in a more tailored fit. The Gen 2 tool-less travel adjust has an updated shape and burlier design for enhanced durability. 25mm of tool-less travel adjust in 5mm increments allows riders to hit every 5mm increment between 100mm and 225mm.
• How often do I need to service the post? As riding frequency and conditions vary, we do not have a strict service interval. Instead, we recommend servicing your post if it starts to feel sticky/slows down. When it does come down to service it is a quick and easy, at home process.
